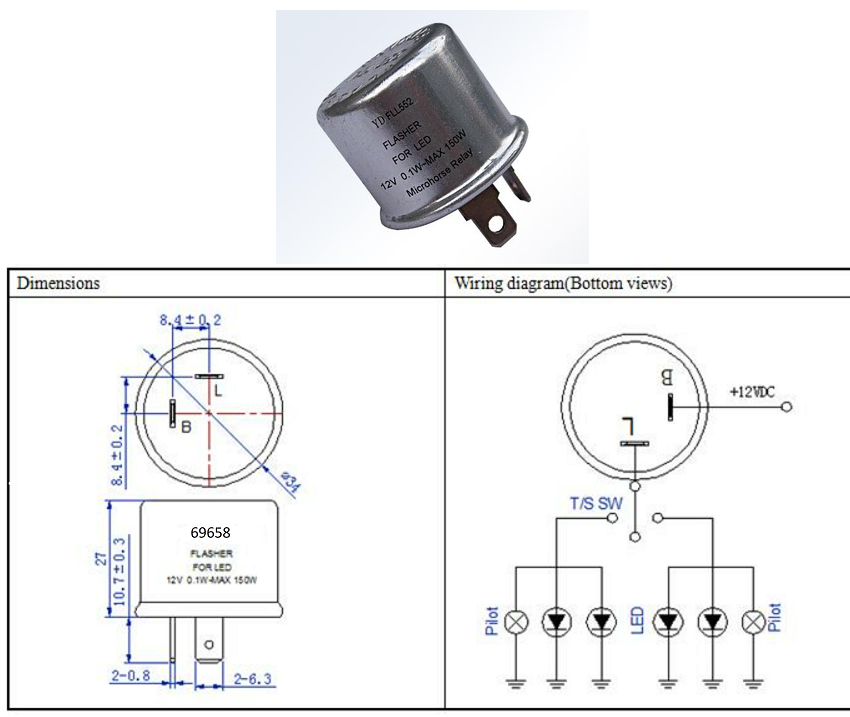

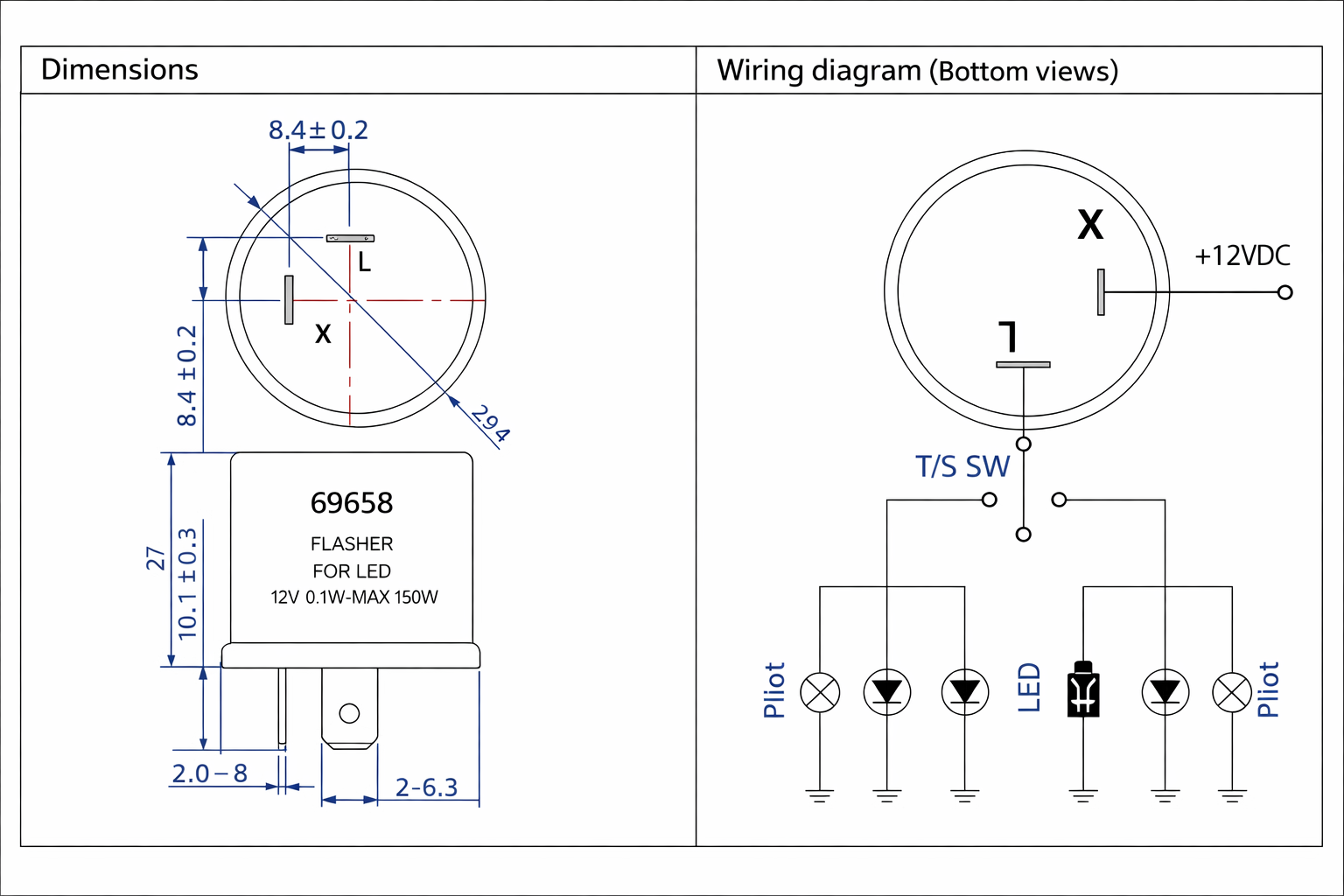

LED Compatible flasher. The LED compatible flasher is for 7 to 24 Volts DC. Maximum voltage 31 volts. Negative ground vehicles or motorcycles. This 2 prong round flasher can handle up to 150 Watts of led or incandescence bulbs. 1 to 6 LED Bulbs or incandescent bulbs. Each incandescent bulb is around 21 Watts. The flasher will flash between 60 and 120 Hz. The flasher can power from 0.1 Watt to 150 Watts of lighting, .02A-20A. Operating Voltage from 7 Volts DC to 31 Volts DC. The duty ratio of this flasher can range from 30% to 70%. The operating temperature from -40C to +80C. The flashers life time is up to 400 hours of flashing time. The flashers body is round. Plug and play disconnect power remove old flasher and install new flasher reconnect power. Very easy to eliminate hyper flashing by replacing your old flasher with this LED compatible flasher. The flasher terminals are L for load and B for positive voltage. Please make sure to connect the anode of your LED bulb to the flasher terminal "L". Please connect the cathode of our led bulb to ground. The flasher does not click like your old flasher it is solid state. The operating temperature of the flasher is 20℃ ± 2℃. The diameter is 1.33 inches. The height is 1.06 inches. The weight of this flasher is 15g. CE.
The 69658 flasher is compatible with:
If replacing 552 you must reverse the wiring
CEC TF552/536
FLL552
Tridon HD12
CEC Industries TF552/536 Flasher
CEC Industries EF32RL
NAPA 552
CARQUEST 552
EATON BUSSMAN 224 323 536 552
PETERSEN 552F
IDEAL 536
TRIDON 552
LITTLEFUSE 2092023.z
GROTE 44310
SIGNAL STAT 144 536 552
TRUCK LITE 536 552
KD 255-2001
SMP EFL552
ECHLIN 536 552
HD552
