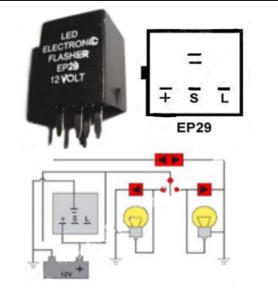

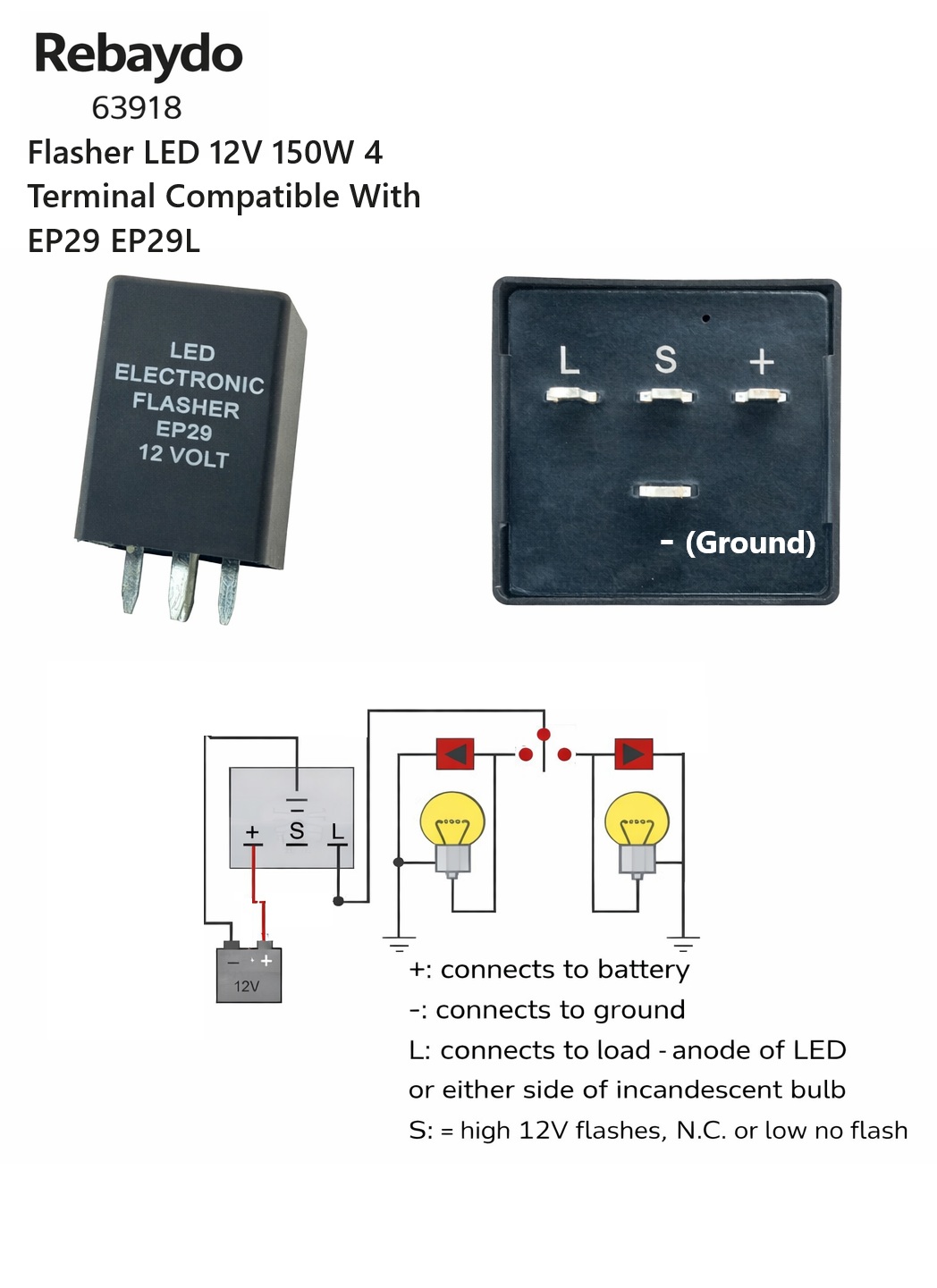

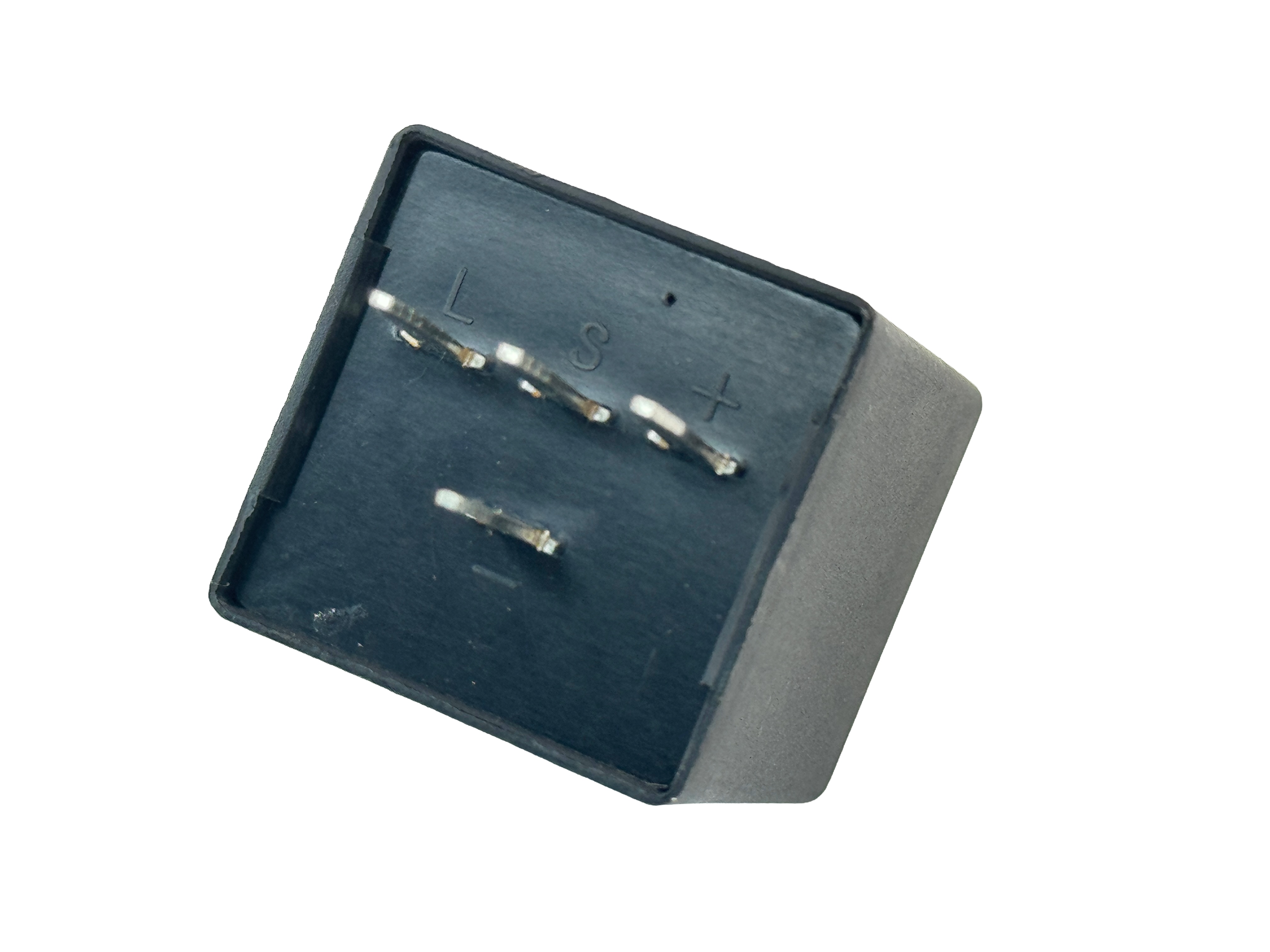

LED compatible 12 volt DC flasher, maximum 150 watt. Can use incandescent or LED bulbs. Please do not exceed maximum wattage. CE and Rohs listed. Long life up to 400 hours. See product detail for warranty period. Includes 1 item per package. Up to 13 amps max. This relay saves time and money by not having to install load equalizers with LED bulbs. The 4 terminals are L, S, -, +. To connect EP39,
+ connected to battery
- connected to ground
L connected to load anode of led or either side of incandescent bulb
S = high 12v flashes, N.C. or low no flash
Compatible with:
CEC EF29
NAPA EP29
CARQUEST FSH6051
EATON BUSSMAN 762
TRIDON EP29
LITTLEFUSE FLR762
GROTE 44120
SMP EFL6
EP 29L
