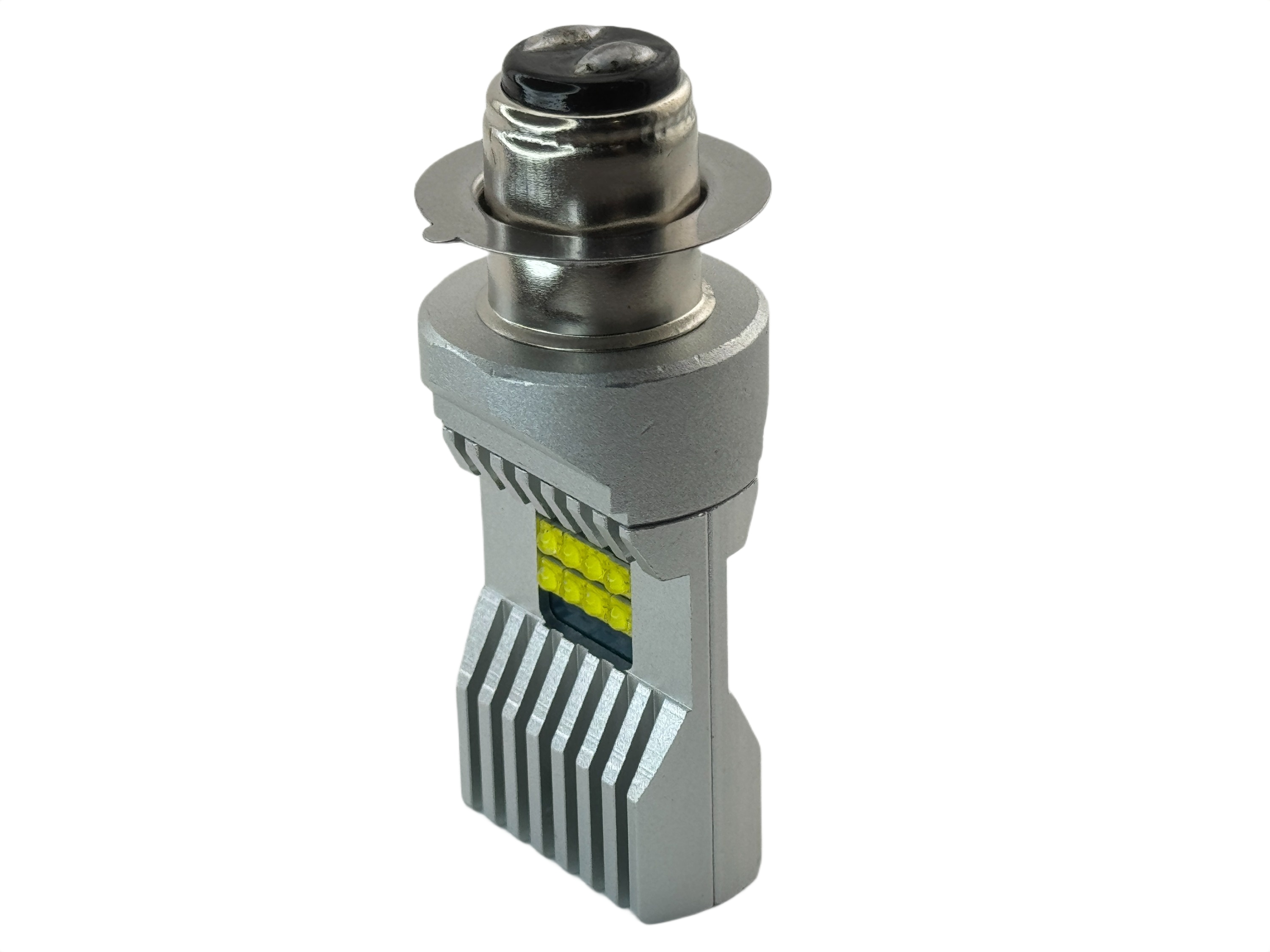

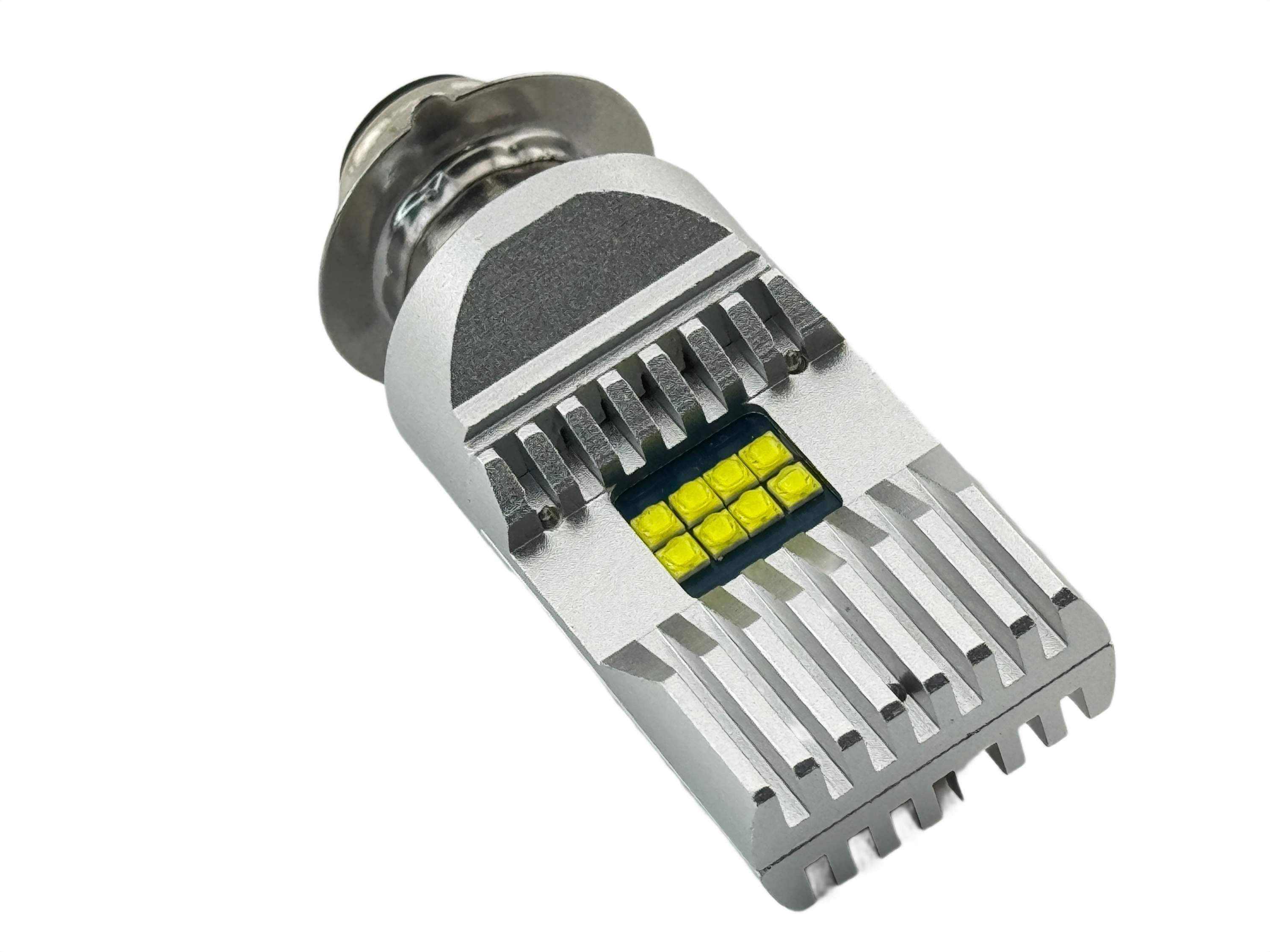

P15D-25-1 LED Headlight 5 to 30 Volts Dual Filament Non Polarity product 79832
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

P15D-25-1 LED Headlight 5 to 30 Volts Dual Filament Non Polarity

Product Code: 79832

USD Price: 19.99
spacer   Volume Discount Percentage   spacer
 Buy 2 or more and save 2.00%
 Buy 4 or more and save 3.00%
 Buy 6 or more and save 4.00%
 Buy 8 or more and save 5.00%
 Buy 10 or more and save 6.00%
 Buy 25 or more and save 7.00%
 Buy 100 or more and save 8.00%
Qty: Add To Cart

Buy Now
Add To Saved Cart
Warranty: 12 Months

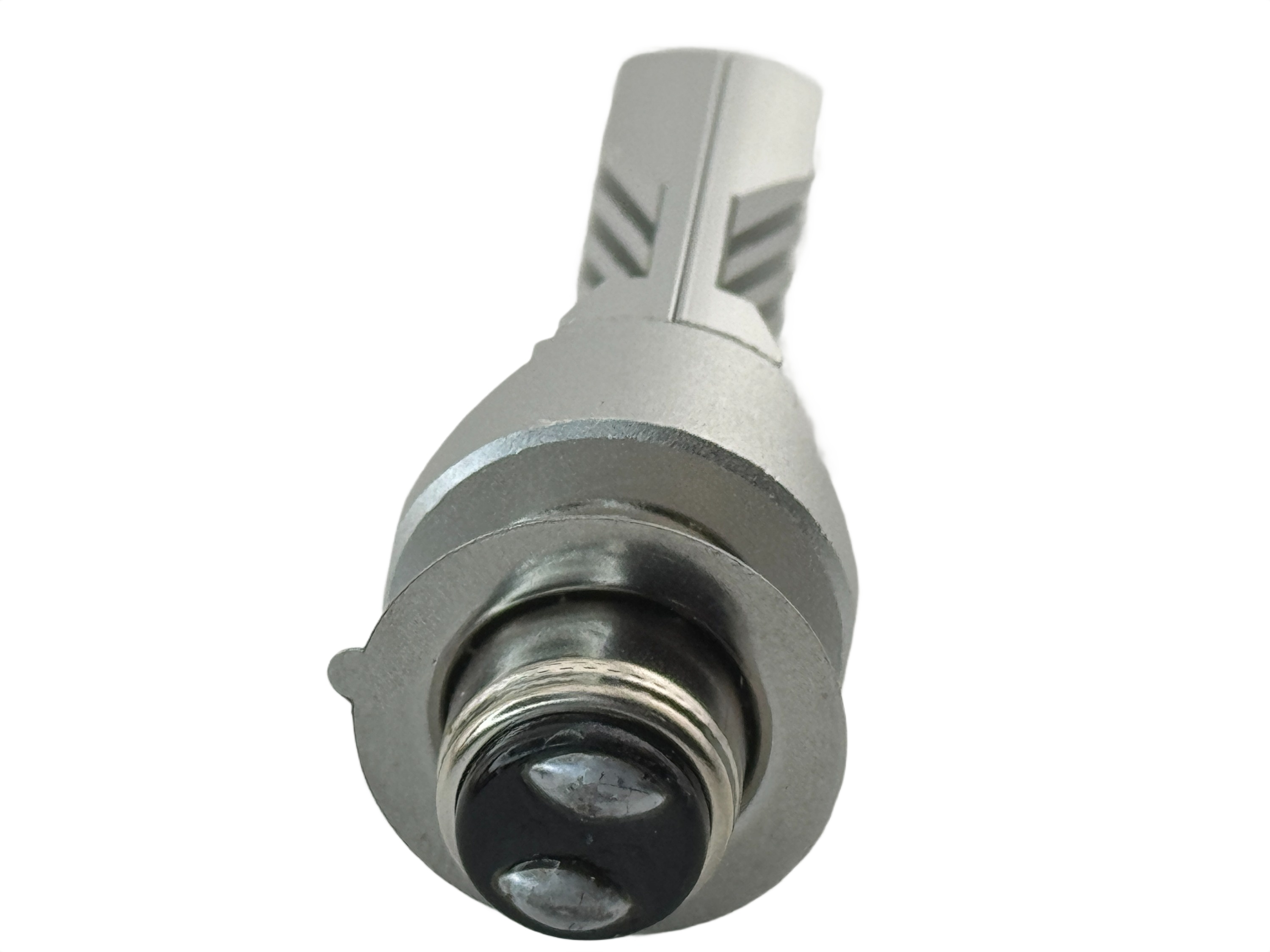

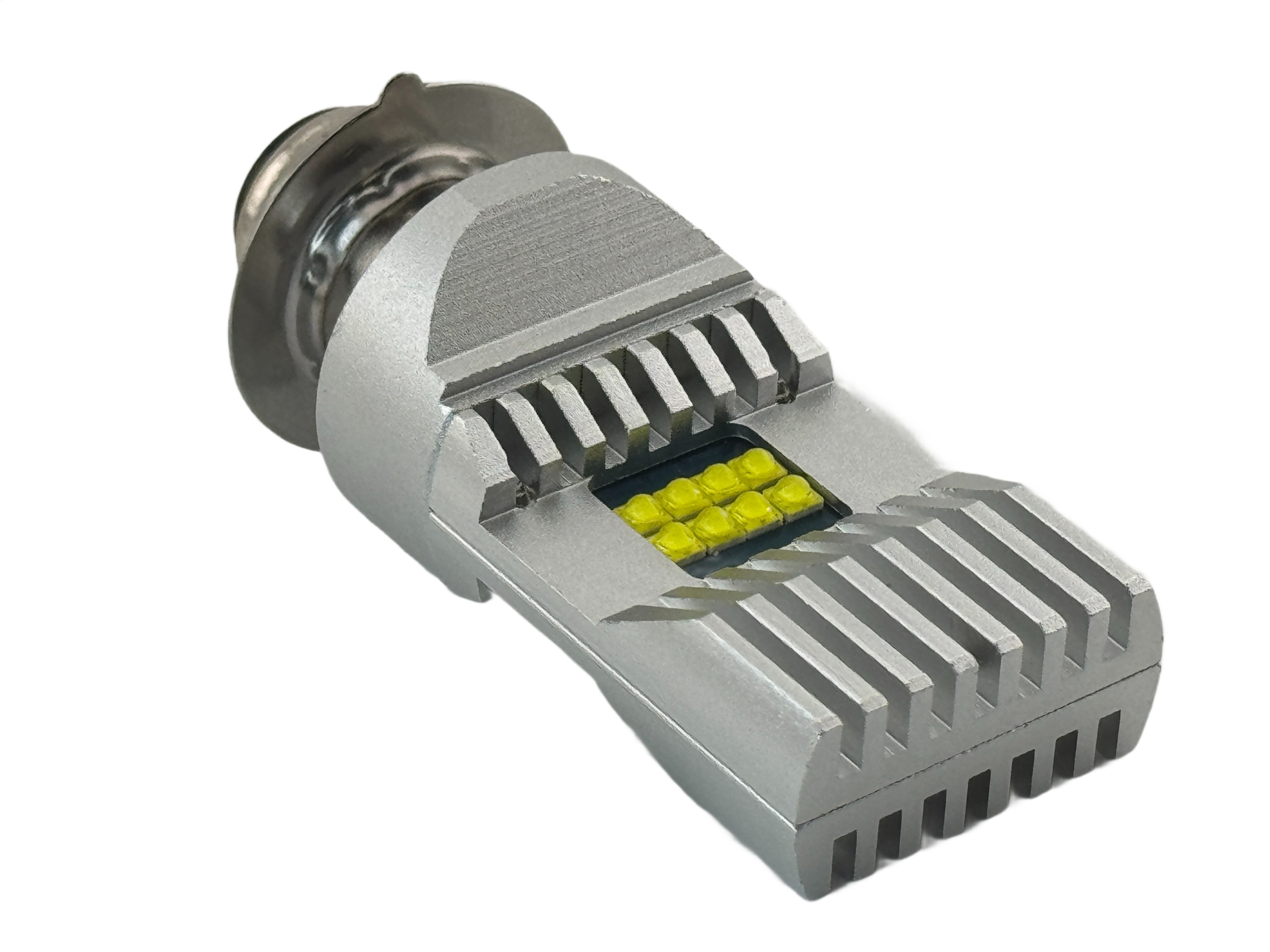

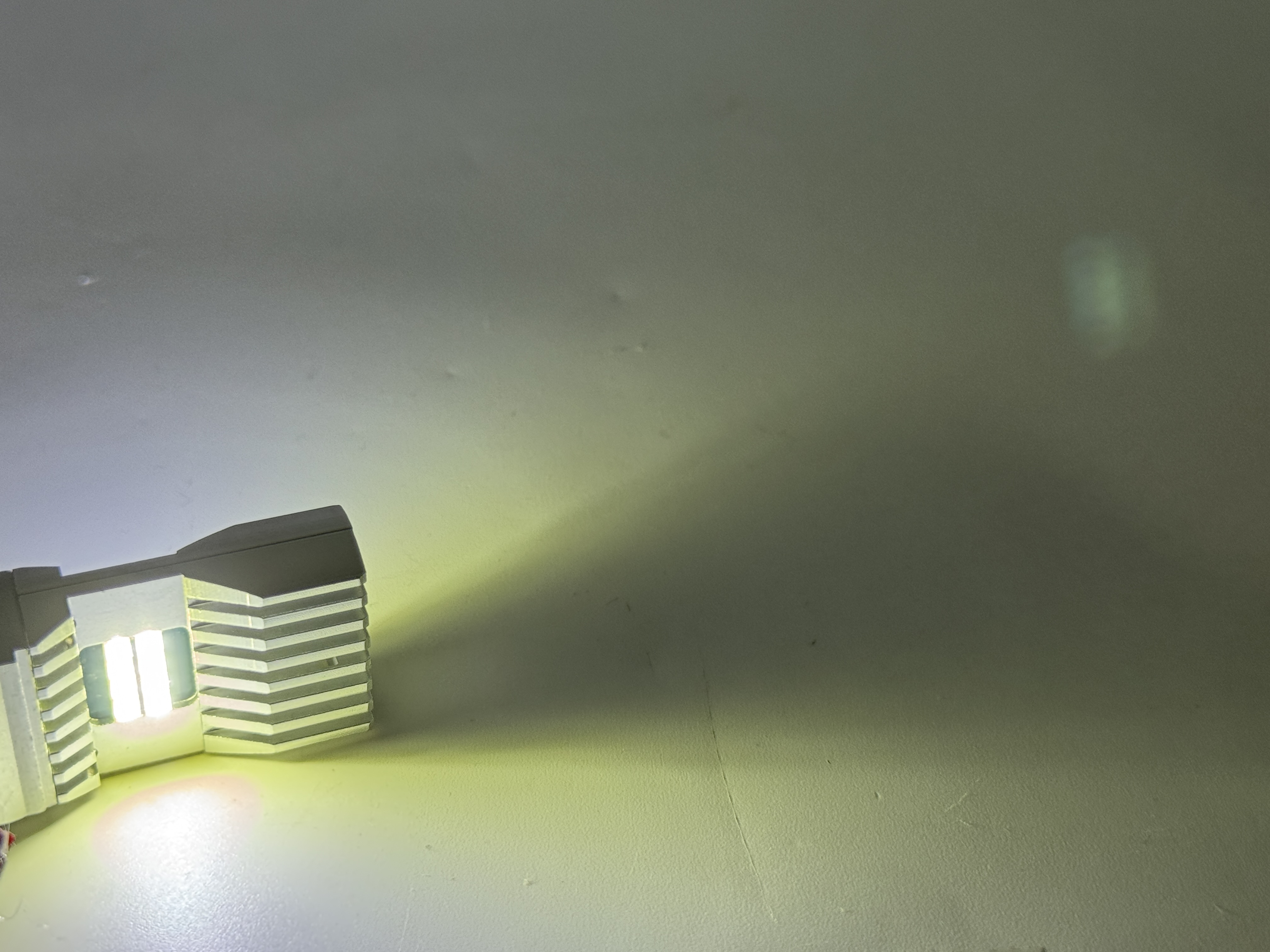

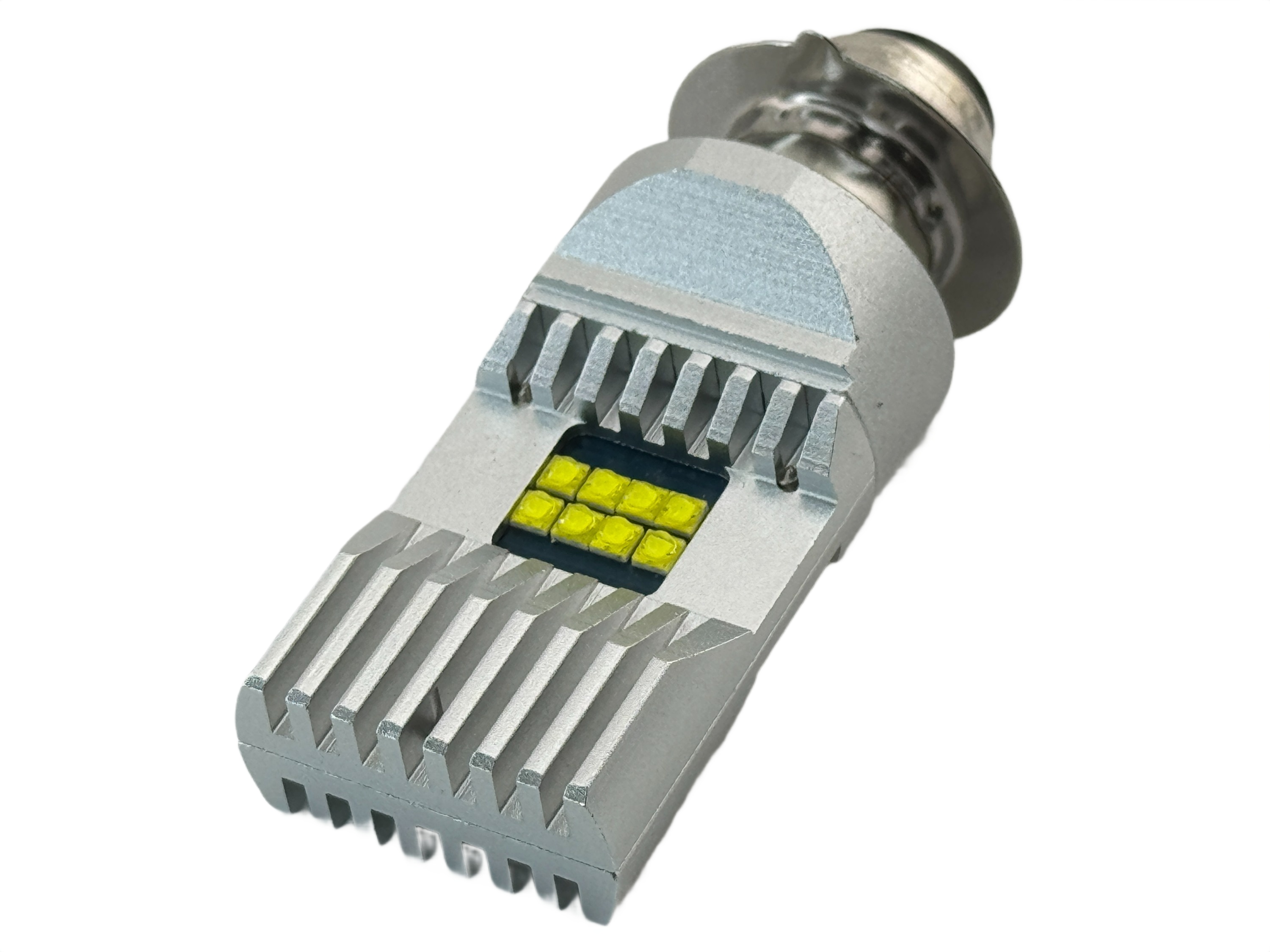

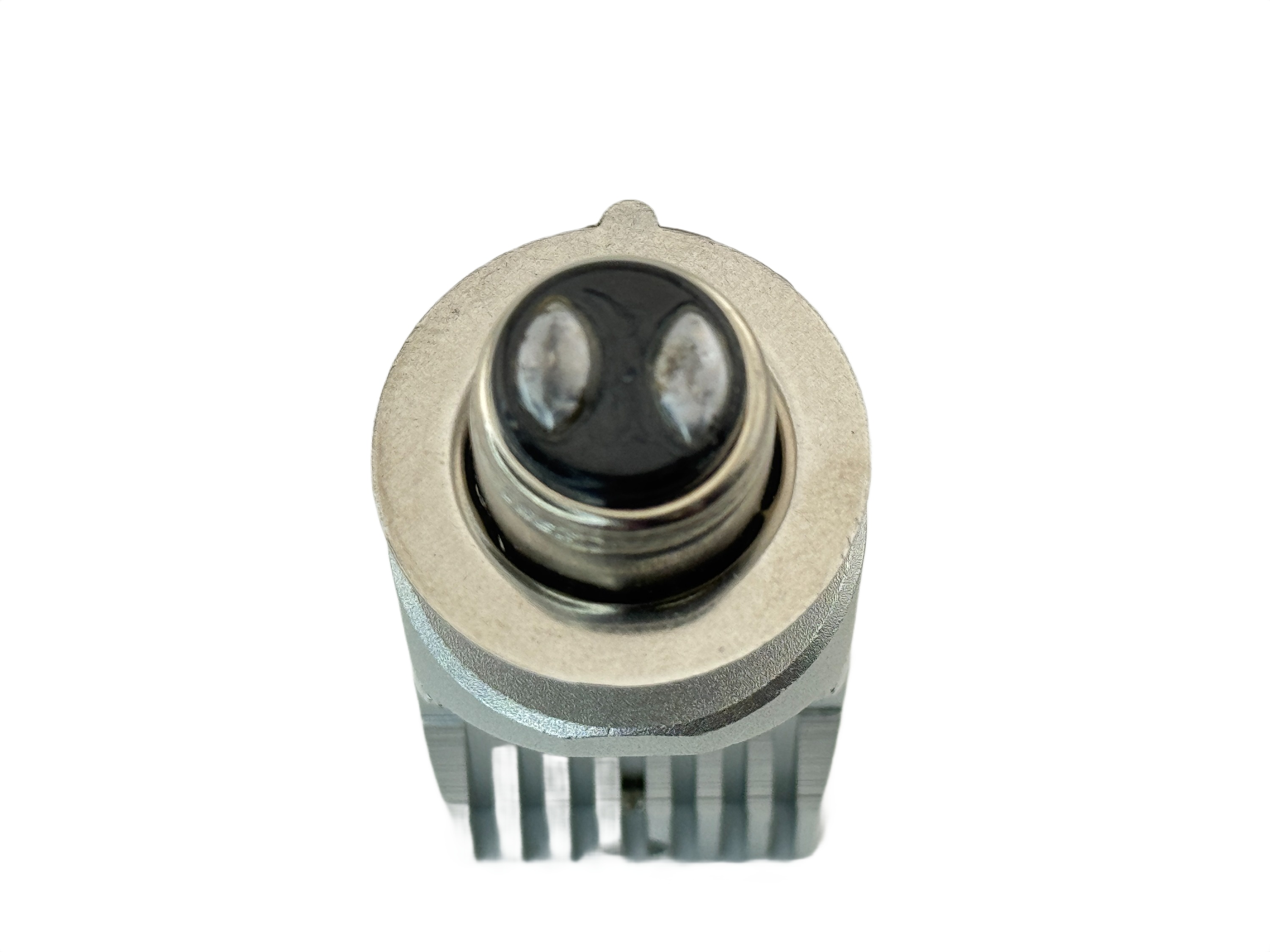

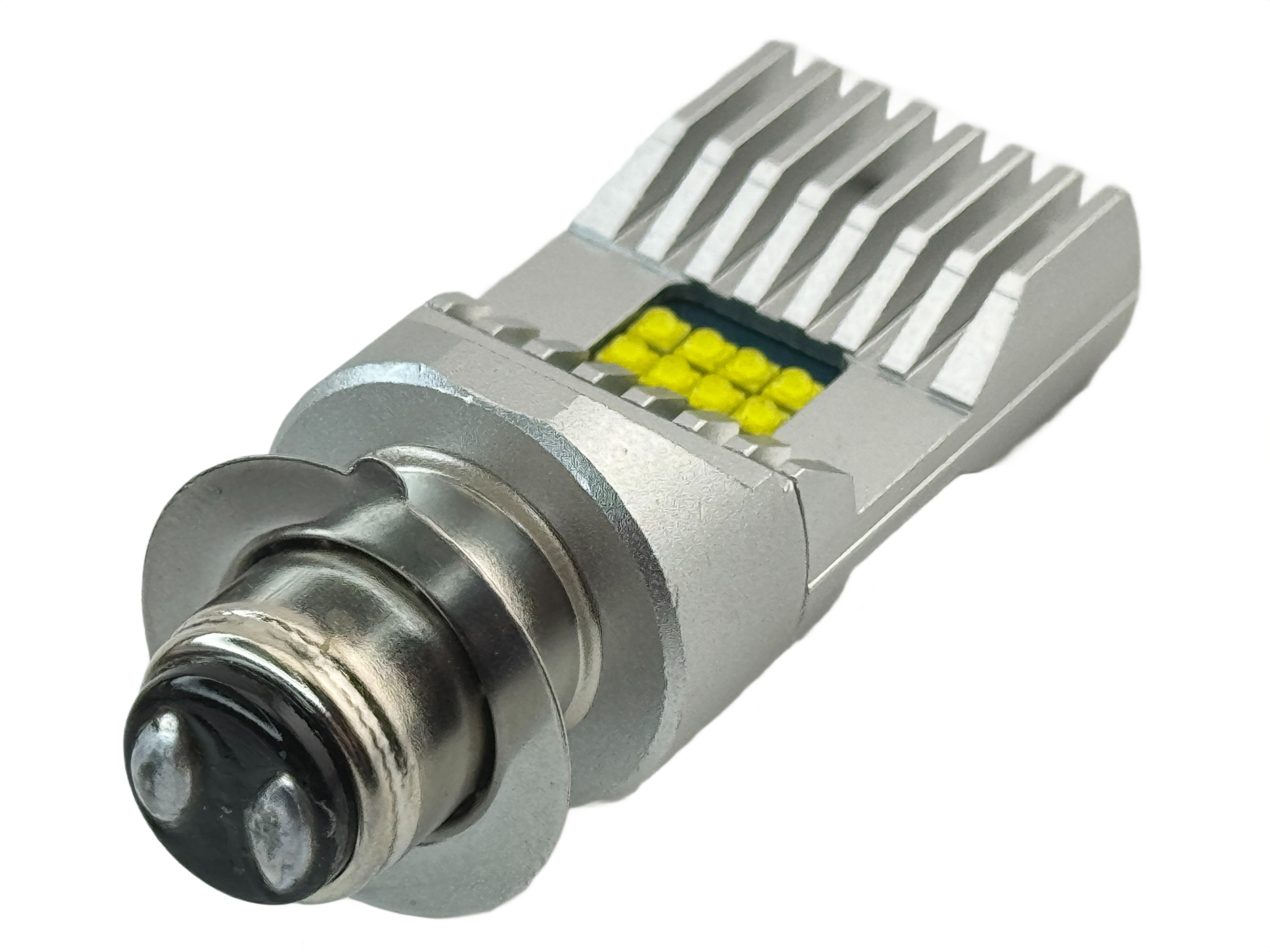

P15D-25-1 LED Headlight 5 to 30 Volts Non Polarity has one claw or bump on the disc. Works either positive ground or negative ground. Since operates wide voltage range of 5 to 30 Volts the led bulb is full brightness within that voltage range. Comparable 35 to 45 Watt halogen bulb. Up to 30,000 hour life. Dual beam, low beam up to 1200 Lumen output. High beam up to 1800 Lumen output. Made with aviation aircraft aluminum to keep the led's cool for longer life. Available in White 5000-6000K and Warm White 2500-3500K. Dimensions are overall length is 2.52 inches. The width is 0.98 inches. Made with led's on both sides. One row of led's on each side illuminate for low beam. Both rows of led's on each side illuminate for high beam. Uses 800mA for low beam and 1.4A for high beam. Since this bulb is led it uses 90% less power than your halogen or incandescent bulb which is easier on your generator or alternator. This led headlight uses up to 5 Watts in high beam and uses up to 3.3 Watts in low beam. Load equalizers may be required, if the bulb will not switch from low beam to high beam or if the bulb flickers when installed. Low beam will illuminate one row of the led's on both sides. High beam will illuminate both rows of led's on both sides. Please install led light load equalizers to fix the problem product code 65832. This is a P15D-25-1 with one tab or claw around the round decking. The base has two contacts one for low beam and the other for high beam. The diameter of the base BA15D is 15mm. The decking or the round plate diameter is 25mm. CE and Rohs. Compatible with: 1966 cm91 Honda 34901087640
  Recommended Items:

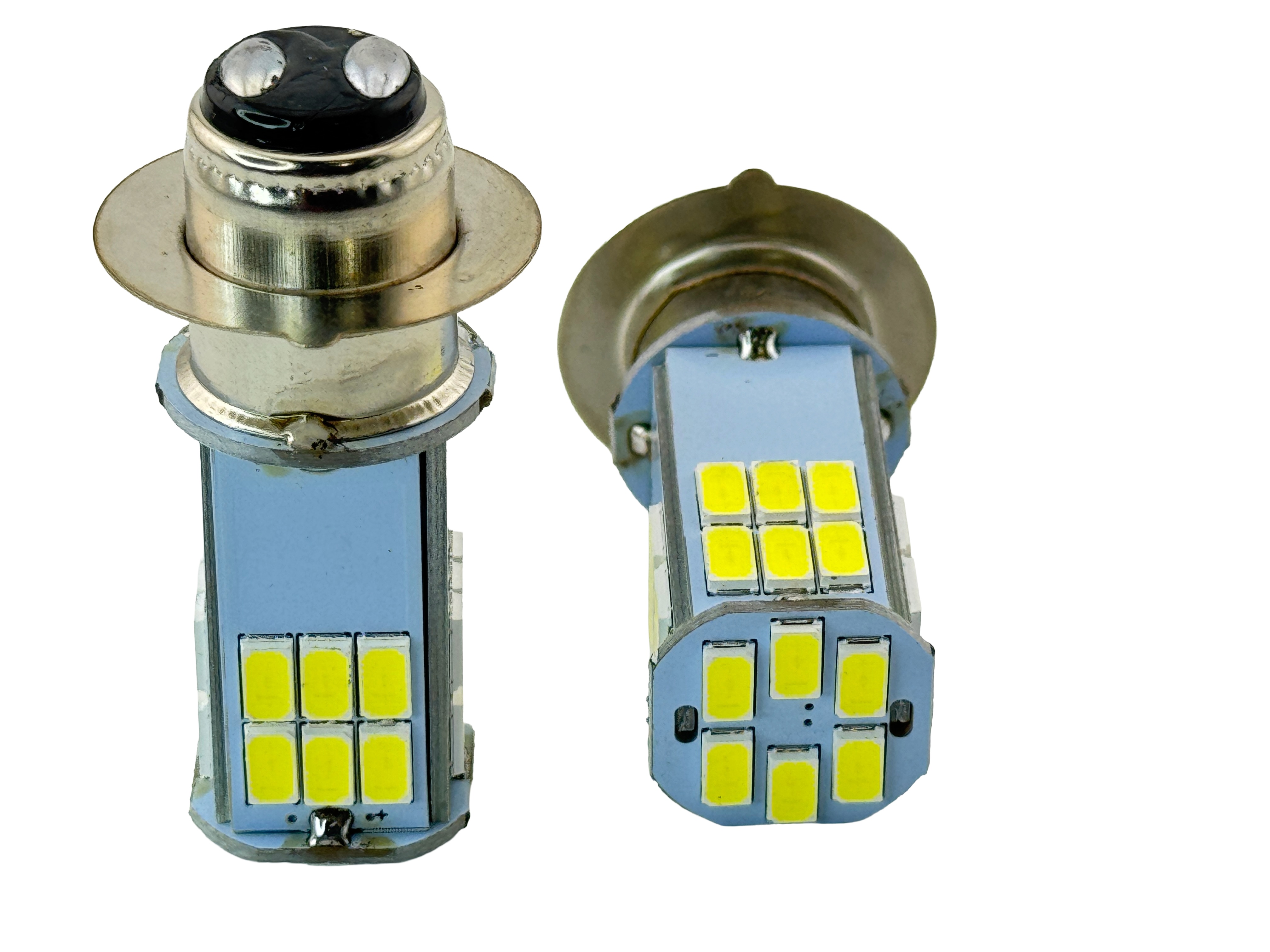

LED Headlight P15D-25-1 Base 6 Volt 30 SMD Dual Beam

LED Headlight P15D-25-1 Base 6 Volt 30 SMD Dual Beam
Product Code: 64845
Price USD: $6.79Quantity Pricing Available

No Description Available





LED P15D-25-1 Headlight Base 12 Volt 60 SMD Dual Beam

LED P15D-25-1 Headlight Base 12 Volt 60 SMD Dual Beam
Product Code: 78431
Price USD: $8.49Quantity Pricing Available

No Description Available





LED Headlight P15D-25-1 Base 12 Volt 30 SMD Dual Beam

LED Headlight P15D-25-1 Base 12 Volt 30 SMD Dual Beam
Product Code: 76865
Price USD: $6.79Quantity Pricing Available

No Description Available

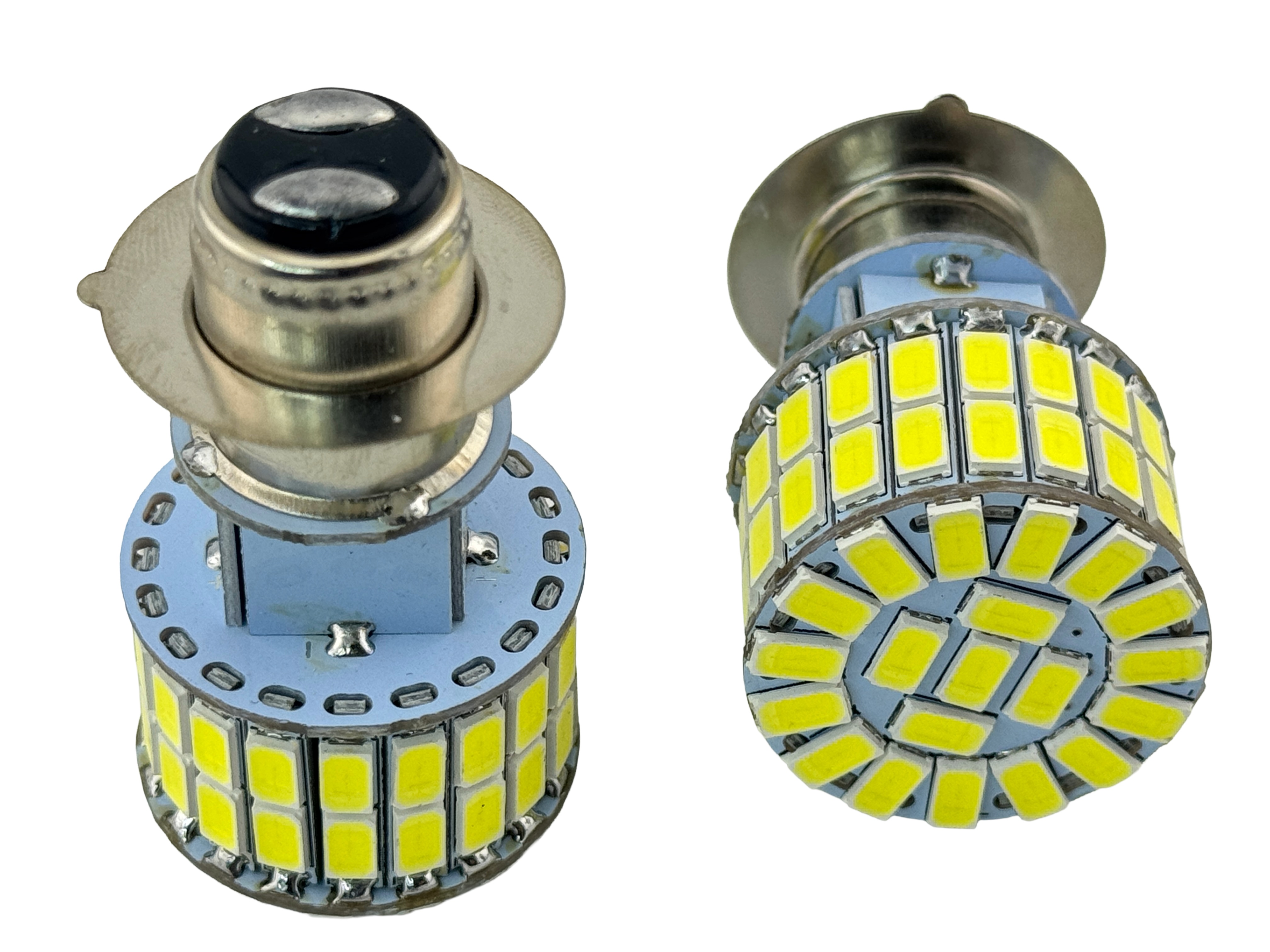

P15D-25-1 LED Headlight 6 Volt Dual Beam 60 SMD
