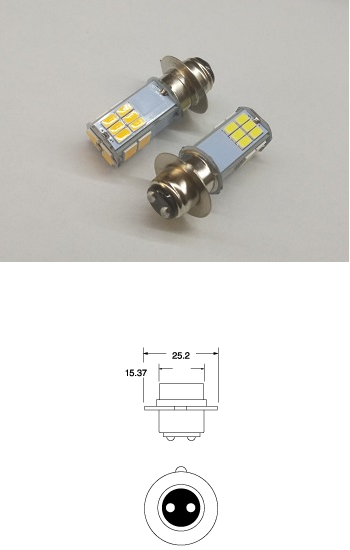

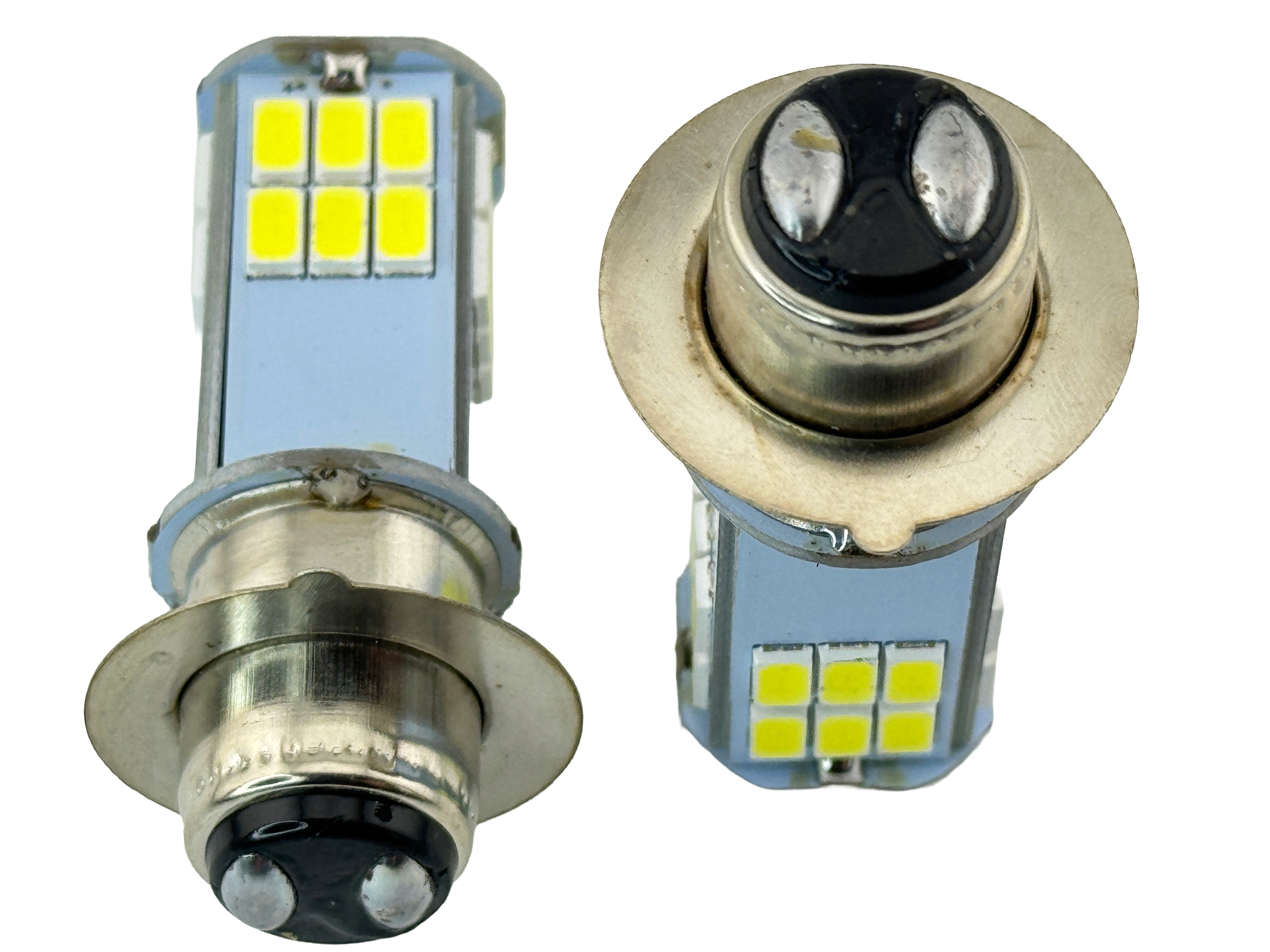

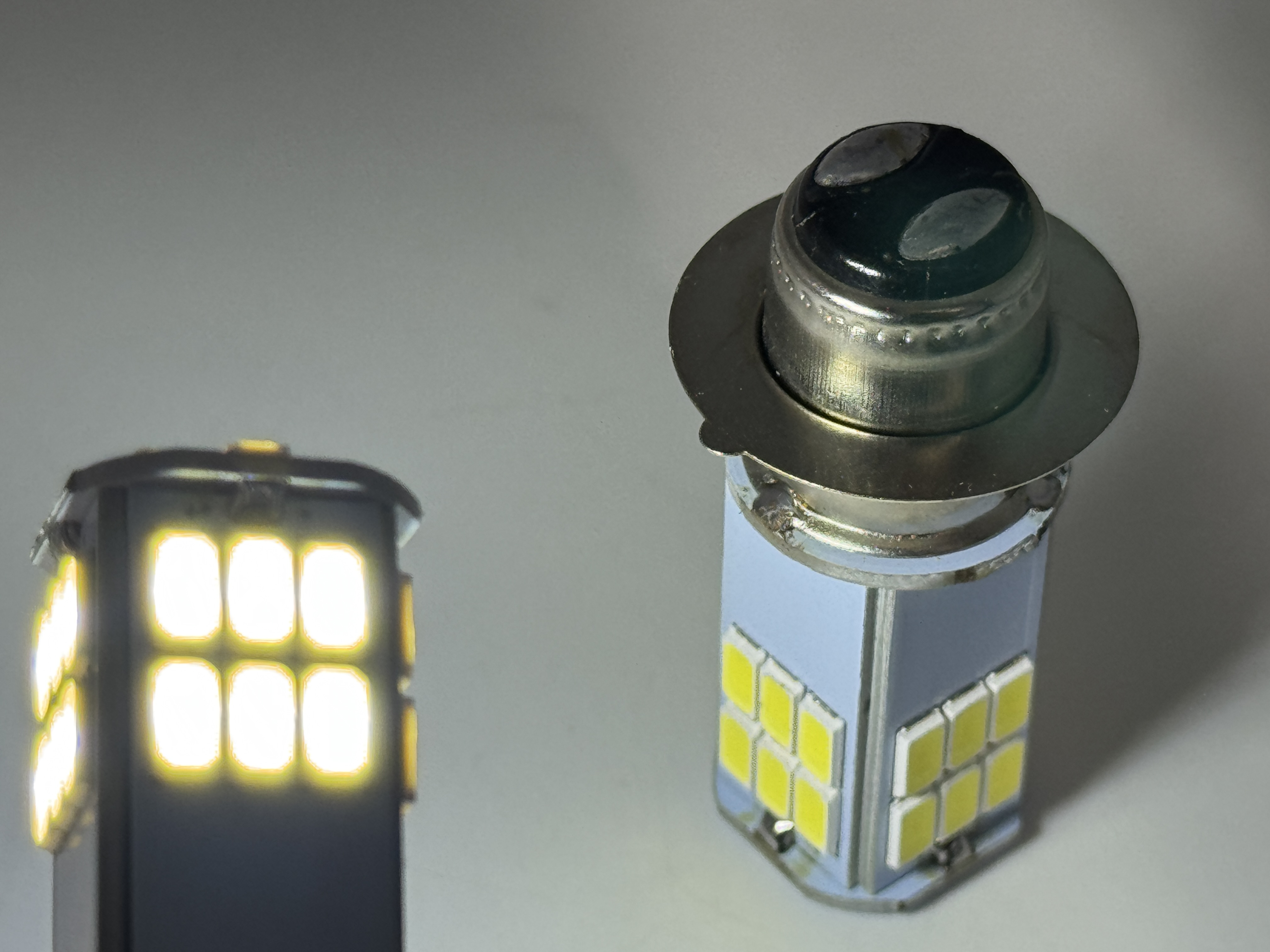

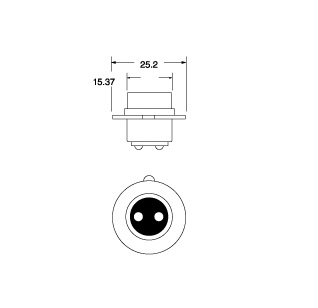

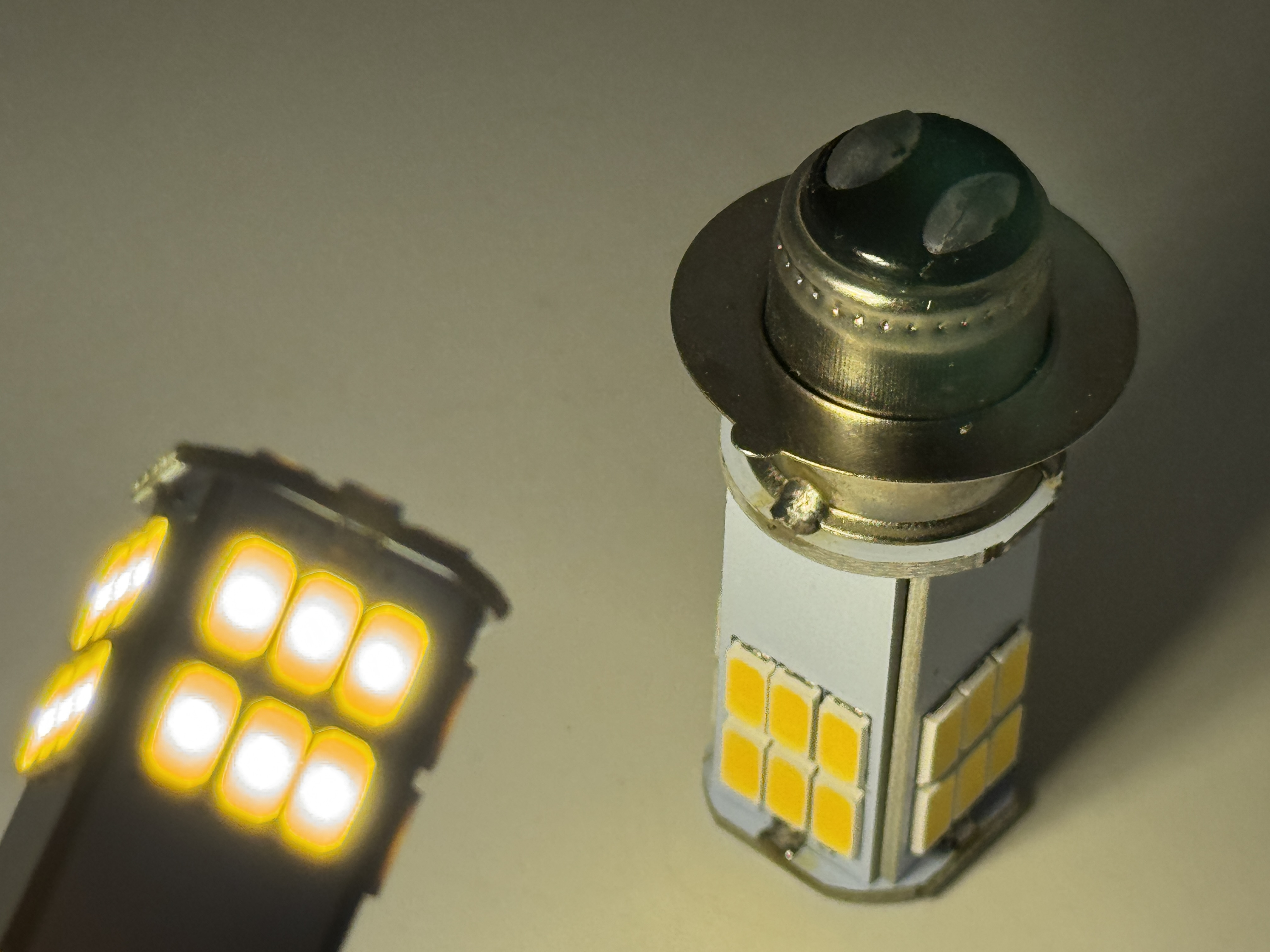

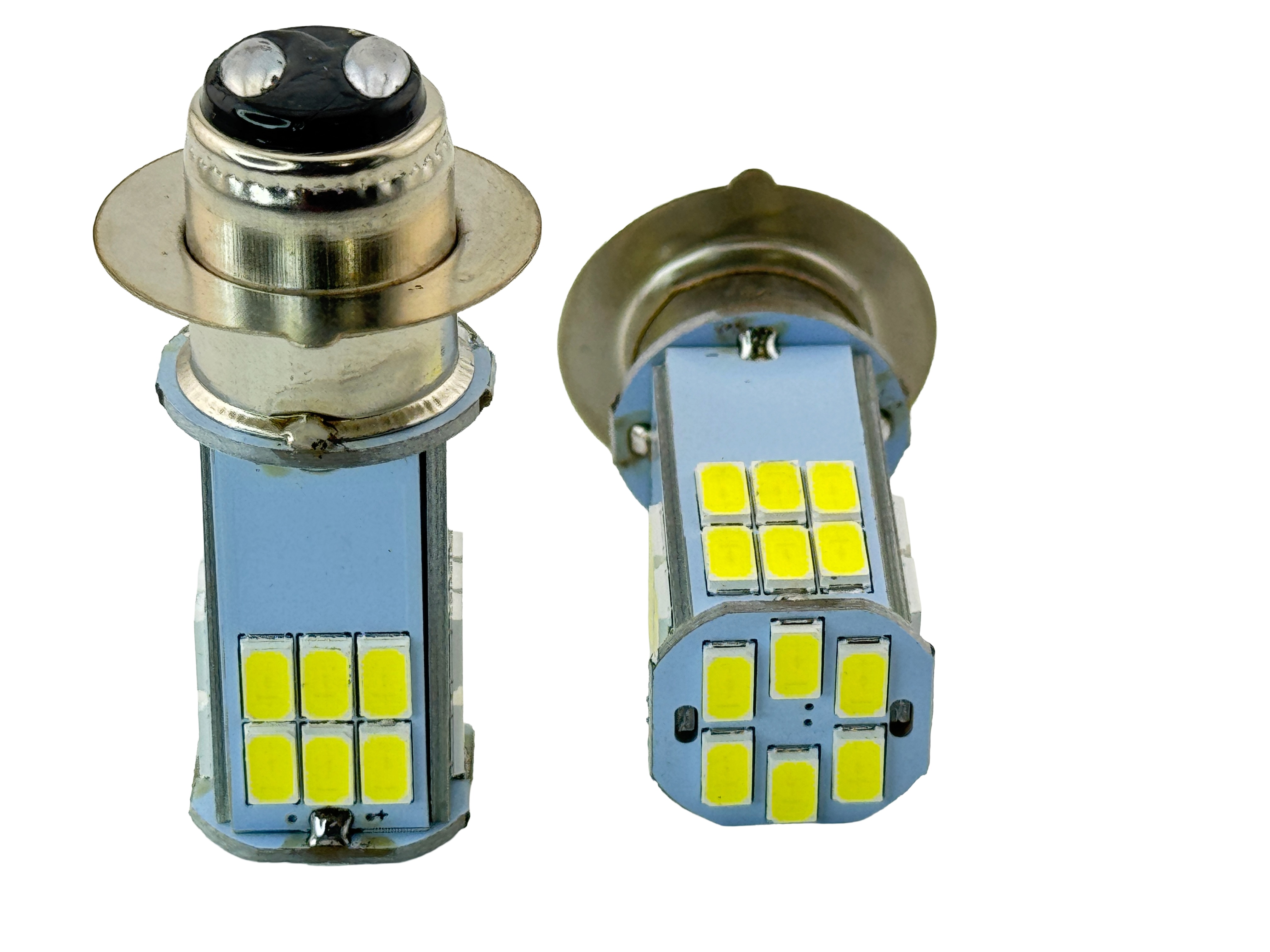

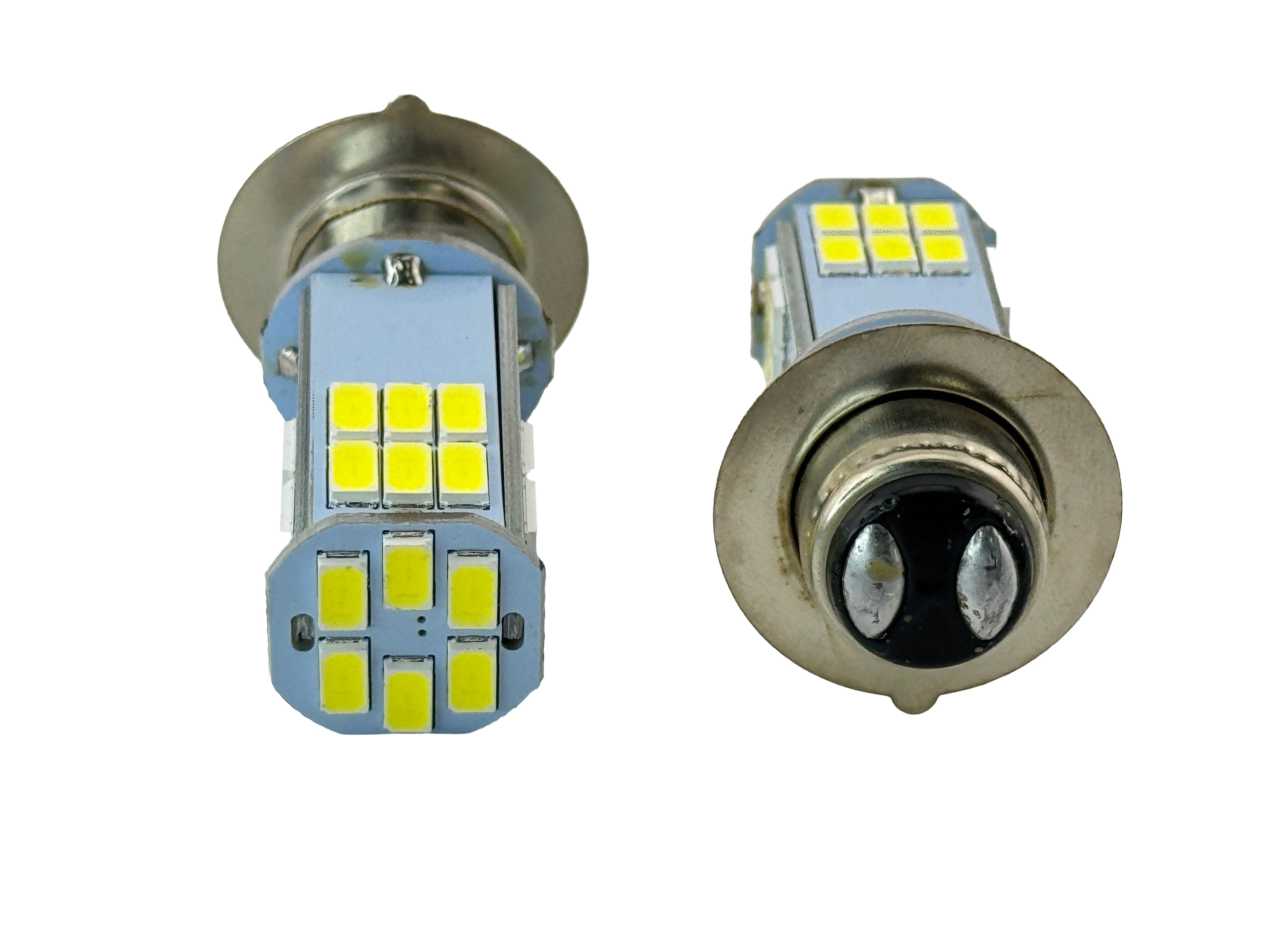

T19 P15D-25-1 base led headlight. Up to 600 Lumen output. Dual filament Low and high beam. Long life up to 30,000 hours. The leds are optically aligned for best led light output using your reflective fixture. Please always clean the fixture when installing led light bulb. Comparable a 25 to 35 Watt halogen or incandescent bulb. The base is T19 P15D-25-1 base. This bulb operates either AC or DC. Operates at 6 volts, higher voltage with cause this bulb to fail. The bulb can operate up to 7.0 volts. Works either positive chassis or negative chassis. The M.O.L. maximum overall length is 1.976" and the M.O.D. maximum overall diameter is .747" not including the base diameter. CE and Rohs.
Compatible with:
p15d-25-1
PX15d
H6
h6m
P15D
Honda TL125 125S 250 C105T 110 CT70 90
Honda 1970 mini trail
Honda vintage mini trail
10-527-84114-09-xx
