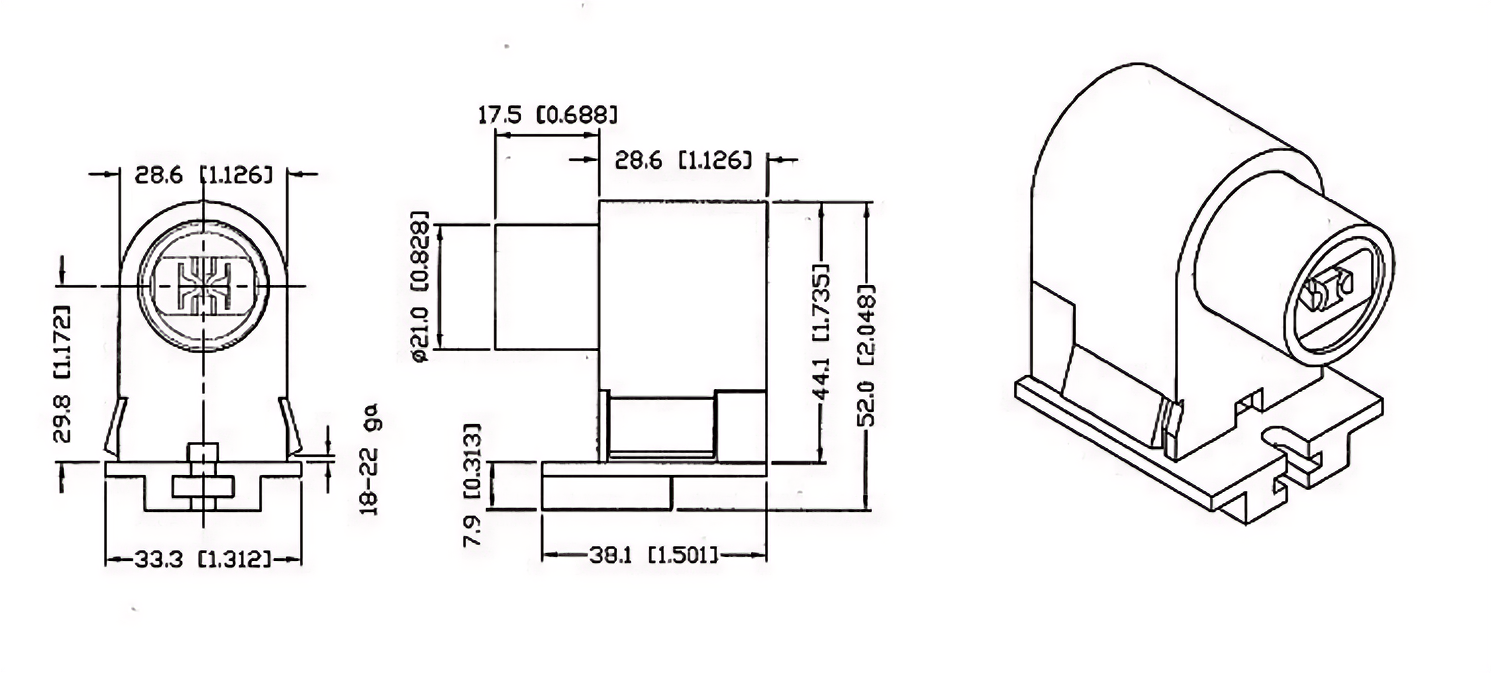

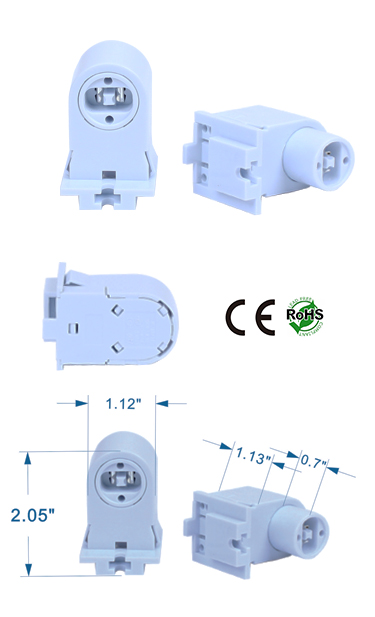

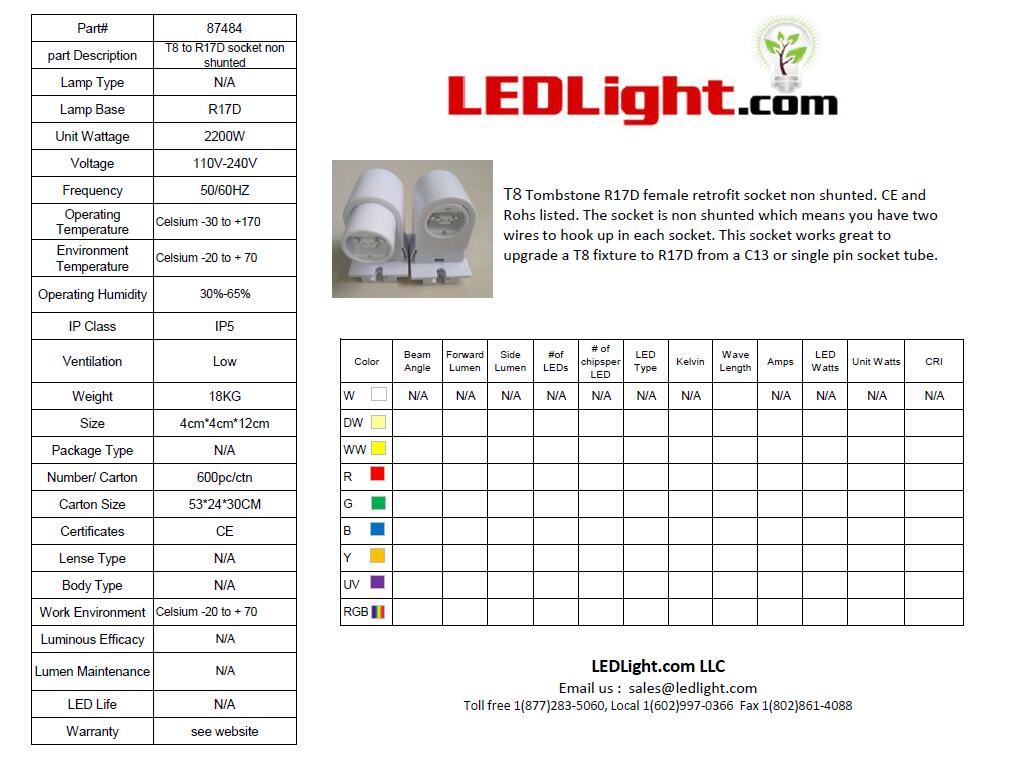

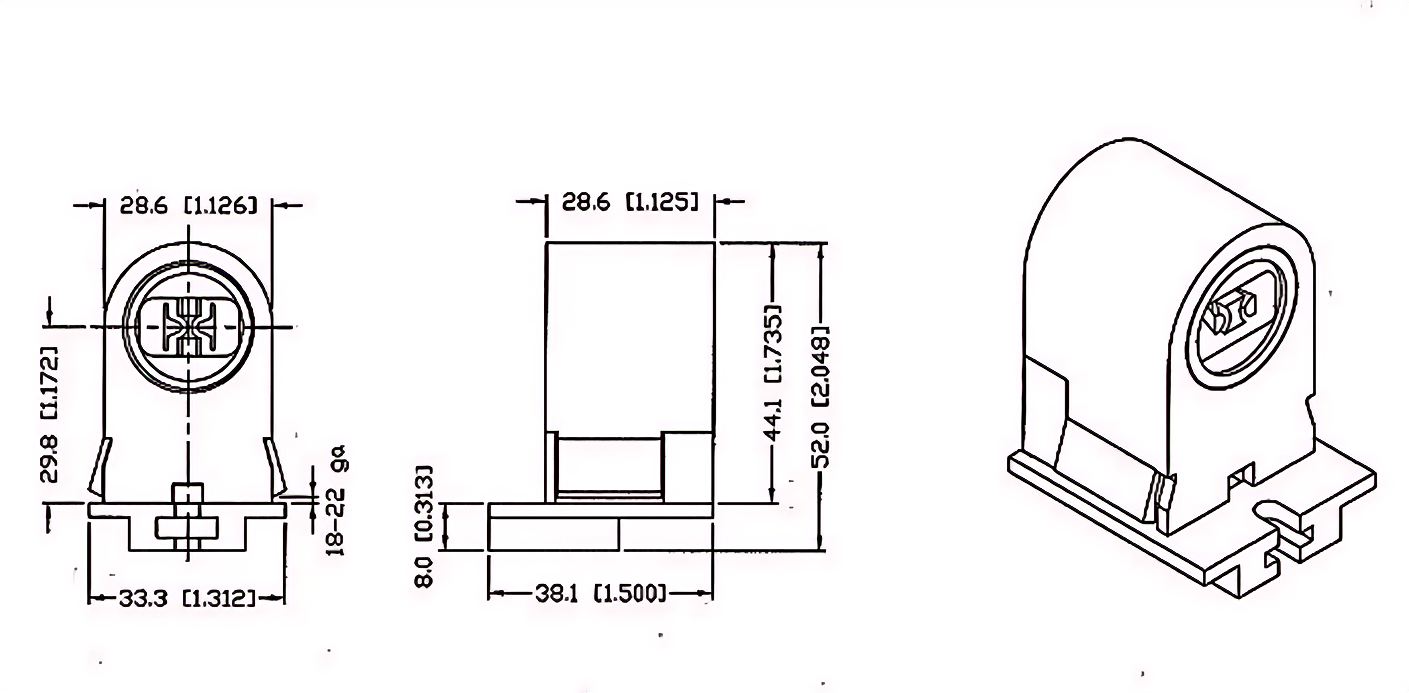

T8 Tombstone R17D female retrofit socket which is non shunted. UL, CE and Rohs listed. The socket is non shunted which means you have two wires to hook up in each socket. This socket works great to upgrade a T8 fixture to R17D from a C13 or single pin socket tube. This product pricing is 1 R17D tombstone matched pair (1 plunger, 1 stationary). cUL listed. Rated up to 600W. Rated up to 600V. Rated up to 1.1 amps. This is a R17D socket adapter for installing R17D tubes into a fixture with R17D tombstones. There are 4 holes in the bottom of the socket which are QuickWire or Push-in connectors. 2 Holes on the right side and 2 holes on the left side. Each side 2 holes are connected to each other. These 2 holes on each side connect to 1 contact of the G13 socket. The other side of the tombstone socket goes to the other two holes that align with the R17D contact. So two holes on the left connect to the left side G13 contact. The two holes on the right side connect to the ride side R17D contact. This socket is non shunted meaning the 2 R17D contacts are not connected together.
| |
