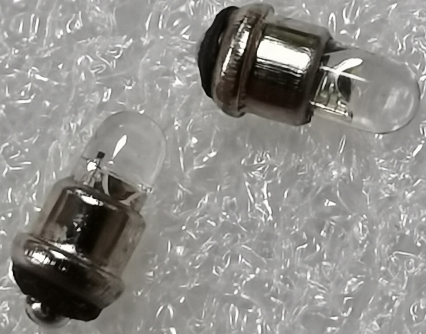

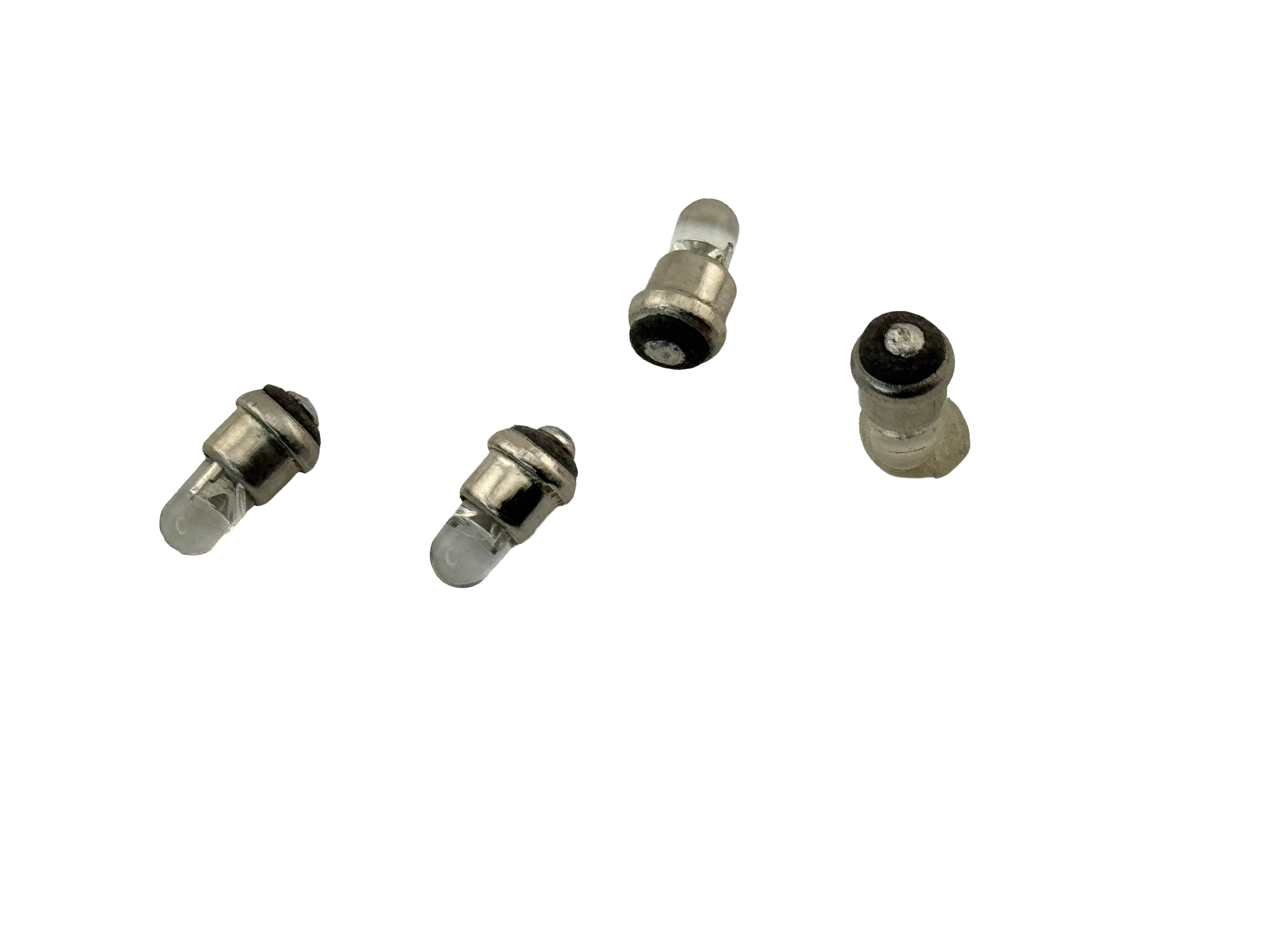

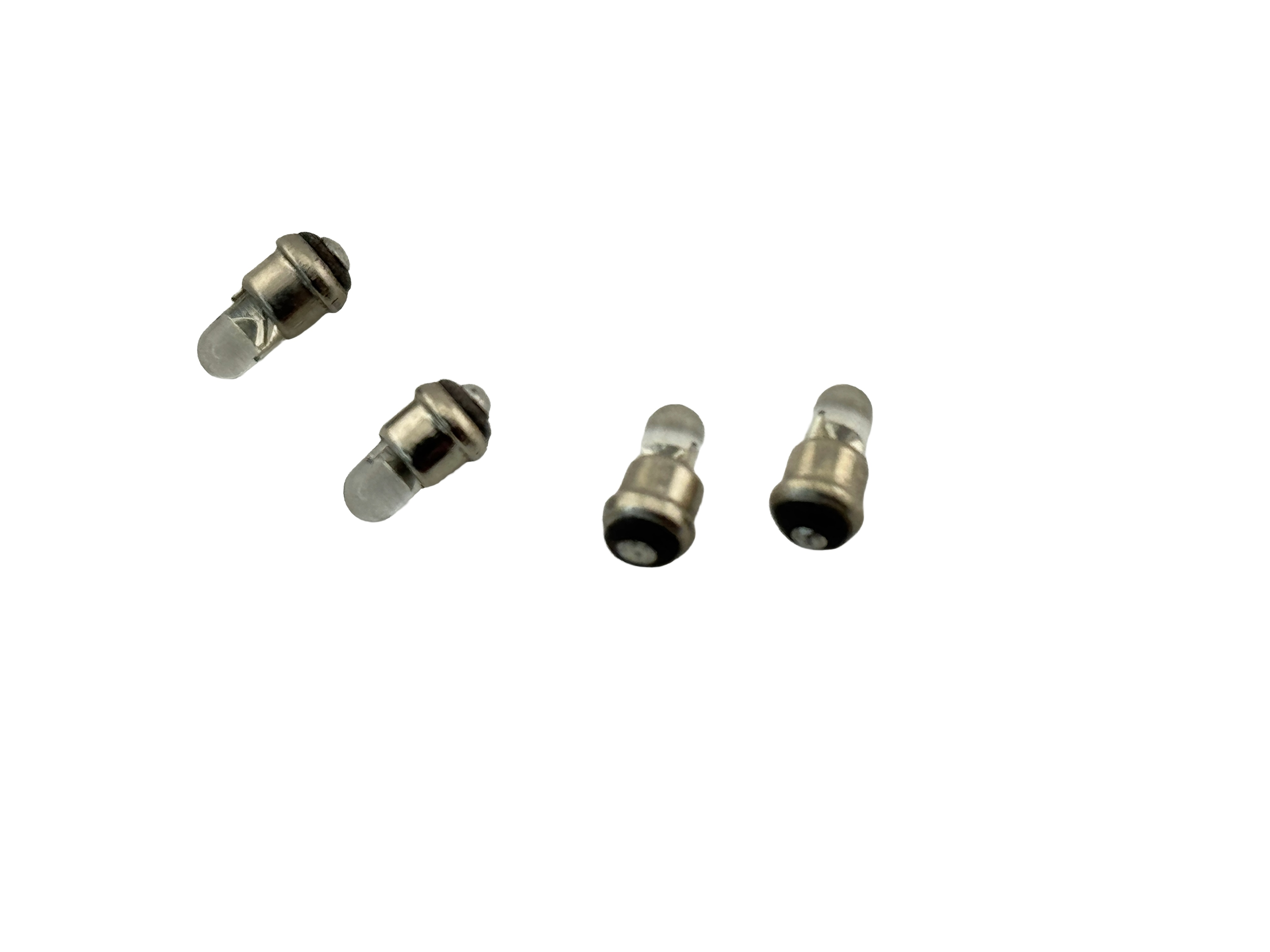

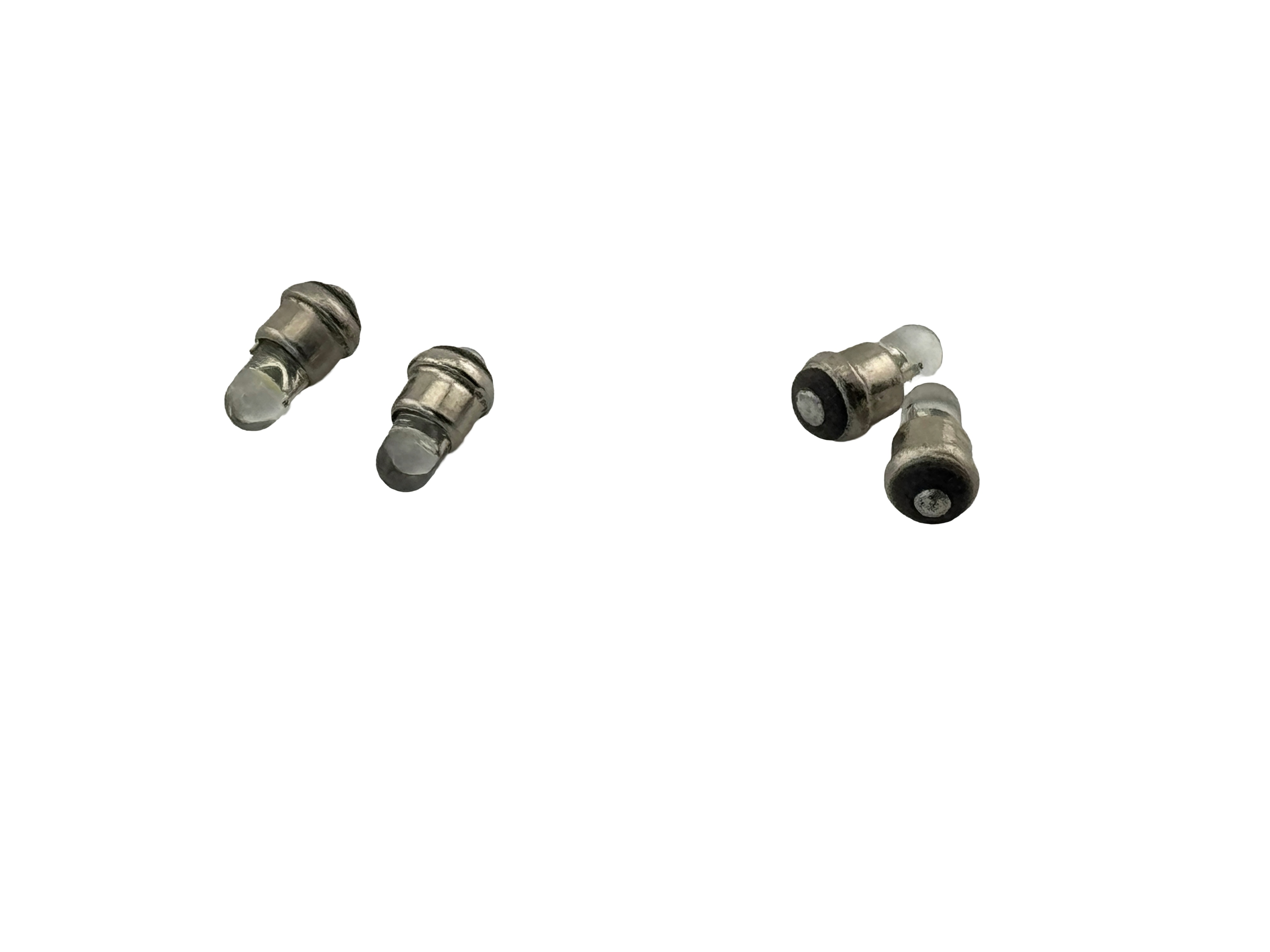

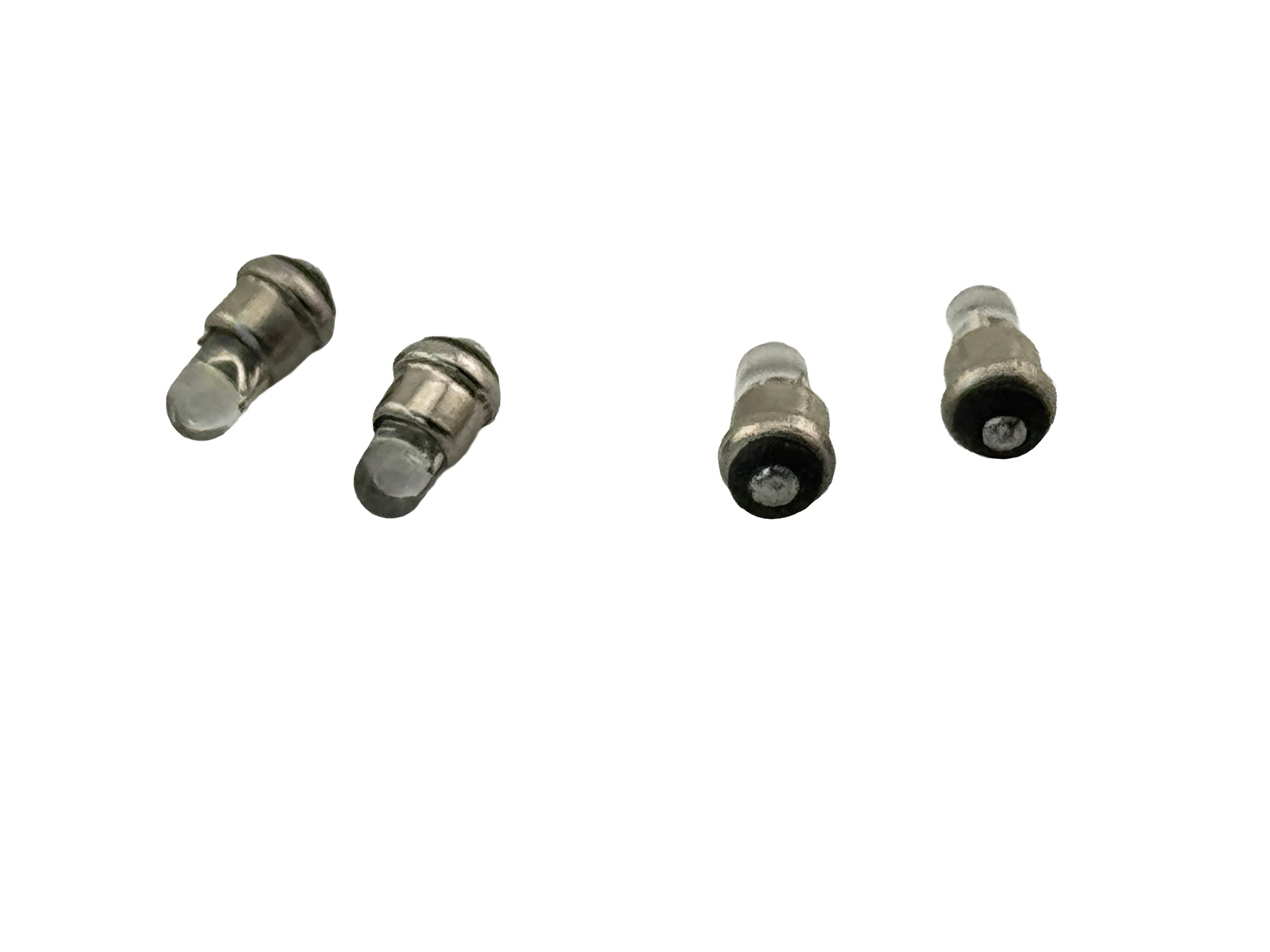

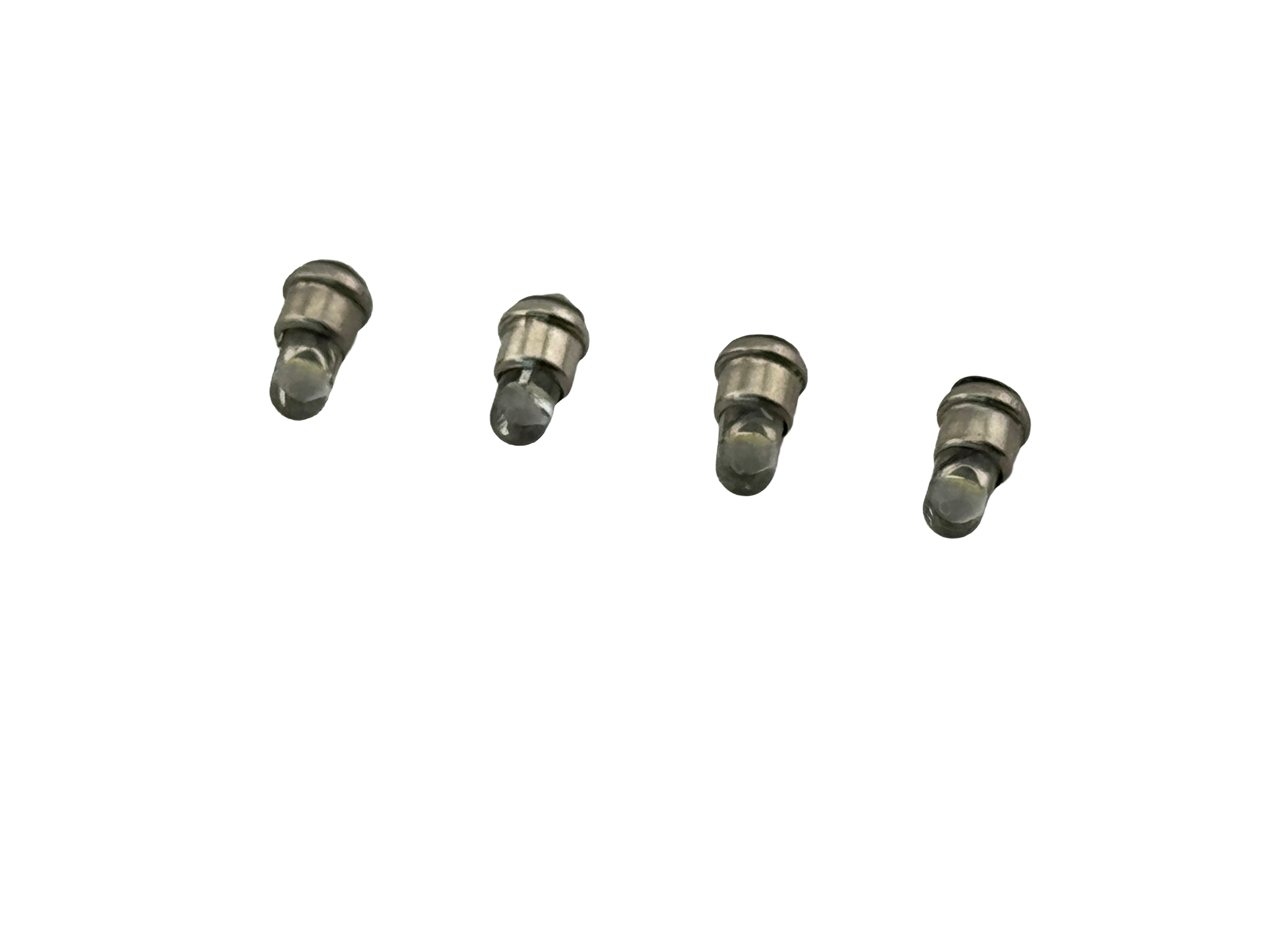

T1 Midget Flange Base LED Bulb 6 to 32 Volts product 54848
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

T1 Midget Flanged Base LED Bulb 6 to 32 Volts DC

Product Code: 54848

USD Price: 1.49
spacer   Volume Discount Percentage   spacer
 Buy 2 or more and save 2.00%
 Buy 4 or more and save 3.00%
 Buy 6 or more and save 4.00%
 Buy 8 or more and save 5.00%
 Buy 10 or more and save 6.00%
 Buy 25 or more and save 7.00%
 Buy 100 or more and save 8.00%
Qty: Add To Cart

Buy Now
Add To Saved Cart
Warranty: 12 Months

T1 Midget Flanged Base LED Bulb 6 to 32 Volts DC. Operates wide voltage from 6 volts to 32 volts DC. Full brightness if voltage in the range from 6V to 32V. Up to 30,000 hours. 120 degree viewing angle. Available in White 6000K-6500K and Warm White 3000K. CE and Rohs. Direct replacement for: 32, 22, 679, 682, 685, 714, 718, 6180, 6839, 7229, 7230, 7231, 7233, 7236, 7238, 7250, 8022, 8605, 8112. Uses only 7mA@12V. Up to 7 Lumen output. LED replacement for T1 hardware. Comparable to a 4 to 9 Watt incandescent bulb. 120 degree viewing angle. Dimmable from 6 to 10 Volts. Not dimmable 10-32 Volts. Works as low as 3 Volts but very dimm. M.O.L. is approximately 9.05mm. M.O.D. is approximately 3mm. Then lens length is approximately 4.02mm. The base length is approximately 5.03mm.
