RGB DMX Controller 12V DC 300W Master/Slave Synchronization

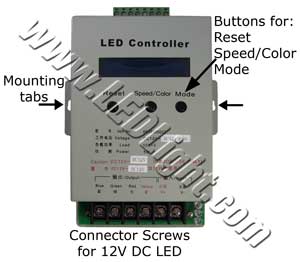

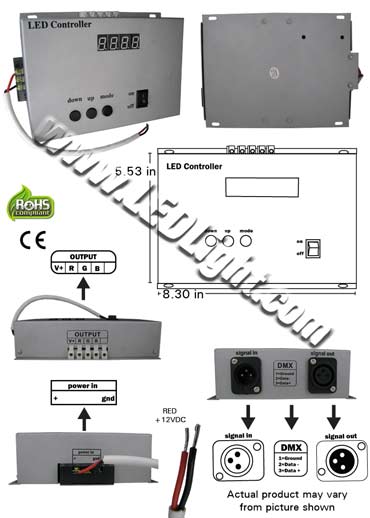

RGB Controller 12 Volt DC 300 Watt Master/Slave Synchronization. Use this controller for long RGB synchronization effects. Each controller can be wired together for very powerful RGB effects using a master slave setup. This LED controller measures approximately 8.30 inches by 5.53 inches. Can only be used with common anode products. Operating tempature -20 to 60C. Supply voltage 12 Volts. Dimensions 183x138x47mm. Output three CMOS drain-open output. Max load current 4 Amps each color or channel. Common anode. Control mode is the mode function button, pressed once, color/style changed by one, there are 14 changes in all. Presss button UP to speed up color changing, press down to slow down. Style/color changing table 0 static black, 1 static red, 2 static green, 3 static yellow, 4 static blue, 5 static pink, 6 static cyan, 7 static white, 8 entire stroaboflash, 9 three-color jumping change, 10 three color flowing water, 11 seven color jumping change, 12 gradually change, 13 automotically. Connect red wire to plus +12 VDC. Connect black wire to ground. Never connect anything else but 12 Volts DC. Never connect two wires directly to case.
