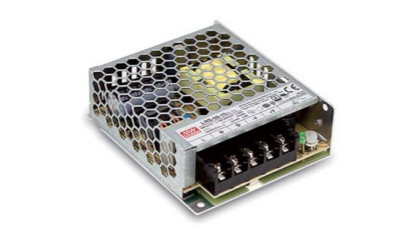

85 -265 VAC input wide voltage, 12 Volt DC output, 50 Watt, Mean well quality. Withstand 300 VAC surge input for 5 second. No load power consumption < 0.2 watt. Miniature size and 1U low profile. High operating temperature up to -30C to 70 C. Short circuit, overload and over voltage protection. Cooled by free air convection. Compliance to IEC/EN 60351-1(PD3) IEC/EN61558-1, -2 -16 for household appliances. Operating altitude up to 5000 meters. Withstand 5G vibration test. High efficiency, long life and high reliability. LED indicator for power on. 100% full load burn-in test. Long warranty. Made by MEAN WELL. Approximate size 3.62" L x 3.22" W by 1.1" thick. Overload and over current protection. 47-63Hz operating. Safety standards UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 2 16 approved. Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC. MTBF 645K hrs min. MIL-HDBK-217F (25). Voltage adjust range 10.2 ~ 13.8V.
| |
