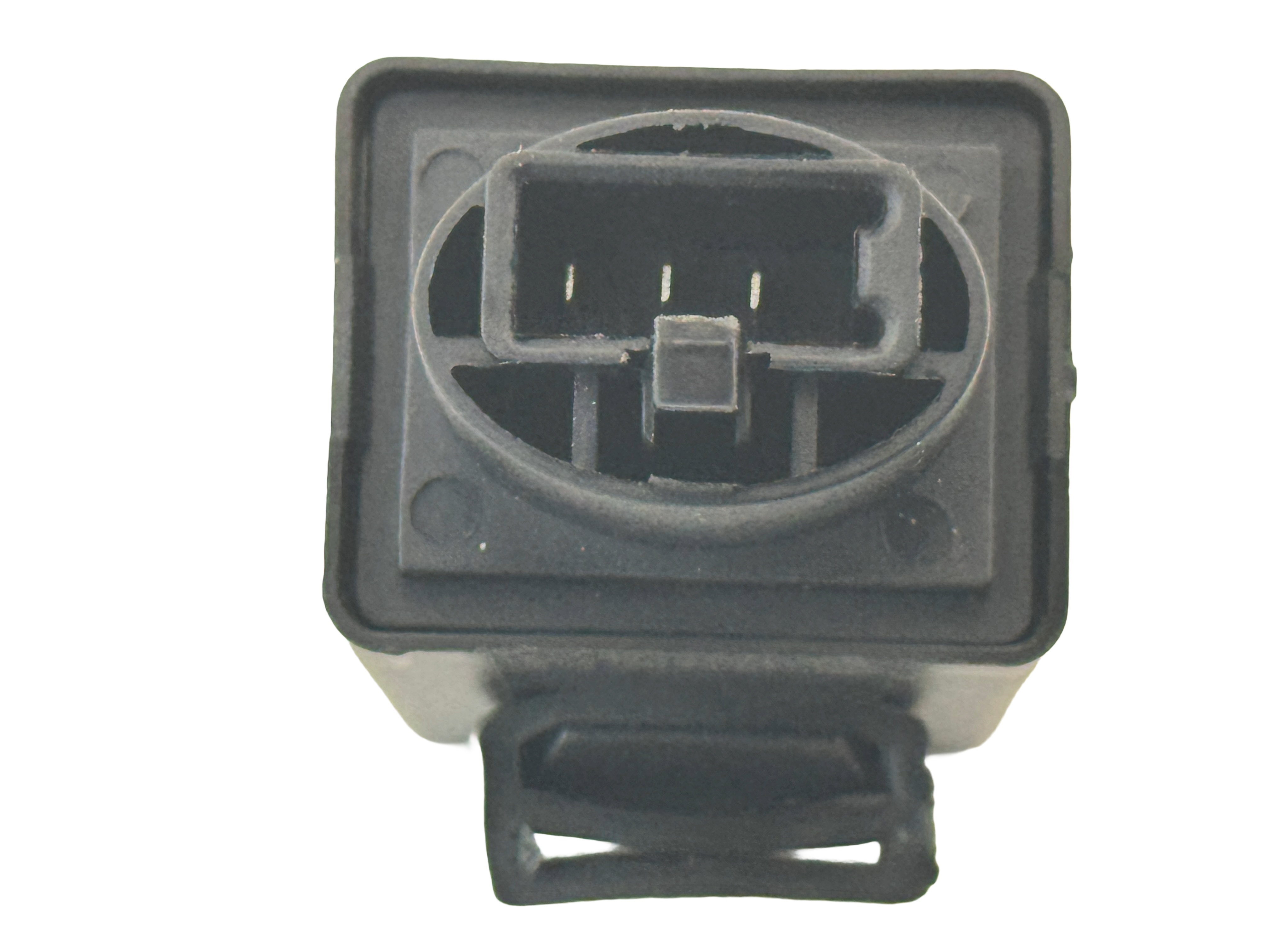

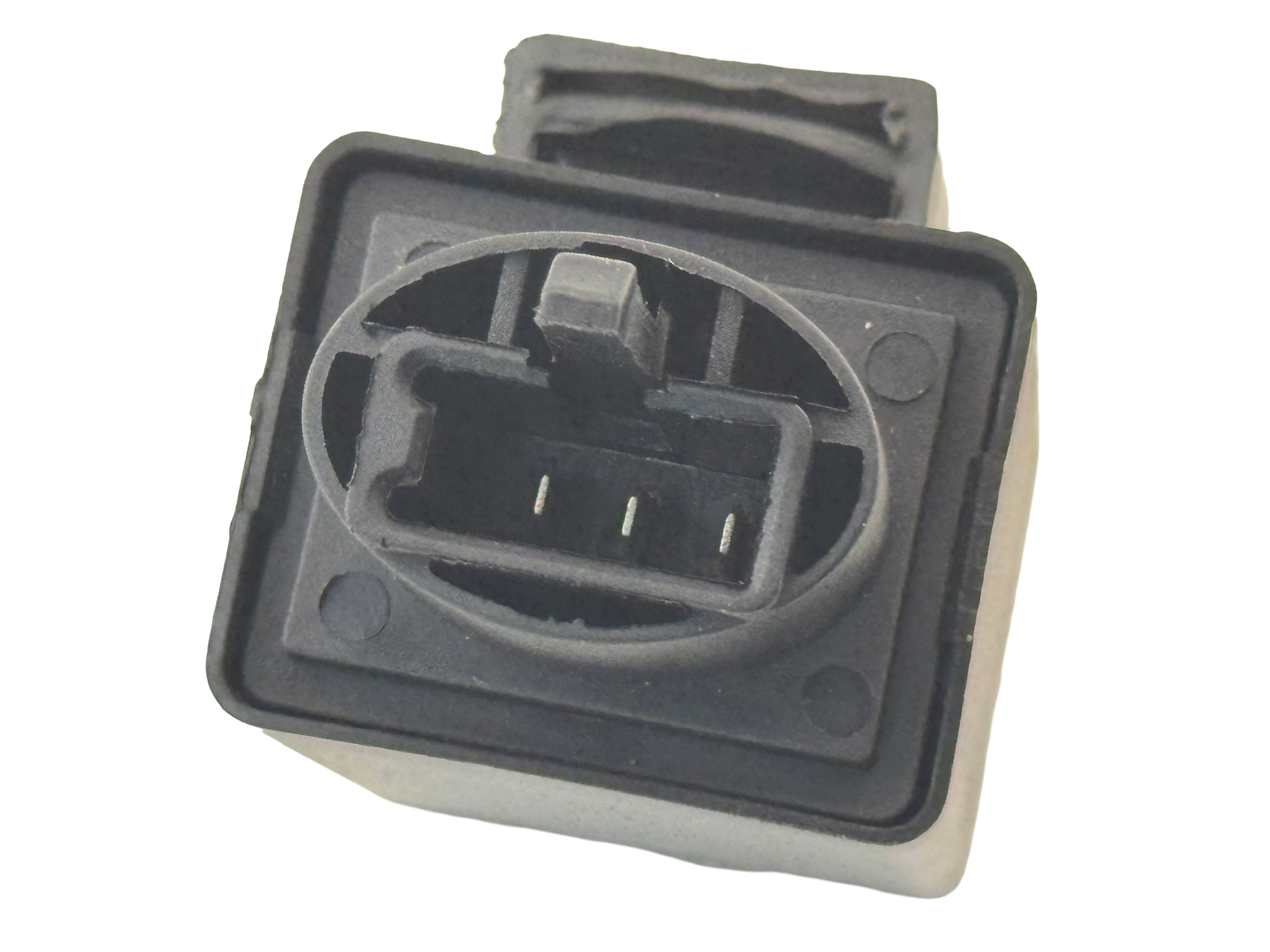

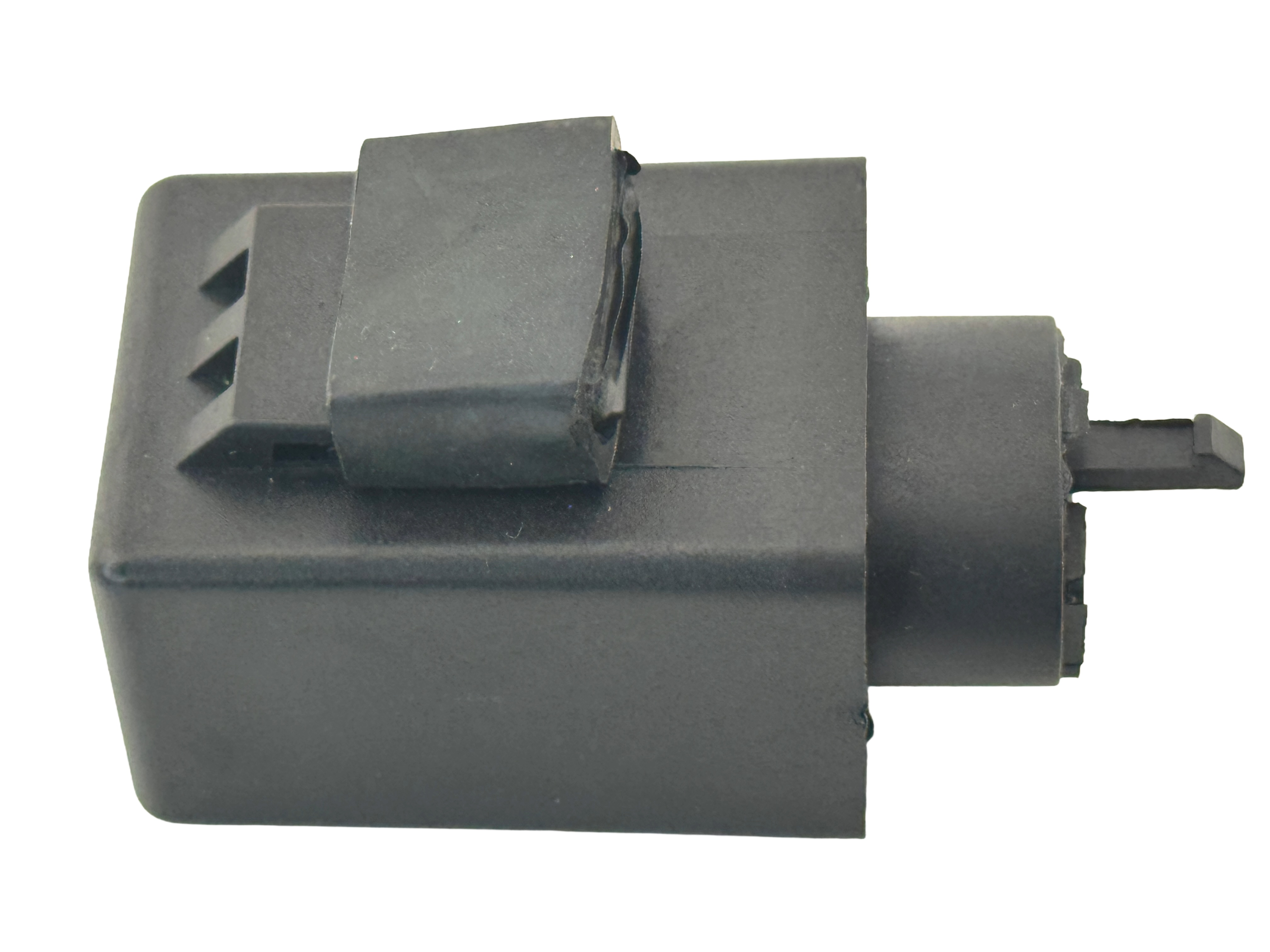

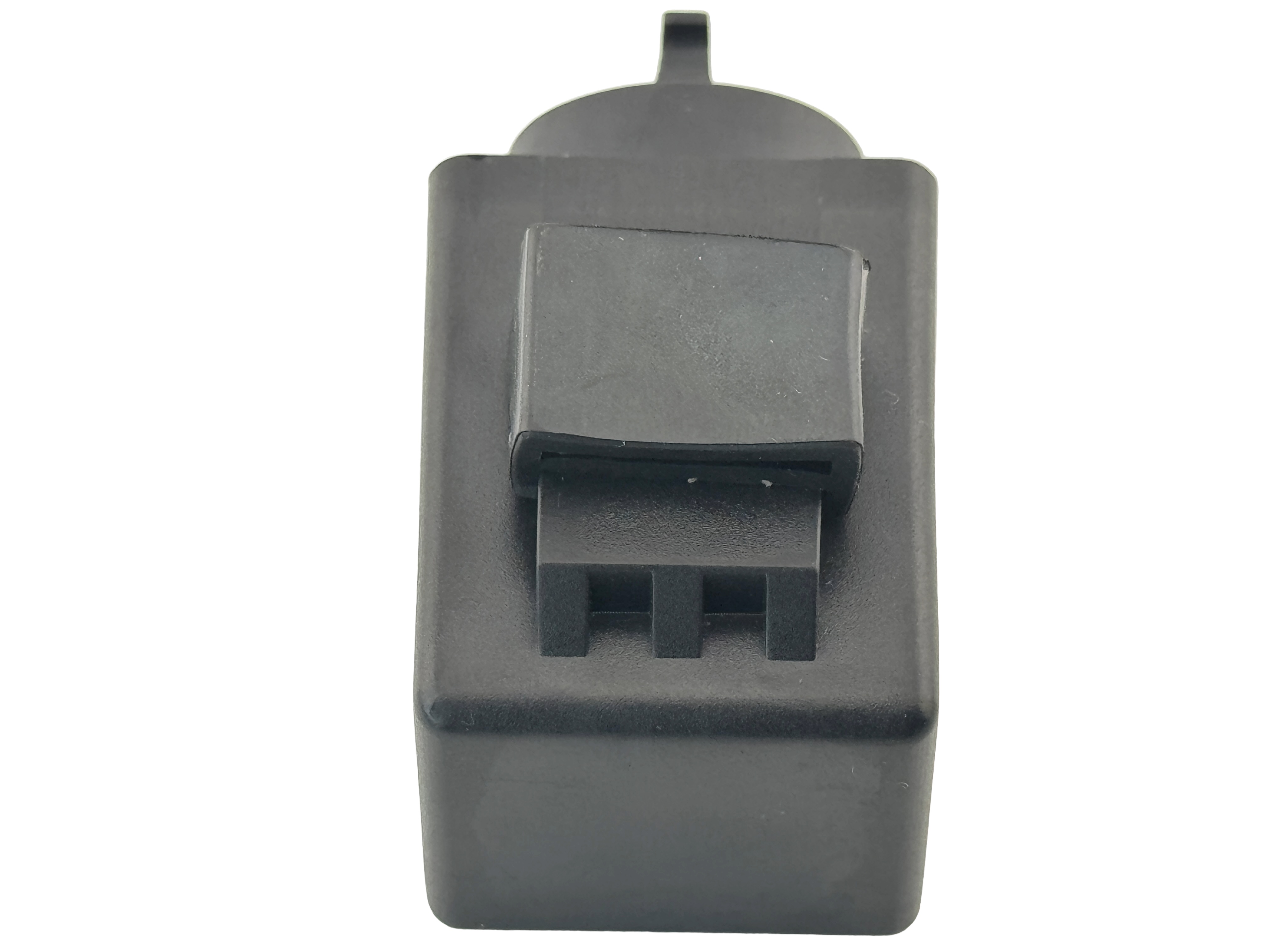

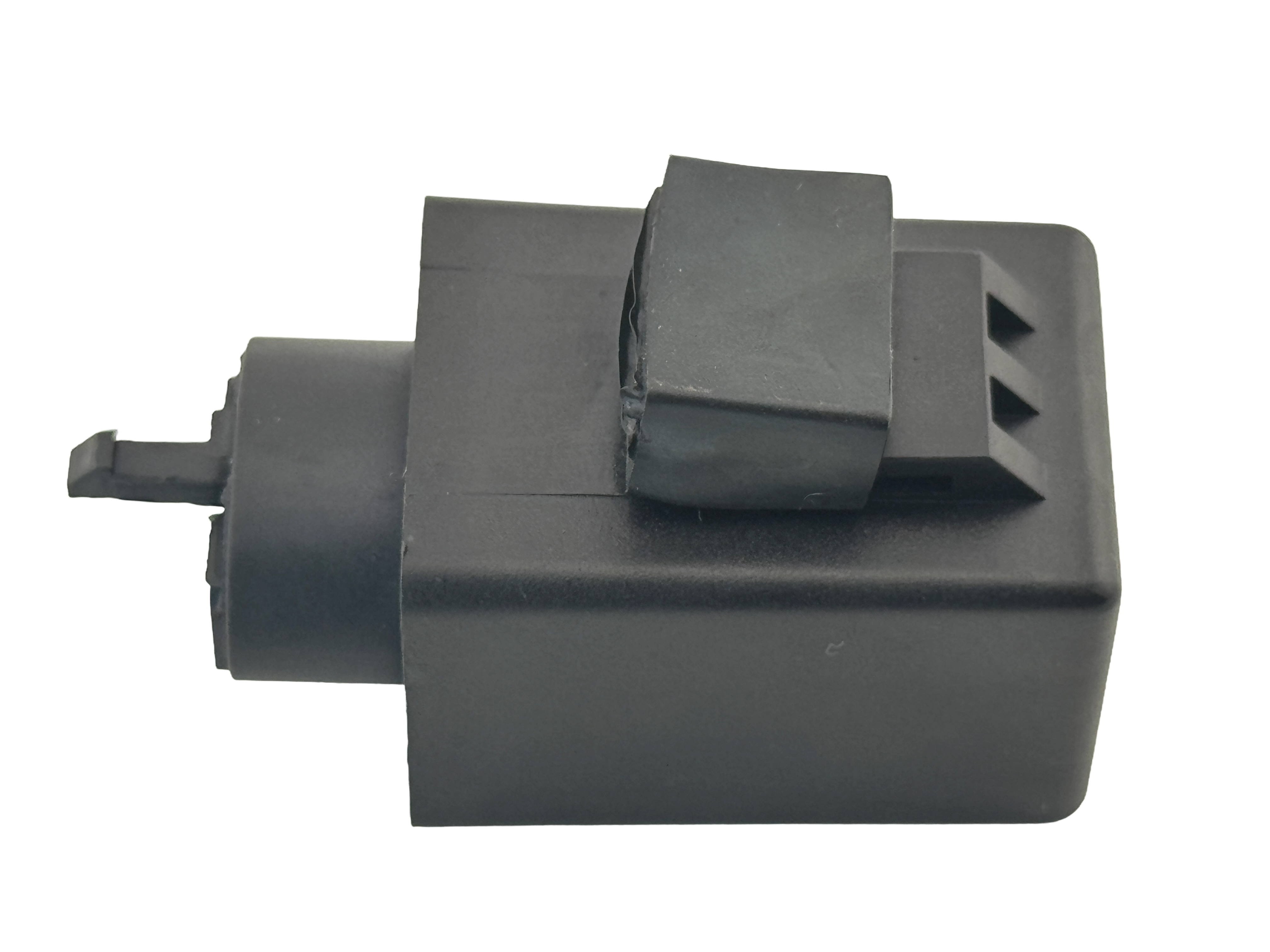

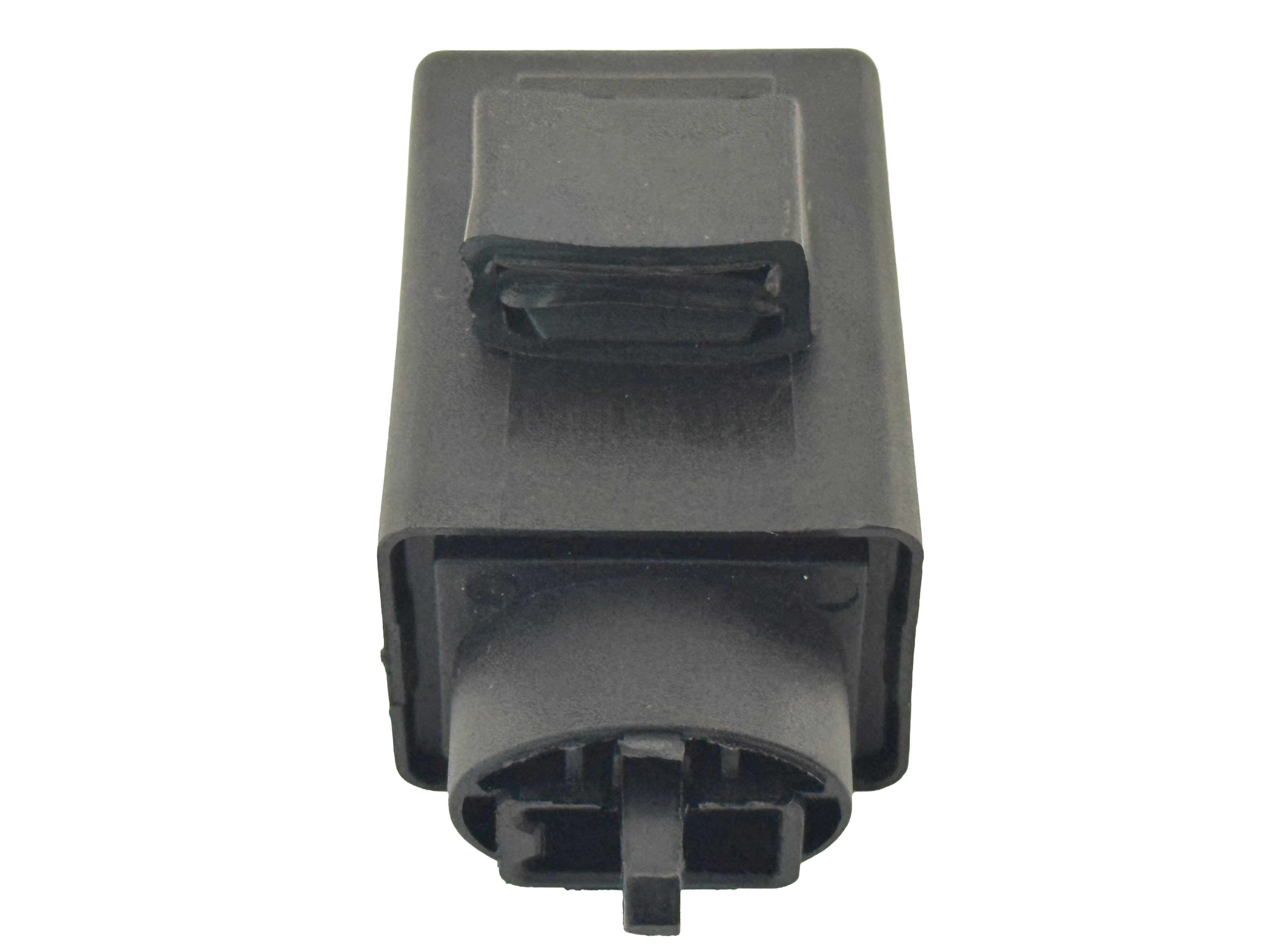

LED flasher for motorcycles. Up to 100 Watts to power multiple LED or incandescent light bulbs. Very easy to install, disconnect power, remove old flasher, install new flasher, reconnect power. Plug and play L.E.D. compatible flasher. Rated for 12 volt DC. The relay blinker will operate from 8 volts DC to 16 volts DC.

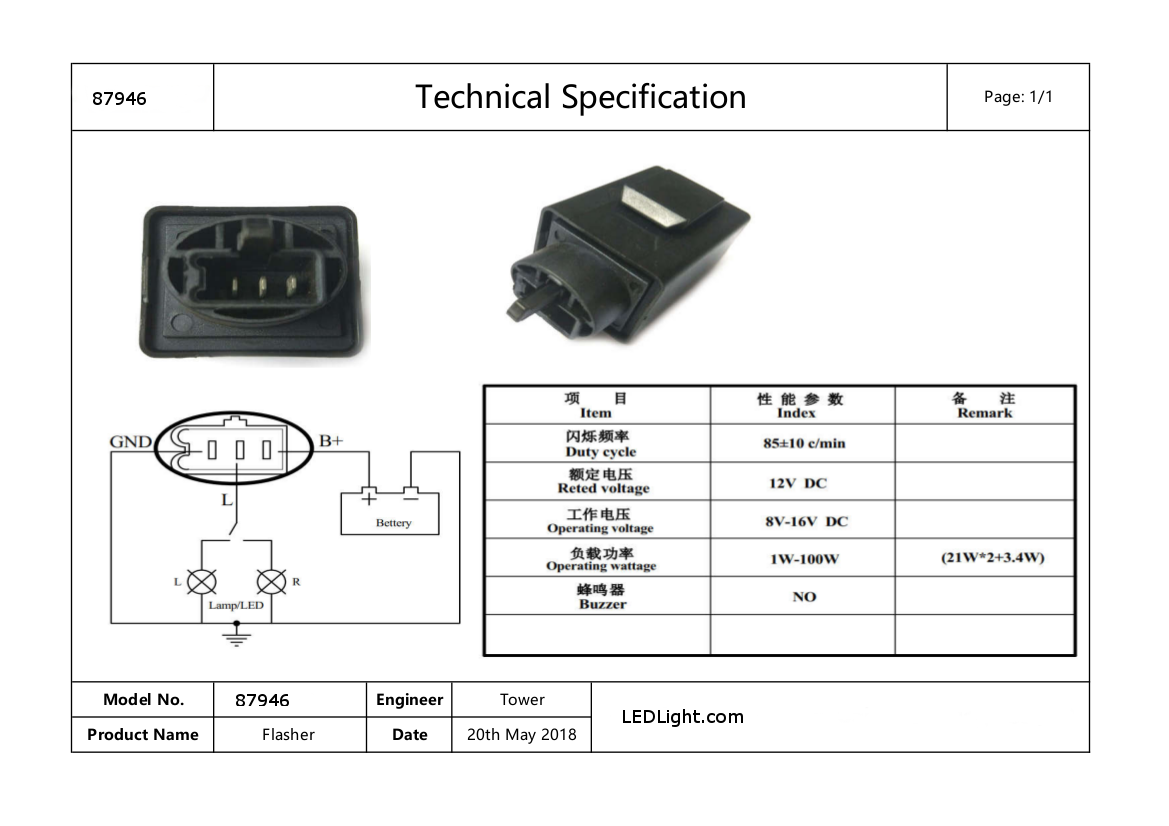

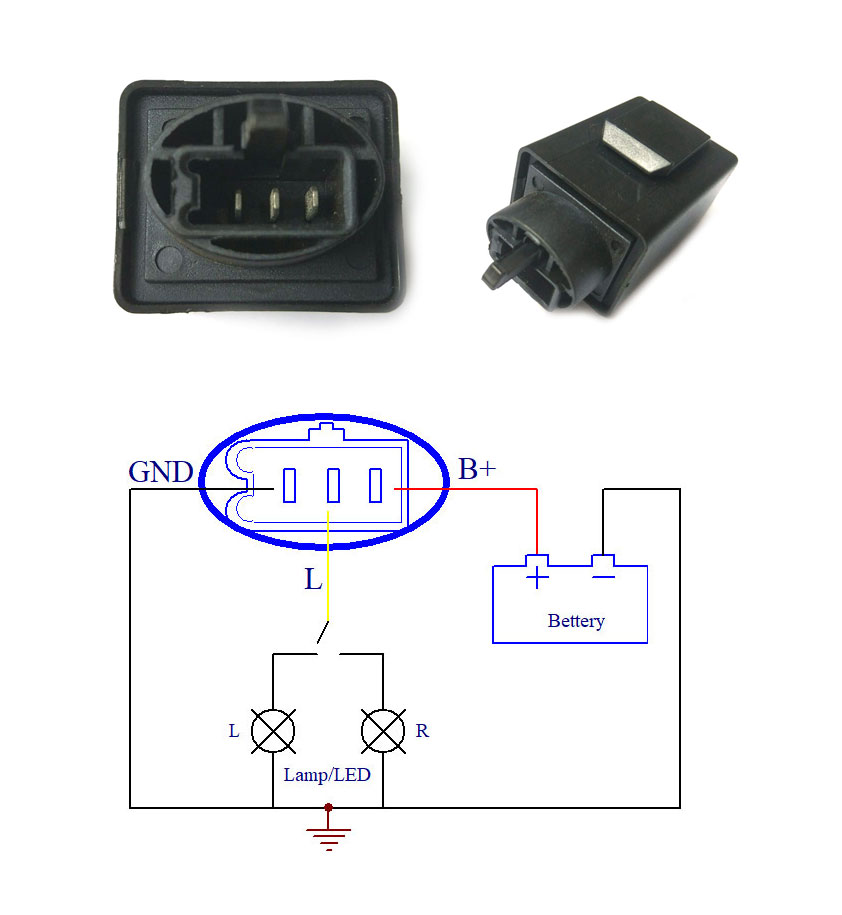

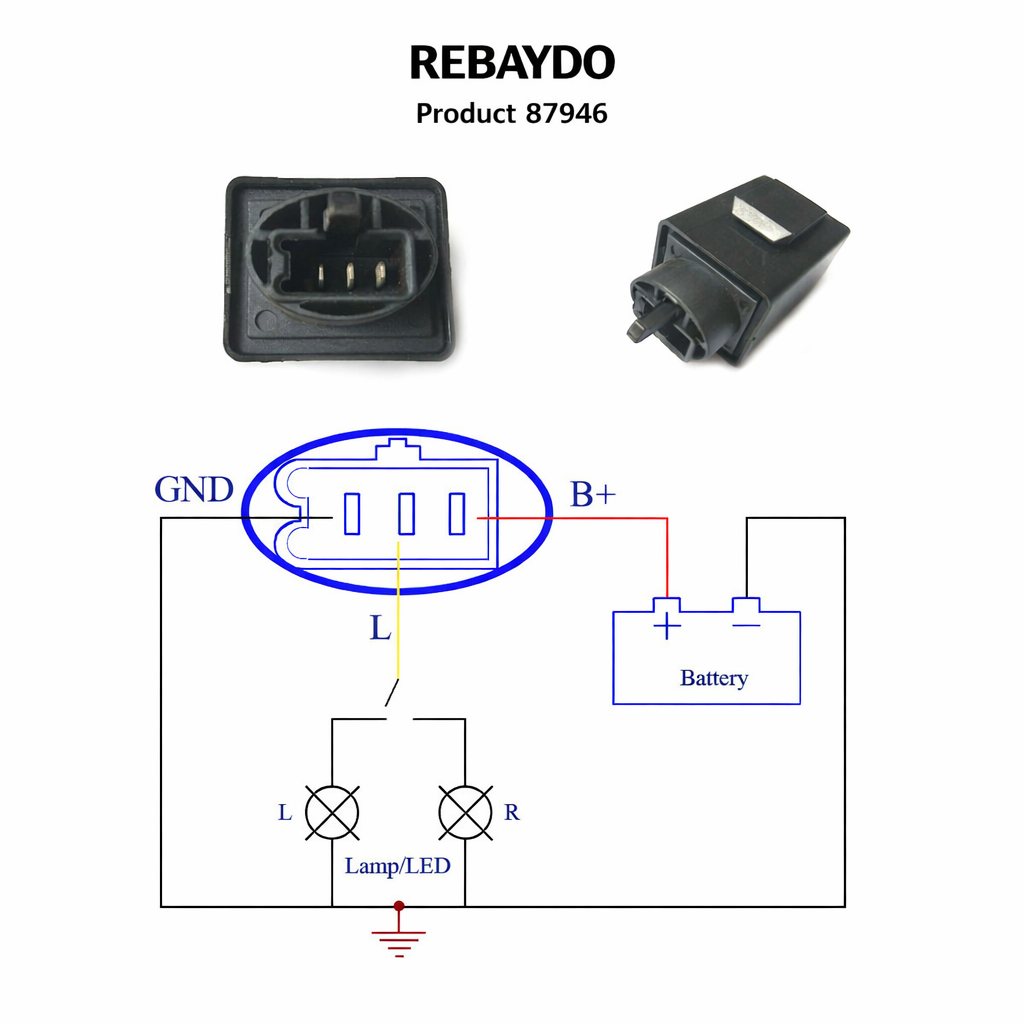

Specifically designed to decode or eliminate hyper flashing due to use LED lights. The relay blinker is CE and Rohs listed. The flasher has a rated flashing life 400 hours. The led flasher duty cycle is from 30% to 70% 85+-10 c/min. The flasher has three terminals. The first terminal goes to the positive battery terminal. The second terminal goes to ground. The third terminal goes to the turn signal level common terminal also called the winker switch. The load can be either LED or incandescent. Please make sure to connect the anode of the turn signal lamp to the turn signal level for the correct side either L or R. Connect other end of the turn signal lever to the other turn signal lamp. Then connect the cathode of the led blinker to ground. This led flasher does not have a buzzer when the turn signal level is activated. This relay flasher is compatible with:
Compatible with:
38301-MEG-000
