LED Module High Power 0.72 Watt SMD2835 * 3 DC12V Beam 180 IP65 NCNR

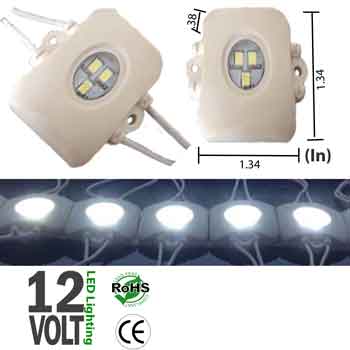

High power led module, uses three 2835 SMD leds. 12 Volt power, uses up to 1.25 watts. Up to 125 Lumen output per module. IP 65 rated. Viewing angle 120 degrees. CE & Rohs listed. .34 x .34 mm. Has two mounting holes. Each mounting hole is .110" in diameter. Spacing between modules 100mm center to center or about 1.4". Available in White 6000K. 6.5" spacing between modules. 20 modules per string. Modules are cut with 3.25" wire on each end. Modules are dim-able using a variable voltage supply. Each string is about 11 feet 4 inches in length. Each module uses .090 Amps @ 13.8 Volts DC. Each module is comparable to a 10 Watt incandescent bulb. Each module has 3M double stick tape. Each model is 1.71" L x 1.36" W x .38" D. We will try to cut to desired module quantity in a single string but may have to cut multiple strings to complete the order.
