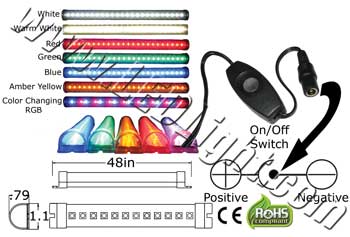

Up to 500 Lumen output. 40 Watt fluorescent tube light equivalent. 24 Watts power consumption. 430 ma current consumption. Available in white 6000 K, warm white 3000 K, red 630 nm - 780 nm, green 500 nm-570 nm, blue 420 nm-470 nm, amber/yellow 570-600 nm and color changing RGB. RGB sequence cycles in 22 seconds. Available in 6" with 12 LEDs, 12" with 24 LEDs, 24" with 48 LEDs, and 48" with 96 LEDs. Long life of 60,000 hours. Tube Diameter approximately 15/16 Inch. Operating voltage 12V DC. Back side is flat. 12, 24, 48, and 96 Super Flux LED Lights. The tube is rigid. The use of our power transformer # 65987 is recommended. This transformer is designed for these tube lights and will help prevent premature LED burnout. Extremely durable, shock proof, vibration proof, Monochromatic (pure) color, low heat generation and, virtually unbreakable. Great for fluorescent tube replacement in the home or business also great for shelf accent lighting in the home, RV or at the office. On/Off switch included on the 12 inch LED tube lights. LED Tube is made of acrylic plastic, with mounting screws on each end. For RVs, Buses, Trains, Task Lights, Cabinets, Boats, ect. Only one LED Tube Light can be hooked up to one power adapter. Up to 4 feet can be run from one power supply. To calculate how many tubes lights you can operate with larger power supplies divide the power supply wattage buy the tube light wattage. Transformer Sold separately (Not included). The RGB version has its own RGB controllable built in and can not be controlled by our other RGB controllers. The externally controlled RGB works great with 3 Channel RF controller part number 74324 and 3 Channel repeater part number 54324 to have your tube light in sequence for extended distances. This product can be dimmed by a variable D.C. power supply. The wire harness is 38 Inches long with switch and female plug.
|
Recommended Items: |
|
|
|
|
|
Tube Light 6" Led Low Voltage 12 Volt DC Plug & Switch
|
Product Code:
34563
|
Price USD:
$9.99Quantity Pricing Available |
|
70 Lumens. 10 Watt fluorescent tube light equivalent. 3 Watts power consumption. White, warm white, red, green, blue, yellow and RGB. 60,000 hour life. 12 Volt DC On/Off switch. 15/16 inch diameter with a flat backside. LED Tube Light 12 VDC. Dimmable. |
|
|
|
|
|
|
|
|
Tube LED 12 Watt 12 Inch Switch & Plug 12 Volt DC 120 Degree
|
Product Code:
69283
|
Price USD:
$19.99Quantity Pricing Available |
|
140 Lumens. Comparable to a 20 Watt fluorescent tube light. Uses 6 Watt power consumption. White, warm white, red, green, blue, yellow and RGB. 60,000 hour life. 12 Volt D.C. On Off switch. 15/16 inch diameter with a flat backside. LED Tube Light. |
|
|
|
|
|
|
|
|
24 Inch L.E.D. Tube Switch & Plug 12 Volt DC
|
Product Code:
89456
|
Price USD:
$34.99Quantity Pricing Available |
|
280 Lumens. Comparable to a 20 Watt fluorescent tube light. 12 Watts power consumption. White, warm white, red, green, blue, yellow and RGB. long life up. 12 VDC On/Off switch. 15/16 inch diameter with a flat backside. LED Tube Light 12 VDC. Dimmable. |
|
|
|
|
|
|
|
|
Y Cable Harness
|
Product Code:
35673
|
Price USD:
$0.97Quantity Pricing Available |
|
The Y cable allows one power supply to be hooked up to multiple tube lights 34563 at the same time. The cable has 5.5mm male and female plugs. |
|
|
|
|
|
|
|
|
Dimmer DC Terminal 12-24VDC One Channel 24W
|
Product Code:
22572
|
Price USD:
$3.38Quantity Pricing Available |
|
Dimmer/DC Terminal 12-24VDC One Channel 2A 12V/24W. Use this between power supply and low voltage tube light. No tools needed to have low voltage dimming. Has both male and female 5mm plug and socket to fit our power supplies and led tube lights. |
|
|
|
|
|
|
|
|
3-Way LED Light Harness Cable 12VDC White
|
Product Code:
34589
|
Price USD:
$2.79Quantity Pricing Available |
|
3-Way LED Light Harness Cable. Great for use with multiple lights. This harness allows you to plug 3 different tube lights, modules or other LEDs to the same power source. |
|
|
|
|
|
|
|
|
LED Light Tube Custom Harness
|
Product Code:
67452
|
Price USD:
$3.99Quantity Pricing Available |
|
Use this custom harness to connect LED Tube Lights part number 34563 to the 50 Watt part number 44397 or 150 power supply part number 32896. The wire is 18 Inches long. |
|
|
|
|
|
|
|
|
Power Supply LED Light Custom Harness
|
Product Code:
94350
|
Price USD:
$2.99Quantity Pricing Available |
|
Use this harness to connect the LED Power Supply 65987 to flexible led light part number 49587 or to connect other 12 VDC products to the LED power supply. The harness length is 18 Inches. |
|
|
|
|
|
|
|
|
5-Way LED Light Harness Cable 12VDC White
|
Product Code:
33287
|
Price USD:
$5.99Quantity Pricing Available |
|
5-Way LED Light Harness Cable. Great for use with multiple lights. This harness allows you to plug 5 different tube lights, modules or other LEDs to the same power source. |
|
|
|
|
