LED Module 4 5050 LED 12 Volt DC

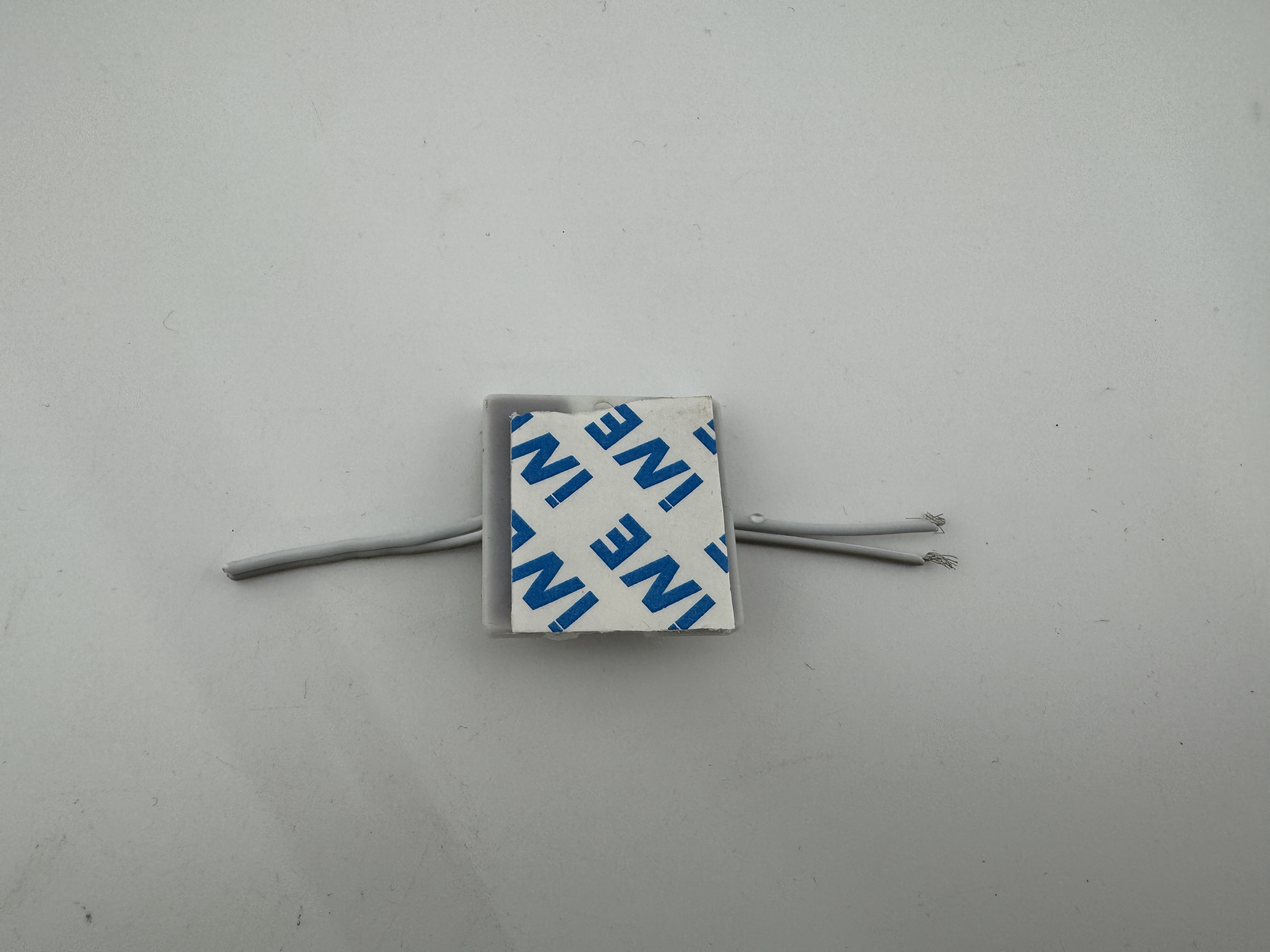

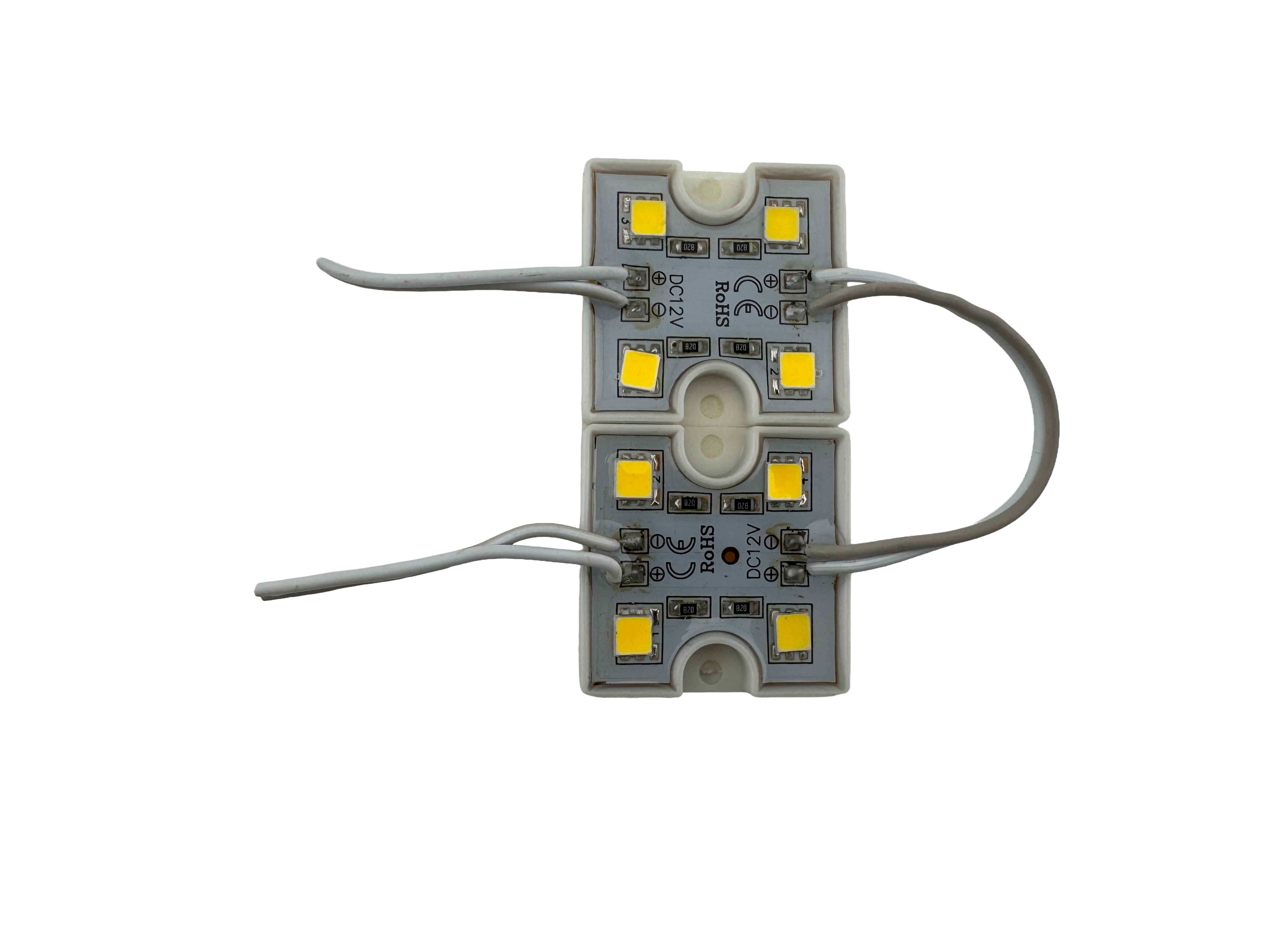

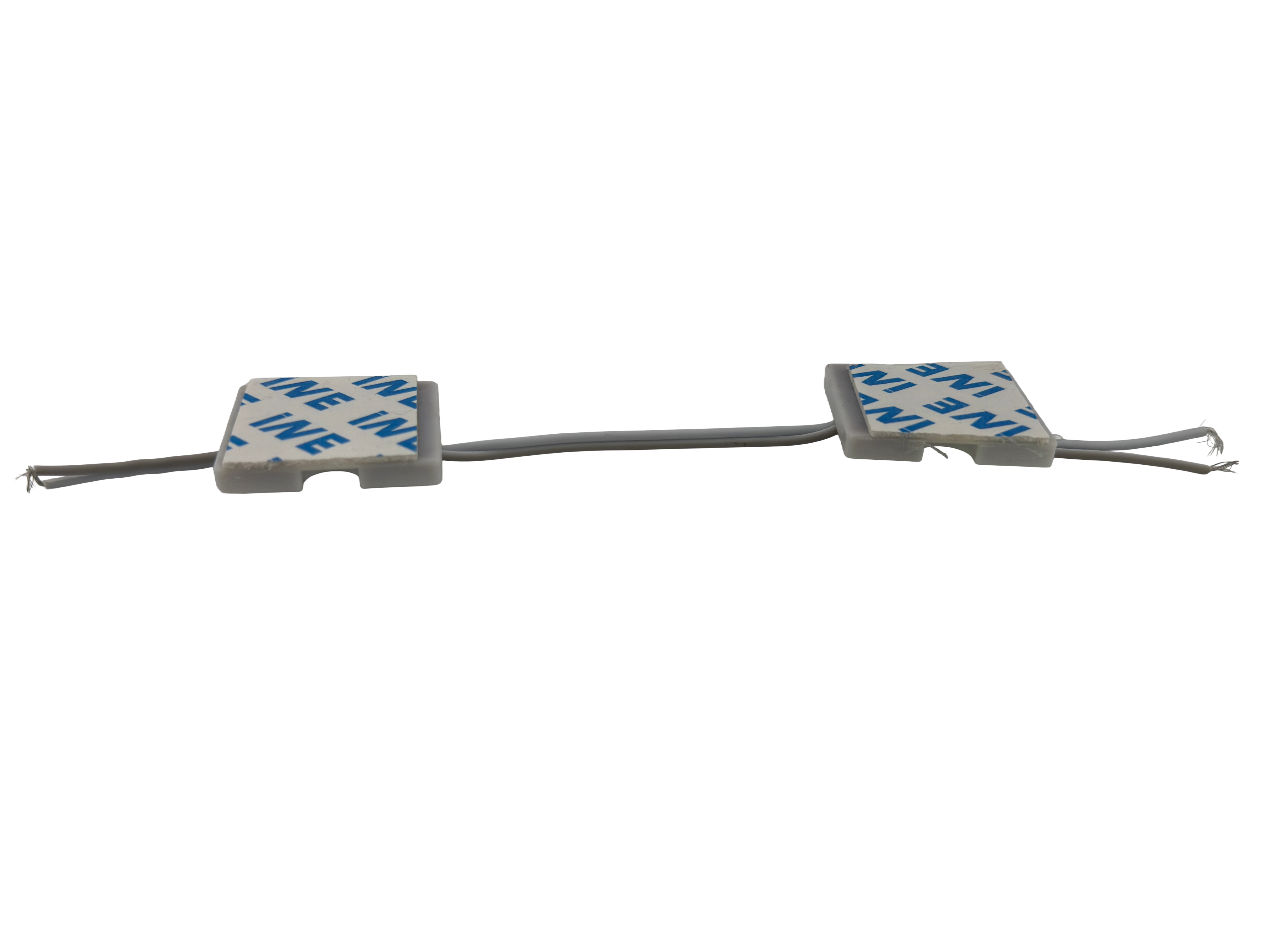

LED Module 4 5050 LED 12 Volt DC. Each module uses .96 Watts. The +12V wire is white. The ground wire is gray. Long life up to 30,000 hours. 120 degree viewing angle. Available in Warm White 3000K. The shell color is white. The approximate size is 35 * 35 * 5mm. The approximate module to module spacing is 2.75". The approximate hole to hole spacing is 1.175". The approximate mounting hole diameter is 0.125". Comes 20 modules per string unless cut to size. The module is protected with a conformal coating. Each led chip can output up to 19 Lumens. The module has a Lumen output up to 76 Lumens. The module starts to illuminate around 5.30 volts. The approximate current consumption at 5.30 volts is 0.0003 amps per module. Each module uses approximately 0.96 watts. The approximate current usage at 12.00 volts is 0.076 amps per module. The shell is made from PVC. Available in White 6000K, Warm White 3000K, Red, Green, Blue and Yellow/Amber. Each module comes with double sided adhesive. IP 67 rated. The approximate module to module spacing is 2.37". Comes qty 1 module per package. CE and Rohs.
