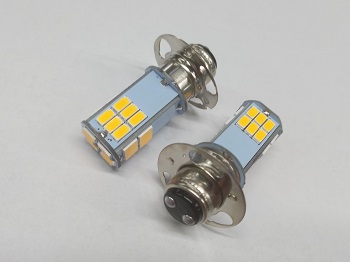

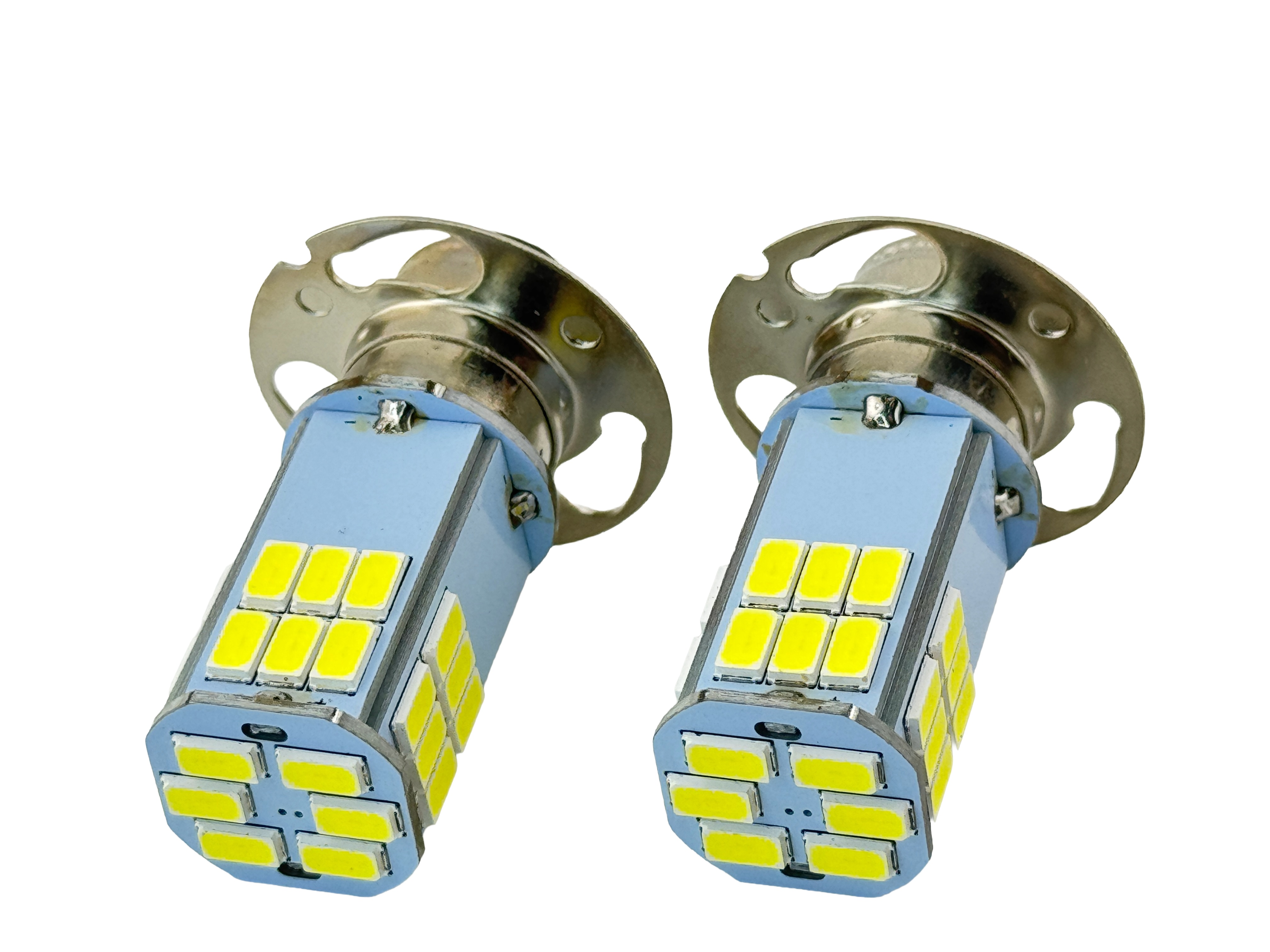

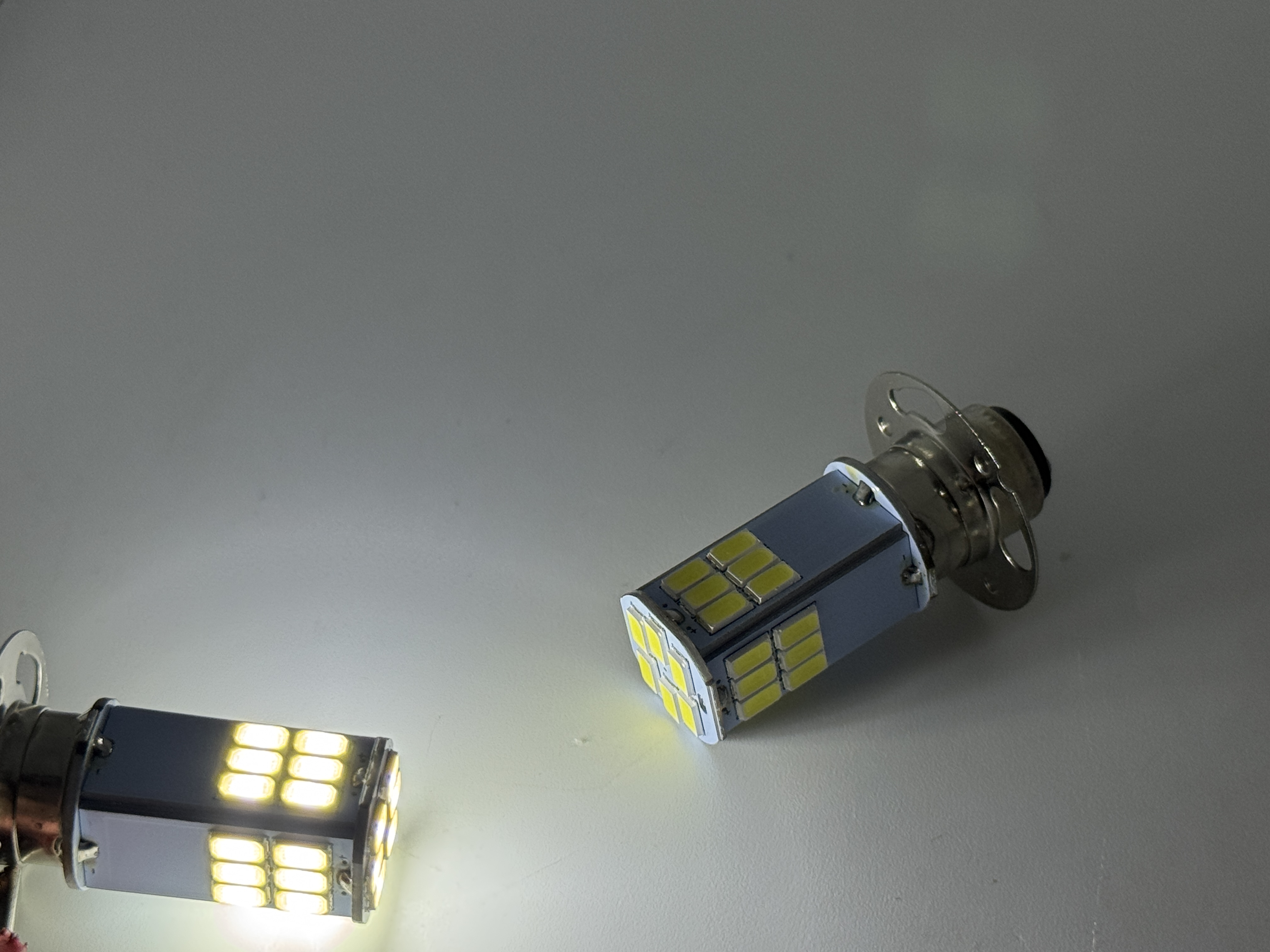

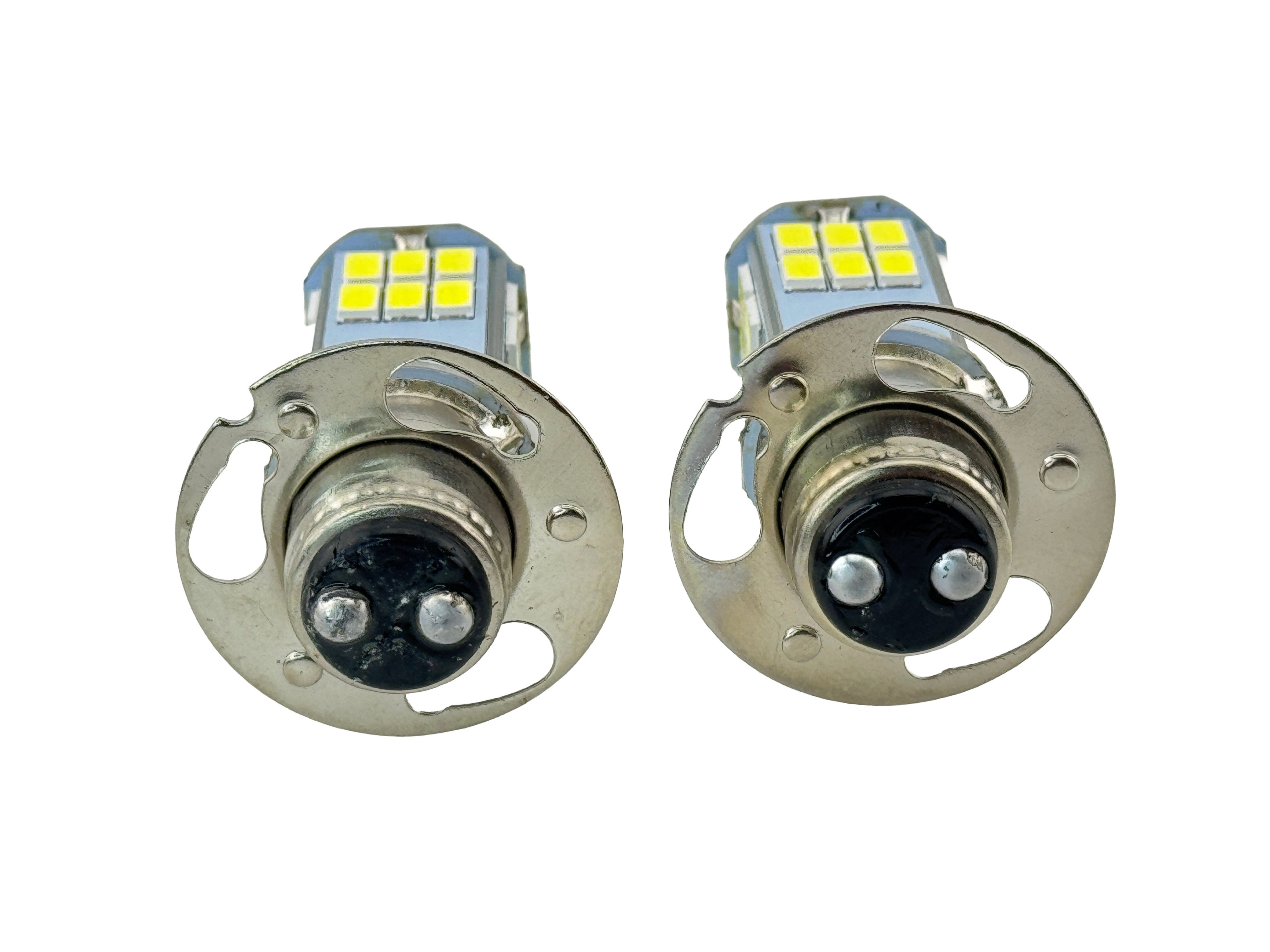

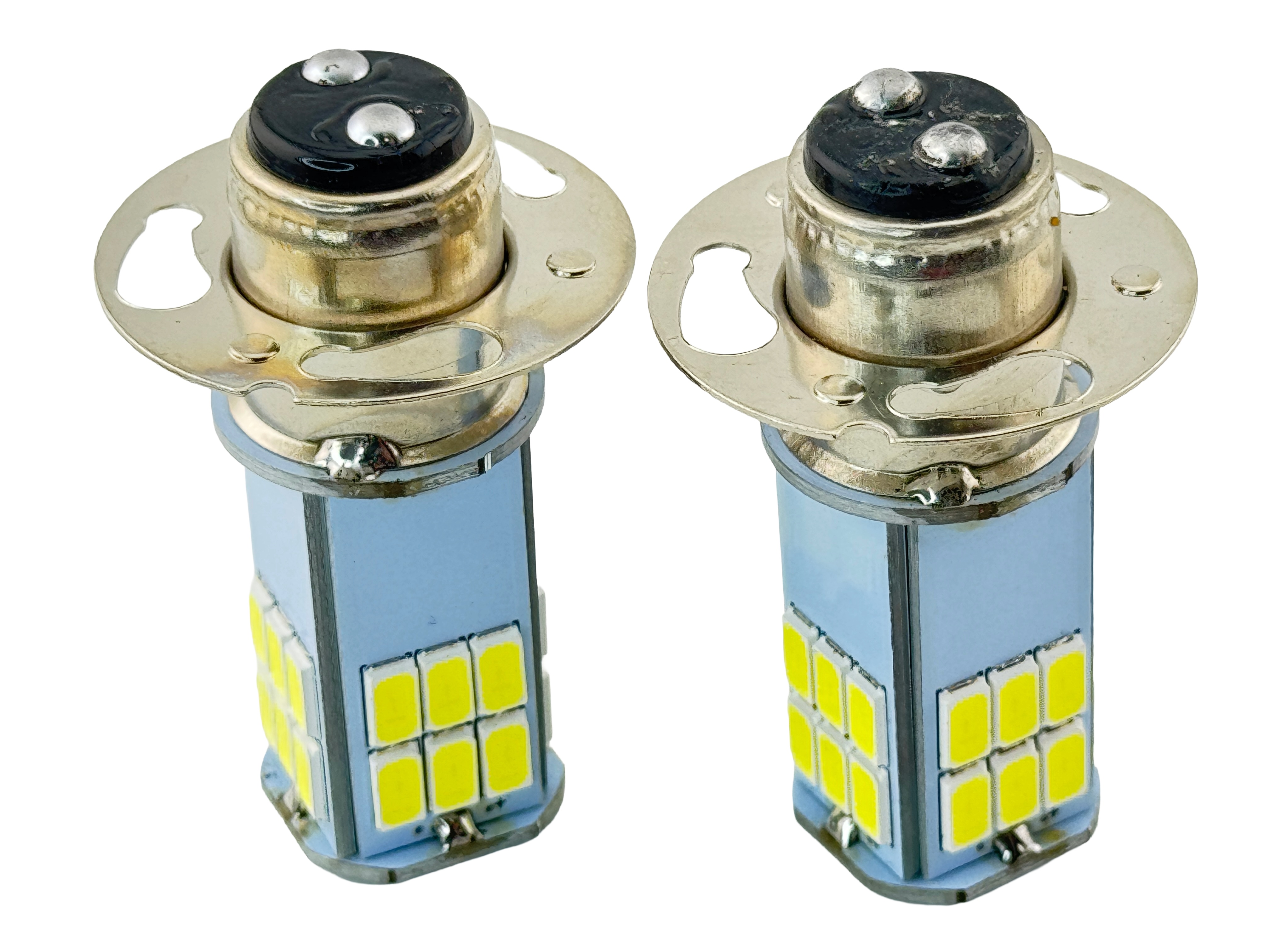

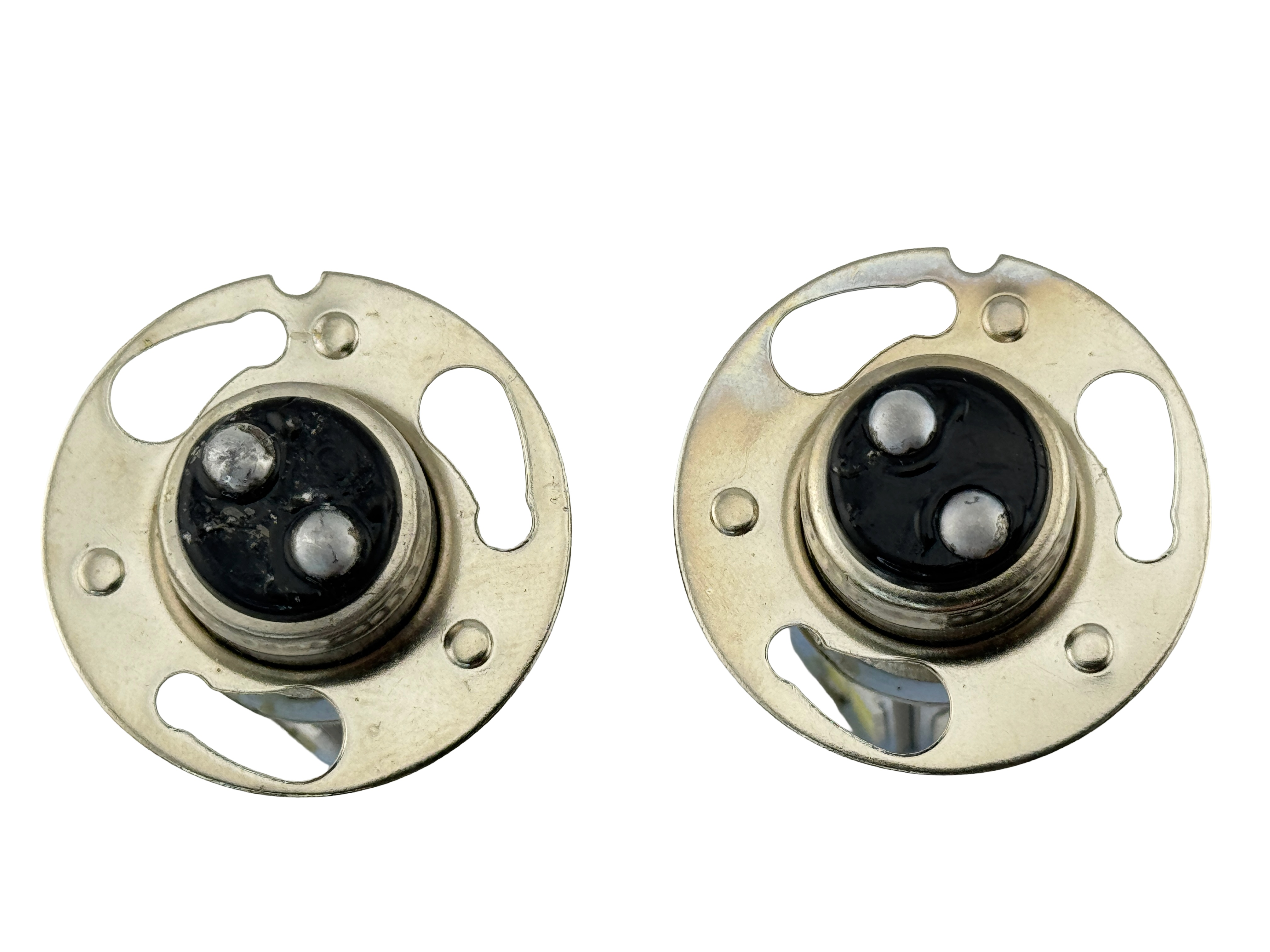

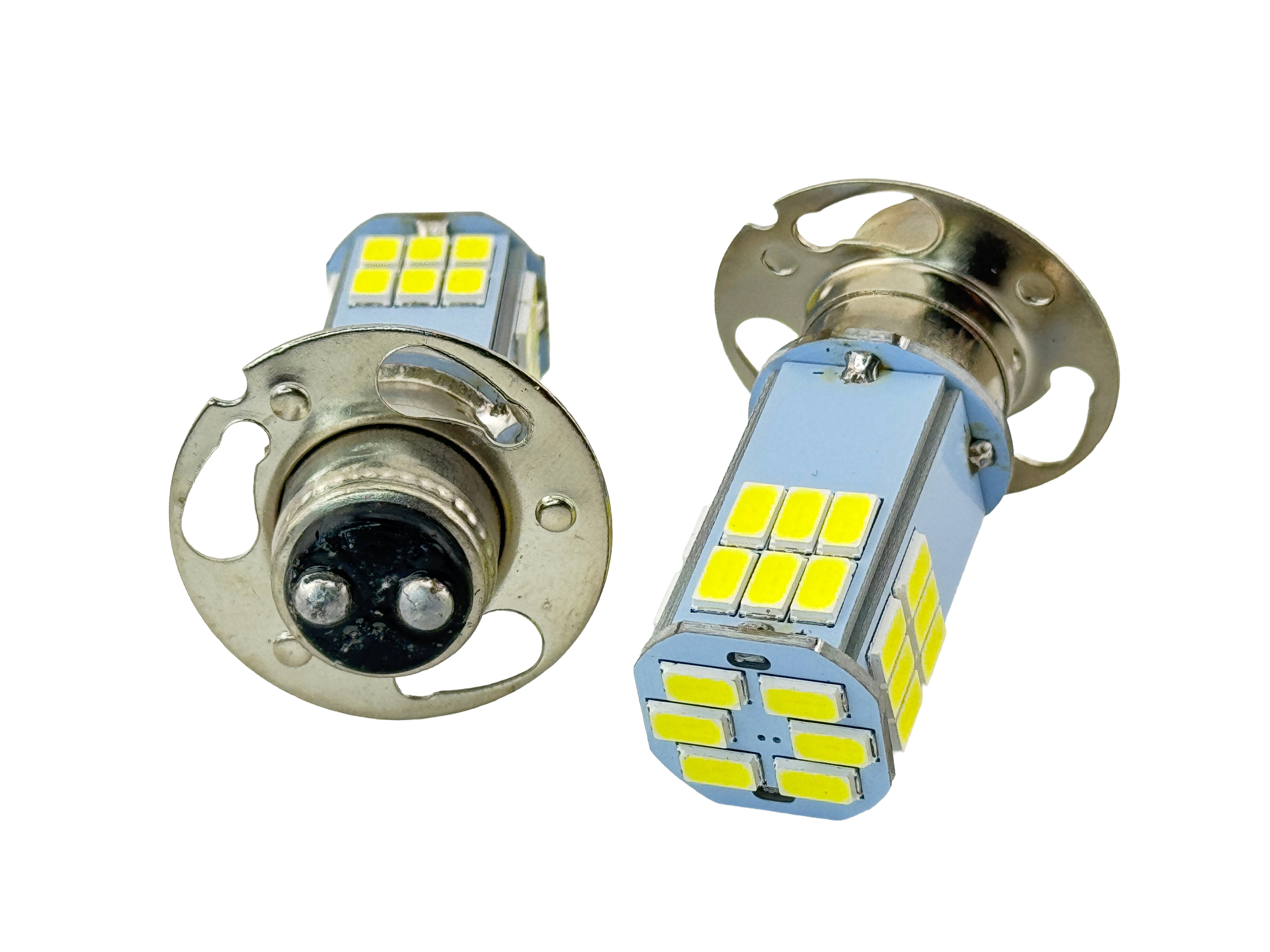

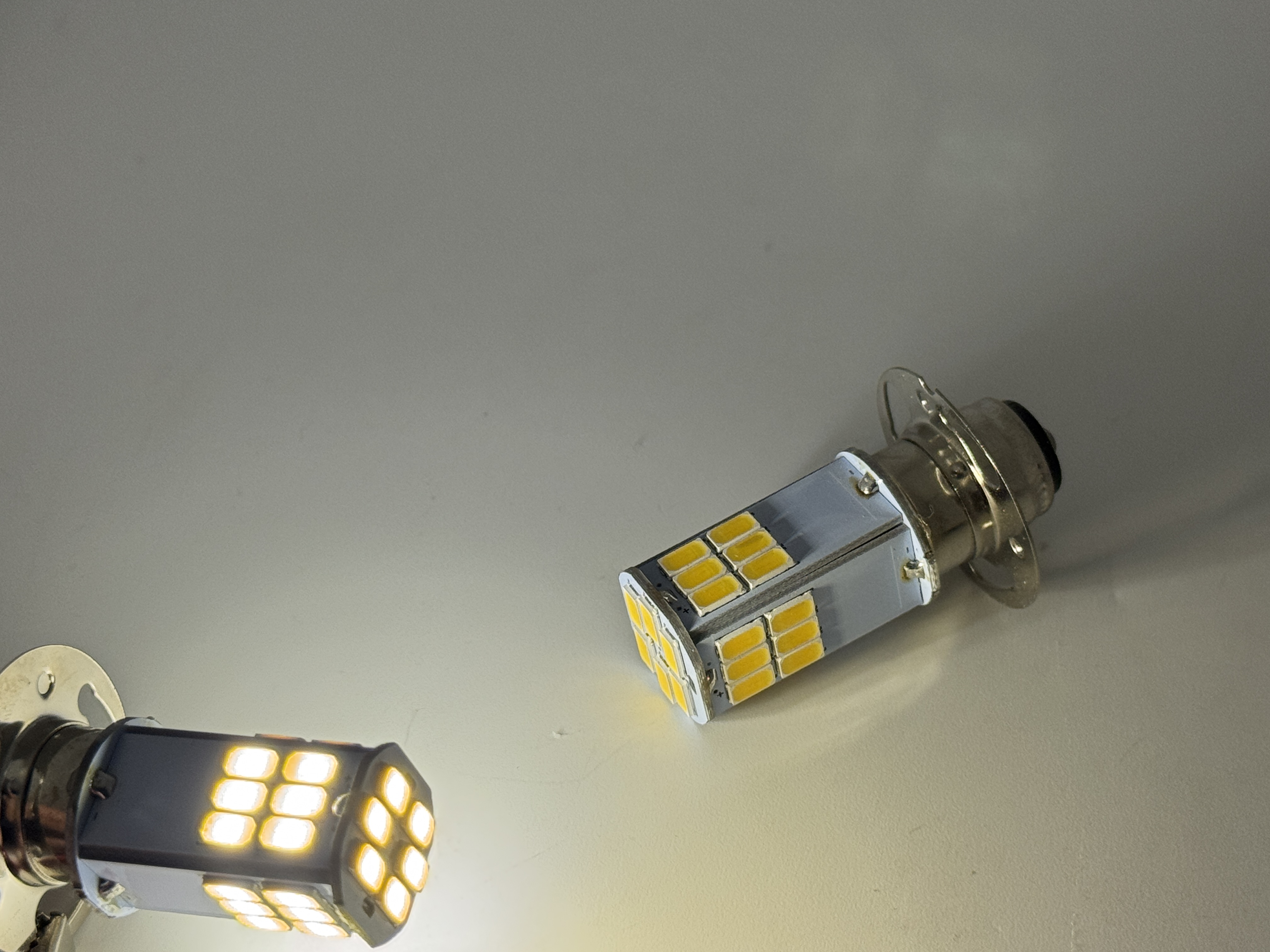

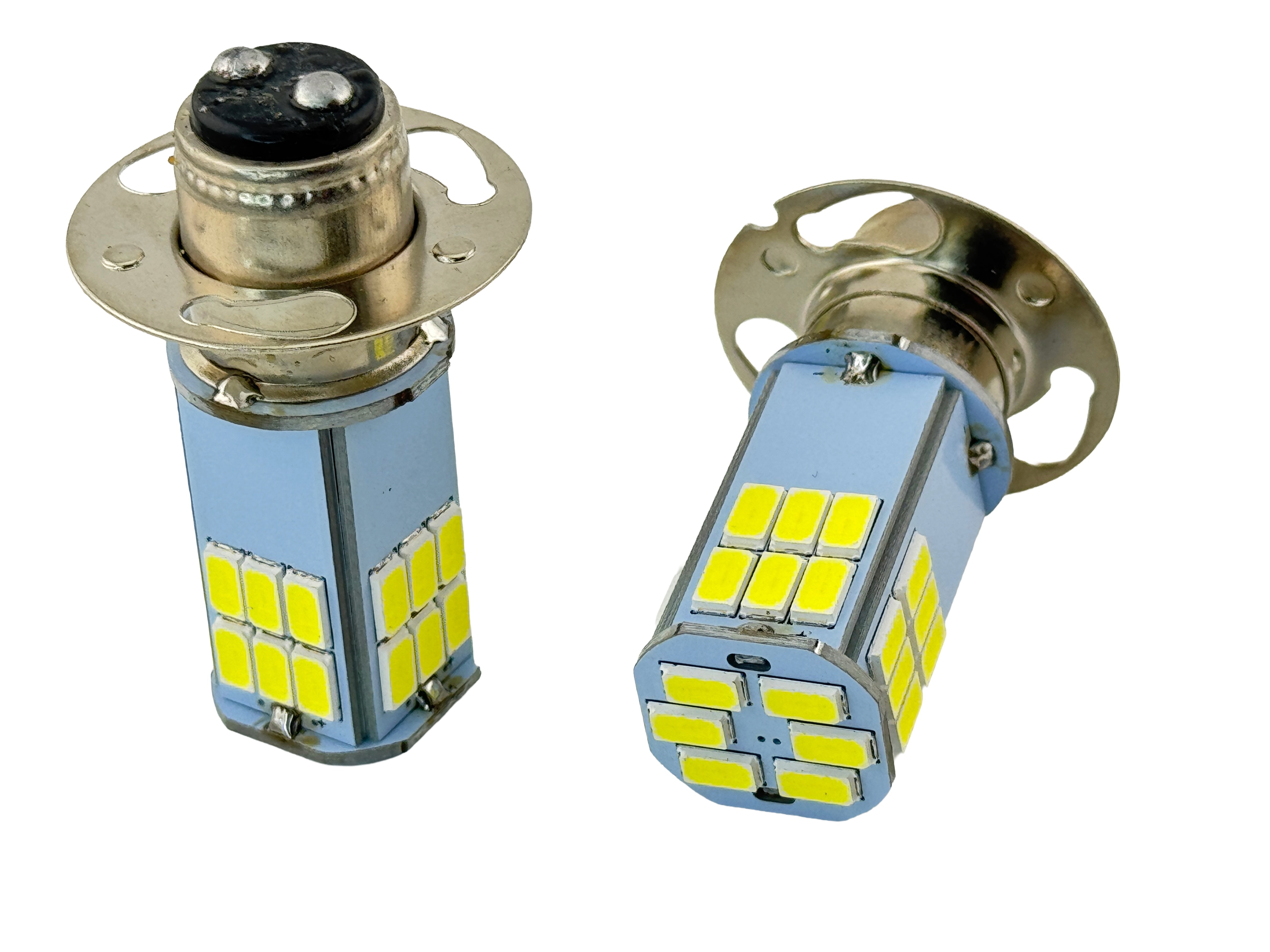

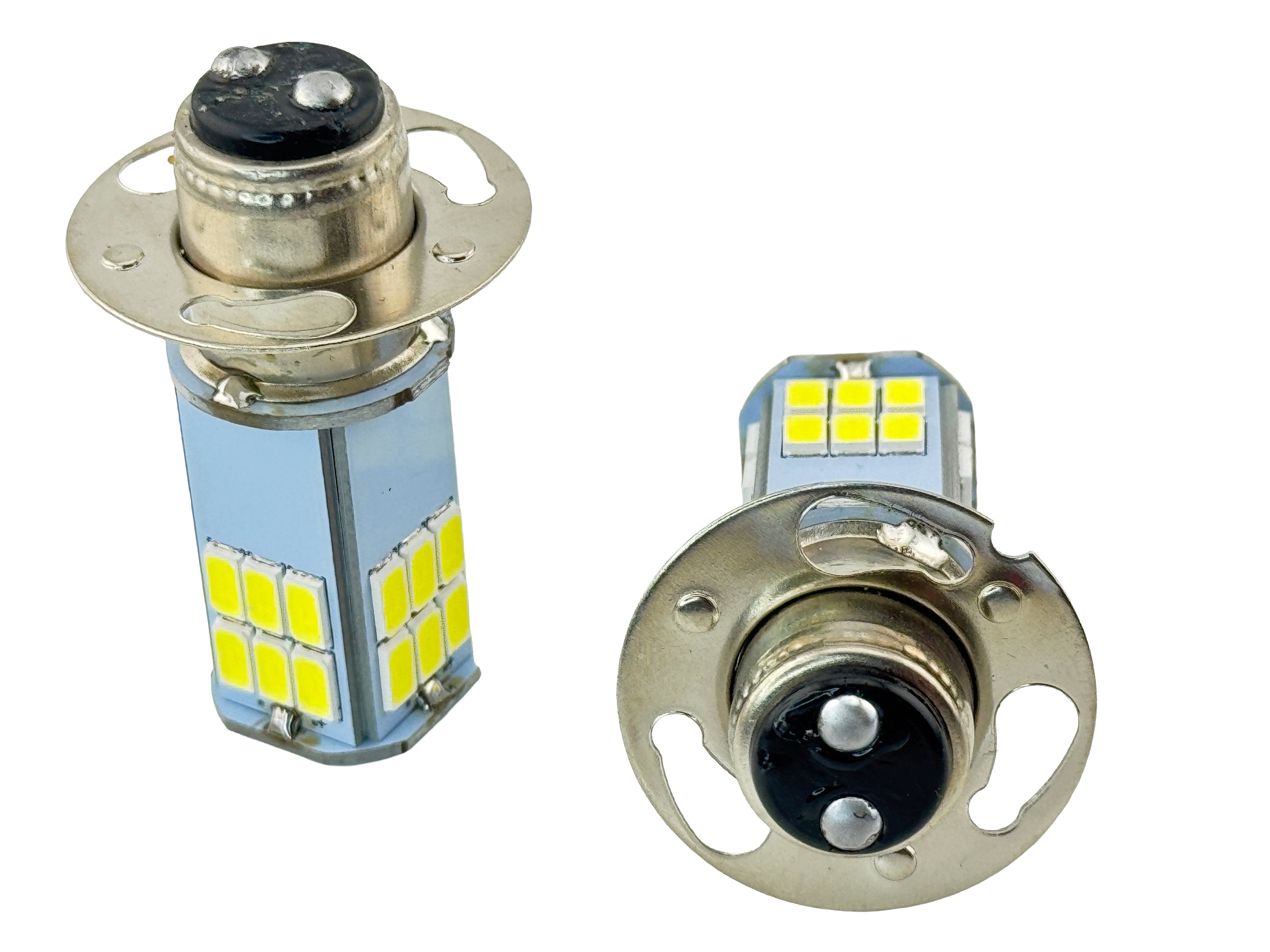

P15D-30 LED Headlight 6 Volt. This led has 30 5730 smd leds. The Lumen output is up to 800 or up to 63 CP. This bulb has been designed to be exactly like a filament bulb but using leds. The leds are is the same position as the original filament. The life is up to 30,000 hours. Please see warranty details on the same page. This bulb is available in white 6000K and warm white 3000K. The light is dim-able which works good for older vintage and classic automobiles, motorcycles and tractors. The base has 15mm base. There are two contacts on the bottom one is used for high beam and the other is used for low beam. There are 3 claws the are spaced 120 degrees for maximum support. Sometimes called DC prefocus, double contact prefocus or double contact candelabra prefocus. Please be careful when inserting or removing the bulb that the locking flange does not bind or break. Please make sure that you have a voltage regulator in your headlight circuit for your vintage bike or the led headlight will fail due to over voltage. The M.O.L. is 1.962" and the diameter is 0.741". This is a NCNRNW Non-Cancelable Non-Returnable Non-Warranty, please see policies for more details. The base is 15mm and the ring is 30mm. The product is tested before shipping. The base is 15mm diameter and the ring is 30mm diameter.
Compatible with:
P15d
P30d
P30dA
P30d30A
P15dA
2320L
1939 Plymouth
13007 Flange
2330
