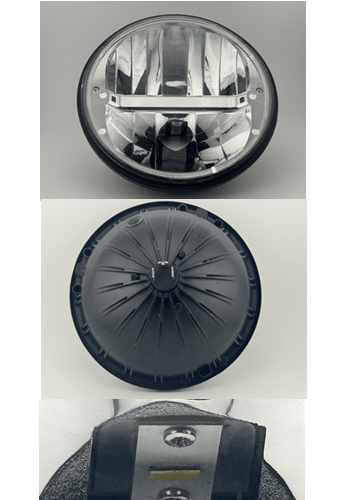

Par 56 7" diameter. 12 Volt negative ground sealed beam, operates from 10-80 VDC. This headlight has both a low and high beam. The low beam Lumen output is up to 1500. The high Lumen output up to 3000. The rated power is Rated Power: hi/lo 30W/15W. Comparable to a 140 Watt incandescent light bulb. Made with CSP chips so it is very bright an d focused. Available in white 6000k and warm white 3000k. .250 push terminals to connect the wires using H4 socket. The lens is clear. Long life up to 30,000 hours. Available in White 6000K and Warm White 3000K. The lens is PC and the frame is diacase Alu. IP 67 rated. Load equalizers required if the light flickers on low beam or you cannot change from low beam to high beam. The 6 Ohm 50 Watt LED Headlight Load Equalizer is product code 54738. The fixture overall thickness is approximately 3.90". The diameter is approximately 7.00". There is a proximately a 0.24" band around the fixture. The lens diameter is approximately 6.69". Please see "view larger photo" to see the mechancle dimensions. There is a closeup picture of the low beam CSP chips. The same thing will be on the other side for the CSP chips for the high beam.
Compatible with:
Jeep Wrangler Series
h6024
