JKL7001 Miniature LED Bulb T-1 3/4 Bi-Pin 24 Volt Dimmable product code 66587
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

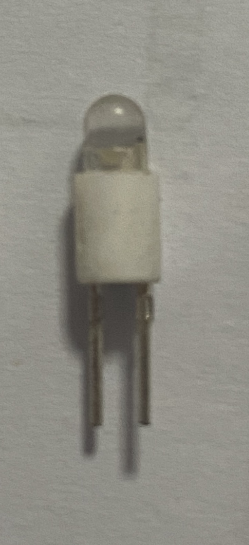

T1 3/4 Bi-pin Miniature LED Bulb 24 Volt DC Dimmable

Product Code: 66587

USD Price: 1.29
spacer   Volume Discount Percentage   spacer
 Buy 2 or more and save 2.00%
 Buy 4 or more and save 3.00%
 Buy 6 or more and save 4.00%
 Buy 8 or more and save 5.00%
 Buy 10 or more and save 6.00%
 Buy 25 or more and save 7.00%
 Buy 100 or more and save 8.00%

654 available

Qty: Add To Cart

Buy Now
Add To Saved Cart
Warranty: 12 Months

The size is T1 3/4. The lamp is a bi-pin base. The bulb is dimmable with a variable voltage supply. Up to 7 Lumen output. Up to .5 MSCP mean spherical candlepower. The voltage is 24 Volts DC. Up to .24 mA. Up to 24 milliwatts power. Available in White 6000-65000K. Long life up to 30,000 hours. Comparable to a 4 to 9 Watt incandescent bulb. The top of the led bulb is round. 3.17mm bi pin spacing. Approximate pin diameter 0.46mm. Compatible with: JKL7001
  Recommended Items:


Midget Screw Round 6 12 24 VDC T 1-3/4 Dim-able 90 Degree E5

Midget Screw Round 6 12 24 VDC T 1-3/4 Dim-able 90 Degree E5
Product Code: 24577
Price USD: $1.49Quantity Pricing Available

Small E5 Midget 1 L.E.D., Available in 6VDC, 12VDC and 24VDC options. Up to 7 lumen output, long life up to 30,000 hours. Available in Warm White 3000K and White 6000K. Uses very low .1 W power, 60 degree viewing. T1-3/4. Can be dimmed.





E5 Midget Screw LED Flat Top 6 To 12 Volt DC Dim-able T1 3/4

E5 Midget Screw LED Flat Top 6 To 12 Volt DC Dim-able T1 3/4
Product Code: 25688
Price USD: $1.49Quantity Pricing Available

Very small E5 screw base is used for instrument, panel and automotive ligihting. Operates at 12V DC. Can be dimmed with a variable DC power. Available in white only 6000 Kelvin.

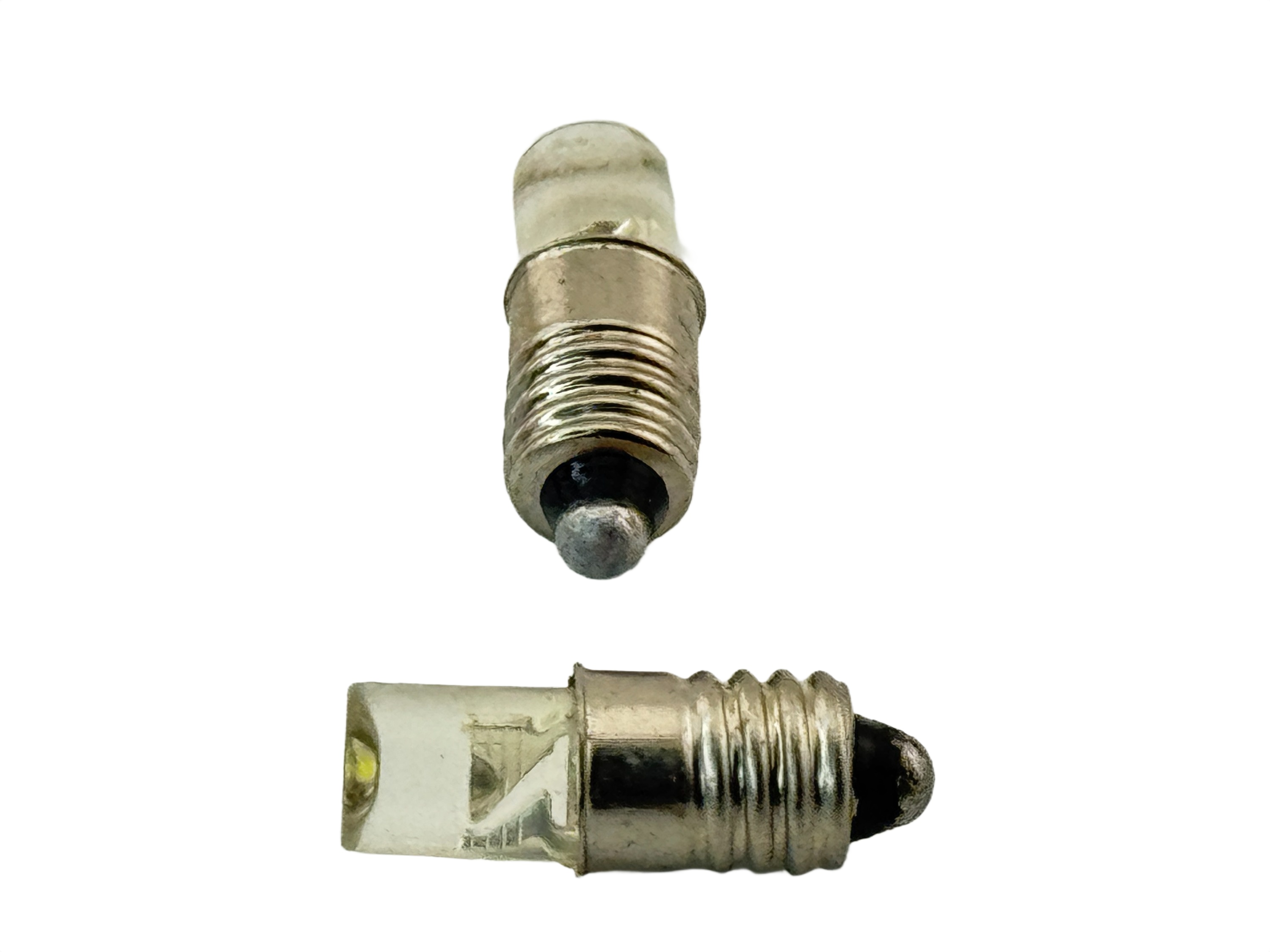

Midget Screw Concave LED Light 12 VDC 90 Degree Dim-able E5
