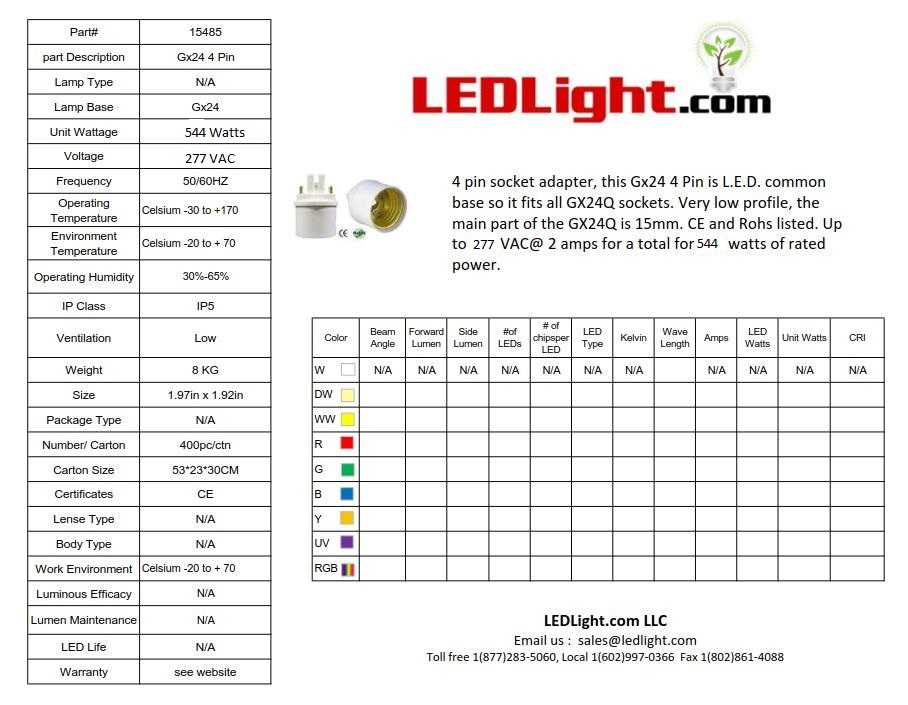

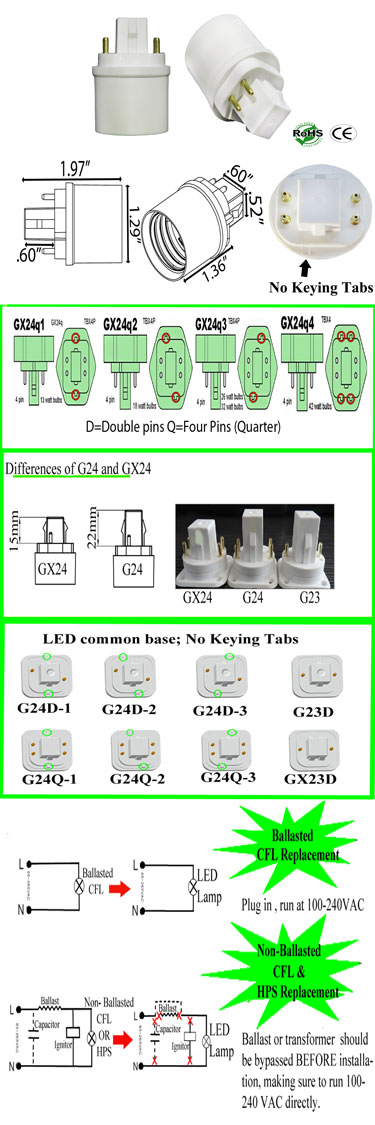

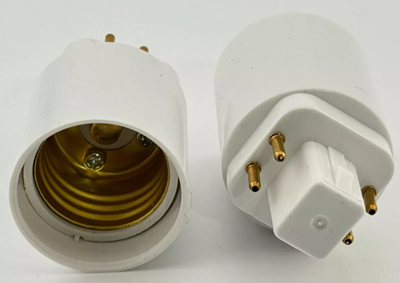

Gx24 to e26 converter is common base so it fits all GX24Q sockets. Save time and money by using this adapter instead of replacing the fixture. Very low profile. The main square part is 15 mm long. Compatible with GX24Q-1, GX24Q-2, Gx24Q-3, GX24Q-4. Can I use a GX24 base plug into the existing G24 fitting? The answer is no. Made of flame retardant PBT and copper materials. This converter works with Edison Medium base E26 based male bulbs rated up to 544 watts. The converter can handle up to 2 amps @ 277 VAC. You will need to BYPASS or remove the BALLAST. Please measure middle post BEFORE buying this converter it should be 15 mm or .59 inches or approximately 9/16 inch. Please contact a certified electrician to disable or bypass or remove the ballast. Includes one product per package. CE and Rohs. Compatible with the following:
f42tbx/835
| 6 Customer Reviews
|
| 5 Star: |
 |
6 |
Average Customer Rating
 5.0
out of 5 100% recommend it to
friends
|
| 4 Star: |
|
0 |
| 3 Star: |
|
0 |
| 2 Star: |
|
0 |
| 1 Star: |
|
0 |
| Viewing 1-5 of 6 Reviews. Page 1 of 2. |
GX24 4 Pin male to E27 female Converter
by
jtrev6
from
San Diego Area
on
4/10/2016
Recommends it to Friends:
Yes
This is the 4th time ordering these items. The product worked well for converting 4-pin CFL socket to E26-E27 socket for use with LED retrofits (make sure to bypass the ballast otherwise it will not work).
LEDLight.com is a reliable vendor and shipping cost is fair and convenient.
Was this review helpful to you? YES /
NO
|
Great solution
by
TheWizard
from
Fairfield, CA
on
9/8/2015
Recommends it to Friends:
Yes
Based on reading another review, I ordered these to change out all the can lights in my kitchen. Although I did have to remove the ballast from each fixture, putting the adapter in with a 65W BR40 LED equivalent gave me exactly the result I was looking for. It also means I will have a much wider choice of bulbs in the future. Although the E27 threading is a European standard(American standard is E26) the American-made LEDs I bought worked just fine in the adapter. I am thoroughly pleased with the result.
1
of
1
user
found this review helpful. Was this review helpful to you? YES /
NO
|
Perfect fit in a Panasonic WhisperLite exhaust fan
by
4Crawler
from
SF Bay Area, CA.
on
8/22/2015
Recommends it to Friends:
Yes
I have a video review of this adapter on YouTube:
https://youtu.be/7CSF7Yoxgf0
Using this to add an LED bulb to replace the CFL that came in this bathroom exhaust fan, ceiling light combo unit. This adapter allows a wider range of bulb options that I get in a GX24 LED bulb.
1
of
1
user
found this review helpful. Was this review helpful to you? YES /
NO
|
Works just as advertised
by
rflores
from
American Canyon, CA
on
2/19/2015
Recommends it to Friends:
Yes
I bought nine of these to convert my GX24Q-3 bulbs (in my kitchen) to LED retrofit kits I purchased from Costco. As instructed, I bypassed the ballast, which wasnt too difficult. The process should be relatively easy for anyone with technical prowess. After rewiring the connections, and installing the LED kit, everything powered on immediately.
Shipping was quick and the adapters were packaged very well. Im purchasing more adapters so I can do the same install for my parents. Thank you LEDLight.com!
Was this review helpful to you? YES /
NO
|
4 pin adapter works great
by
Don Baker
from
Hemet, Ca.
on
1/22/2015
Recommends it to Friends:
Yes
I just recieved one of these gx24 adapters and installed it in a flush mount Florescent can light and bypassed the
Ballast so I could use A standard screw base for led bulbs. This 4 pin adapter works great and Im going to order about 20 more. Led.com shows pictures and dimensions of the connectors. The connectors easily plug in but the work is in bypassing the ballast and rewiring.
1
of
1
user
found this review helpful. Was this review helpful to you? YES /
NO
|
| Viewing 1-5 of 6 Reviews. Page 1 of 2. |
| |
