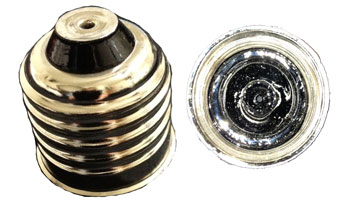

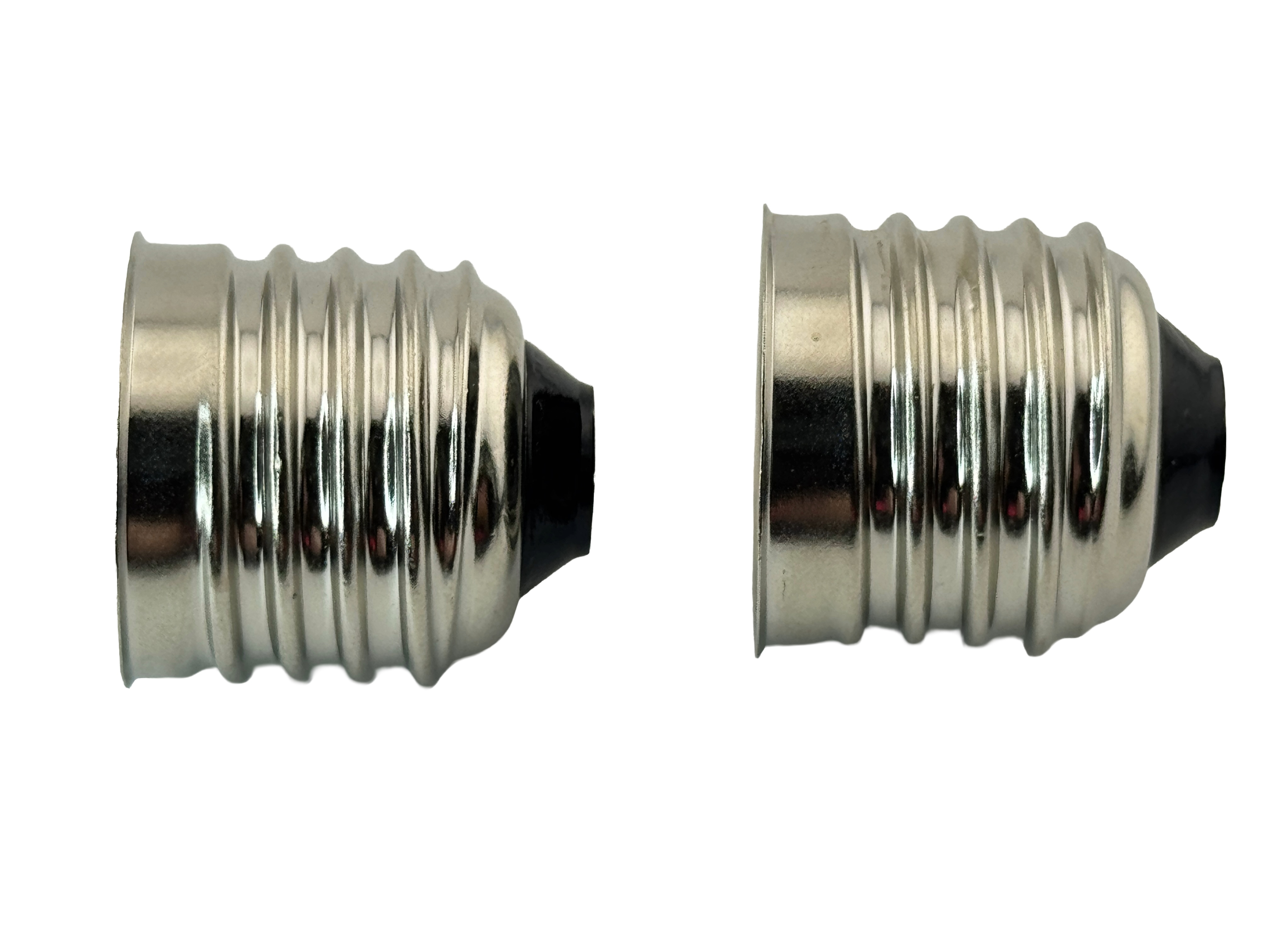

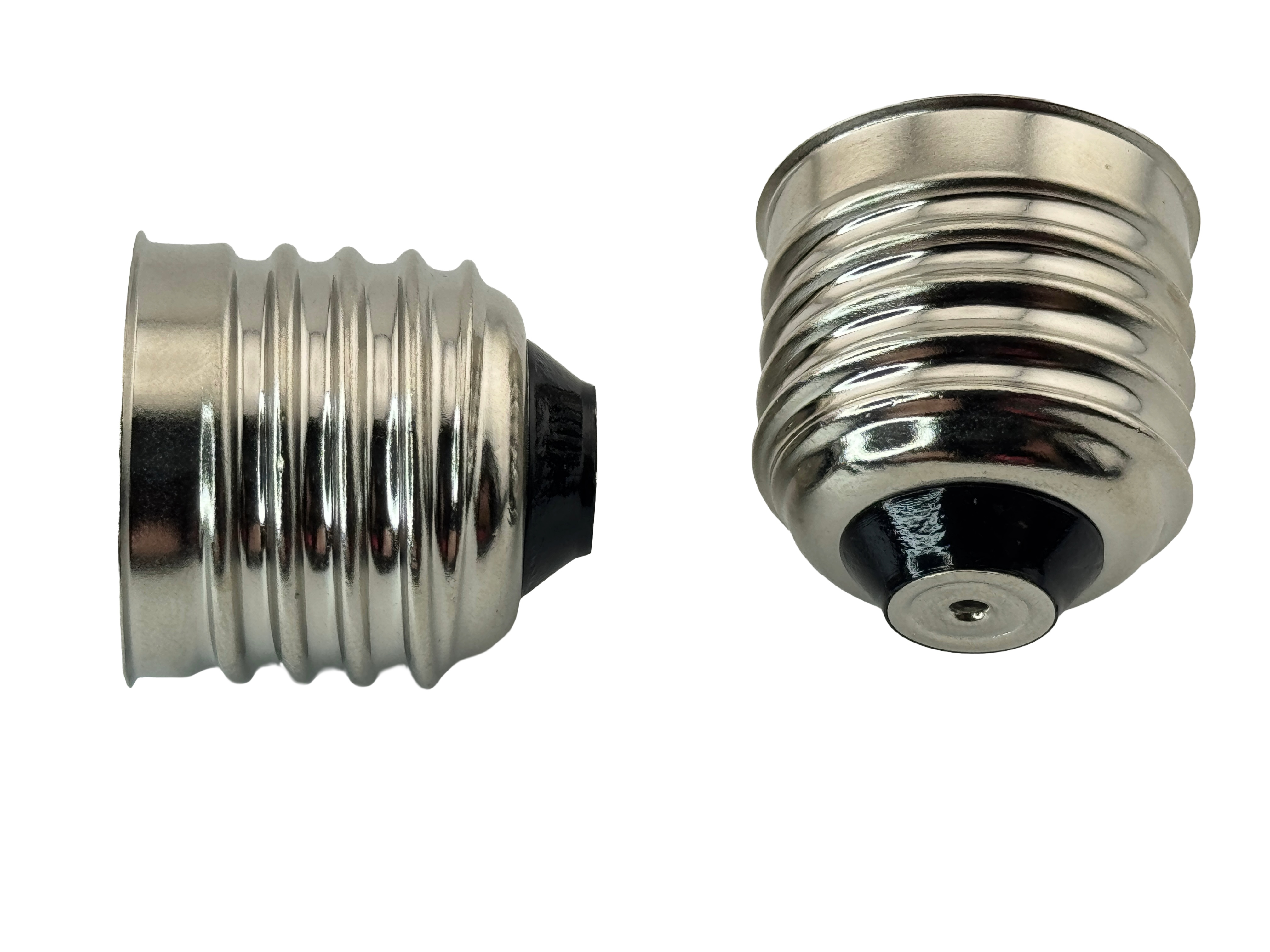

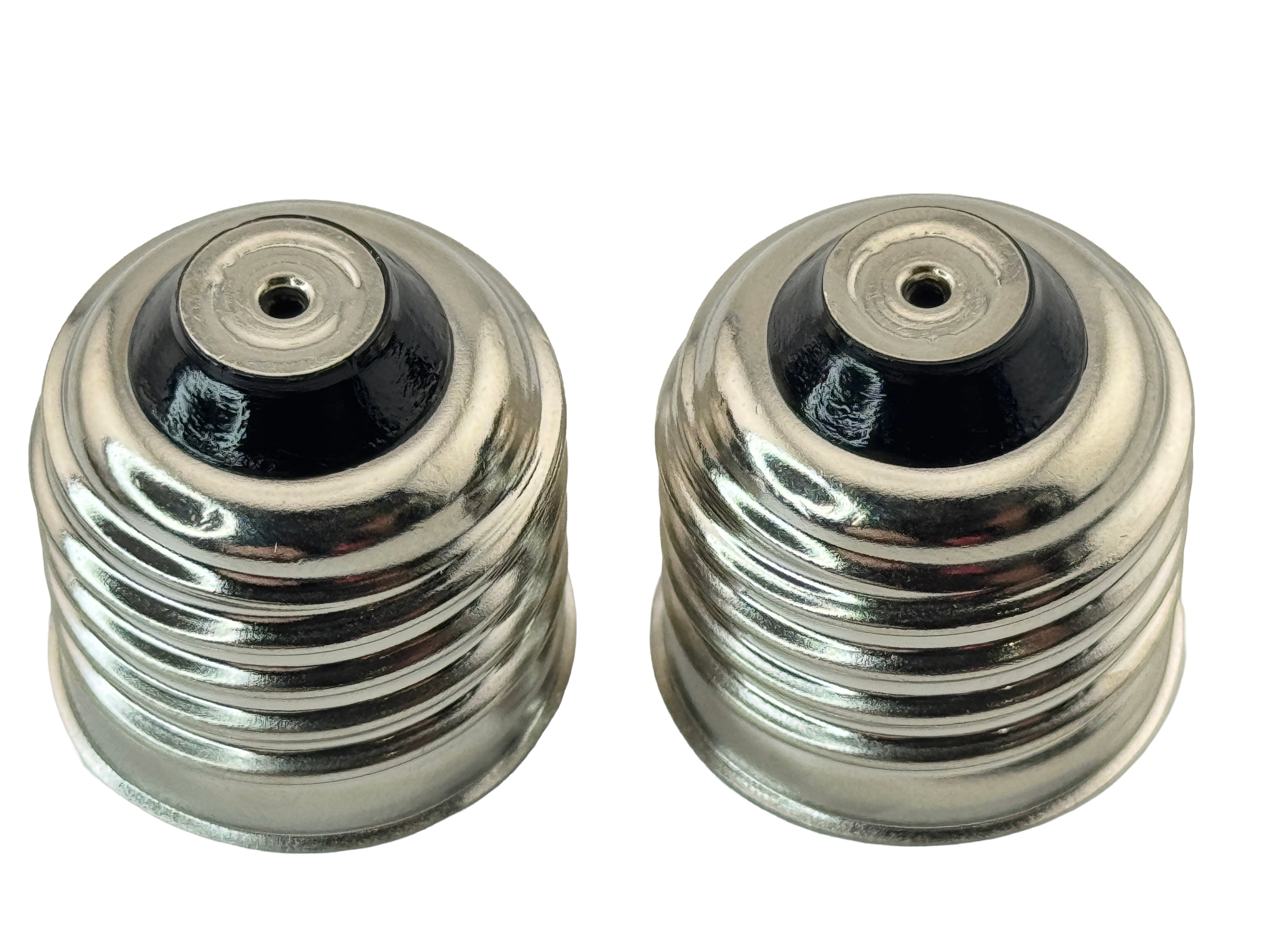

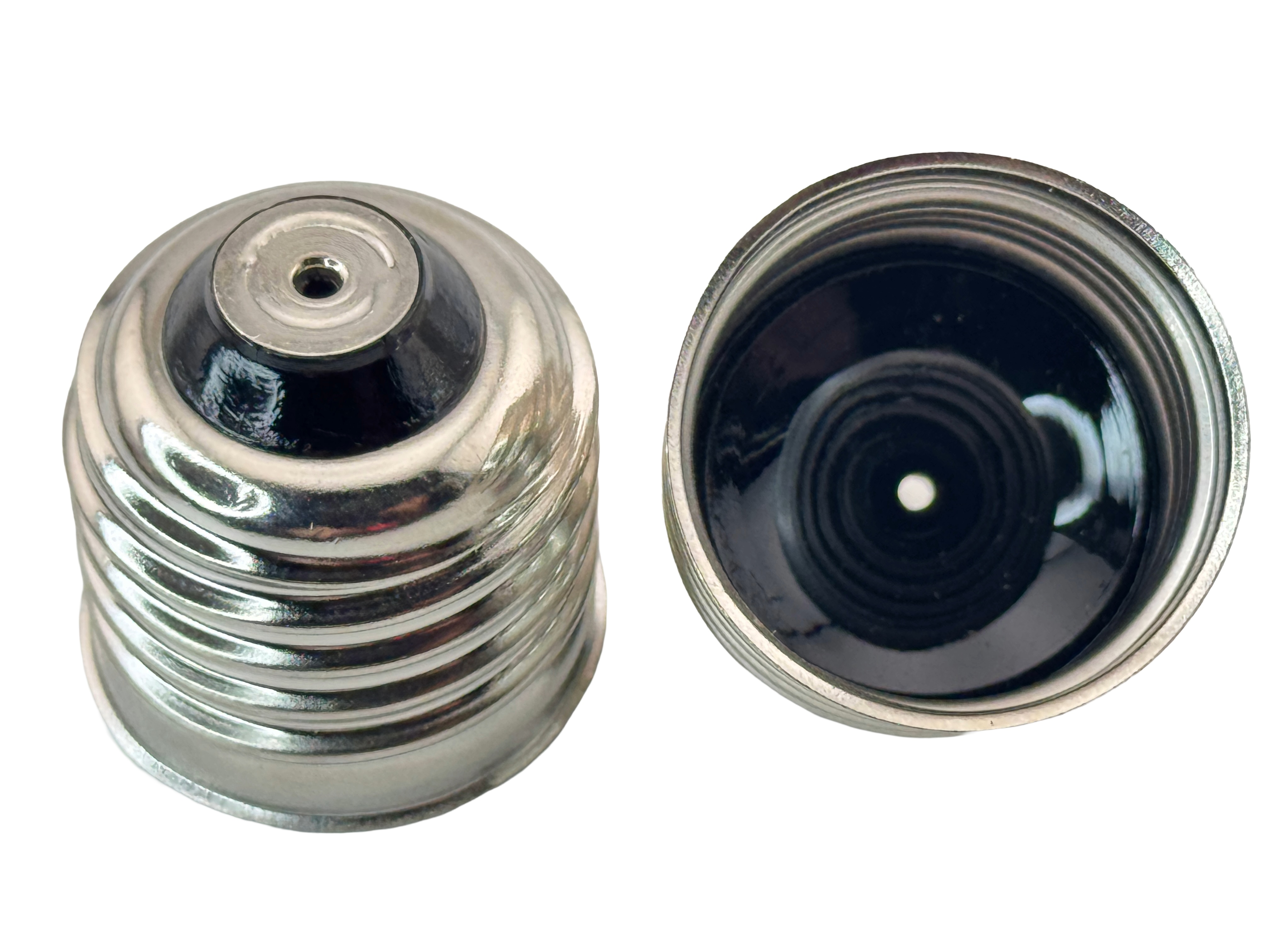

E27 Solderable Base product 13444
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

E27 Solderable Base

Product Code: 13444

USD Price: 0.78
spacer   Volume Discount Percentage   spacer
 Buy 2 or more and save 2.00%
 Buy 4 or more and save 3.00%
 Buy 6 or more and save 4.00%
 Buy 8 or more and save 5.00%
 Buy 10 or more and save 6.00%
 Buy 25 or more and save 7.00%
 Buy 100 or more and save 8.00%

450 available

Qty: Add To Cart

Buy Now
Add To Saved Cart
Warranty: 12 Months

E27 Solderable screw base. The ground or neutral wire is soldered to the inside of the threads. The line voltage wire is soldered to the tip on the bottom. There is no plug or pin at the bottom, since it is a solderable E26. The inside diameter is 25.35mm. The outside diameter at the tip is 26.14mm. The outside diameter on the open end is 27.02mm. The length is 26.80mm. The E27 base is made of copper plated nickel. The heat resistant temperature is 300°C. The rated voltage is up to 277 VAC. The rated power is up to 1100 Watts. The rated current is up to 4A. The weight is 7g. Great for hobbies, such as making your own lights! CE and Rohs.
