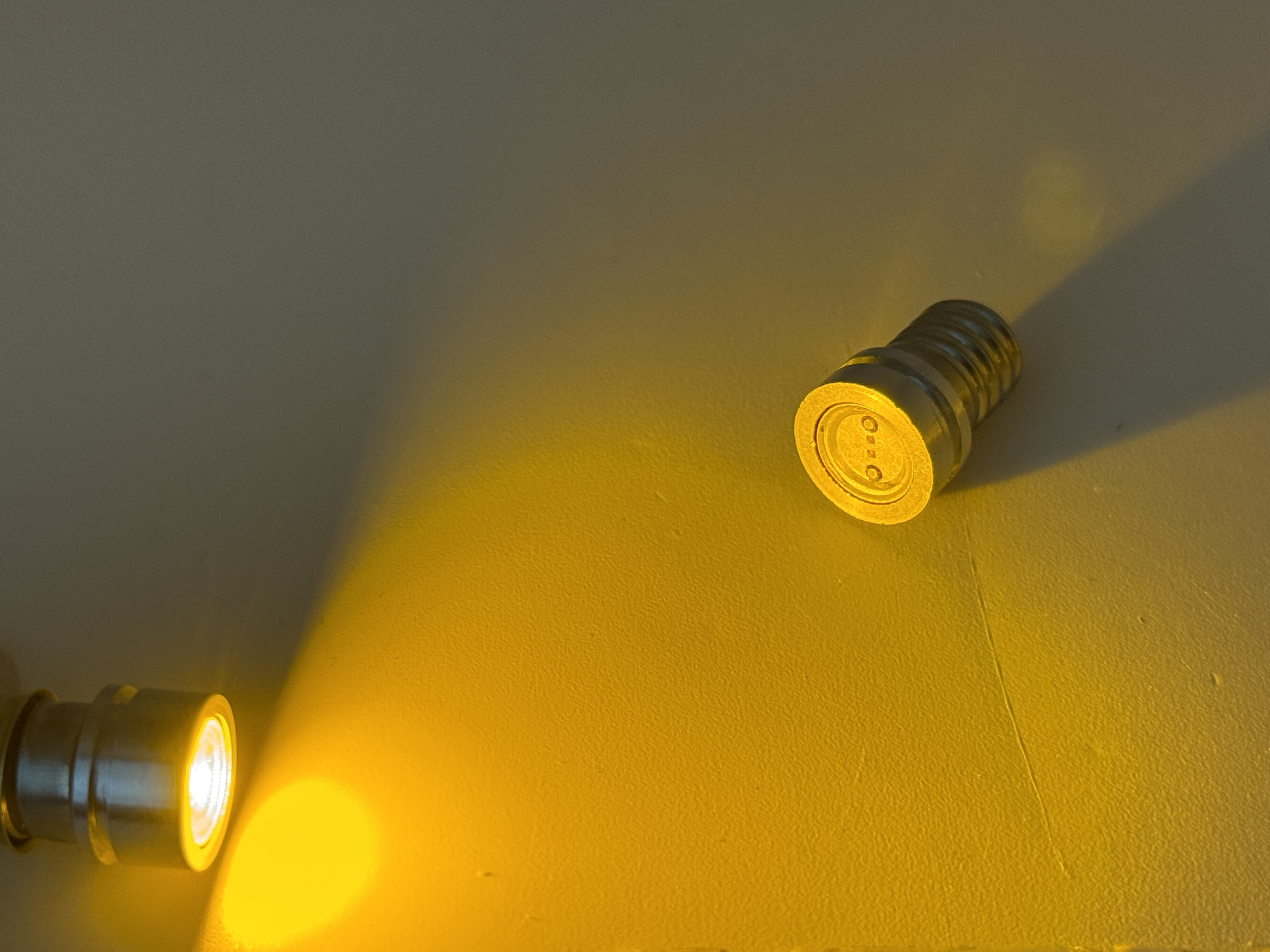

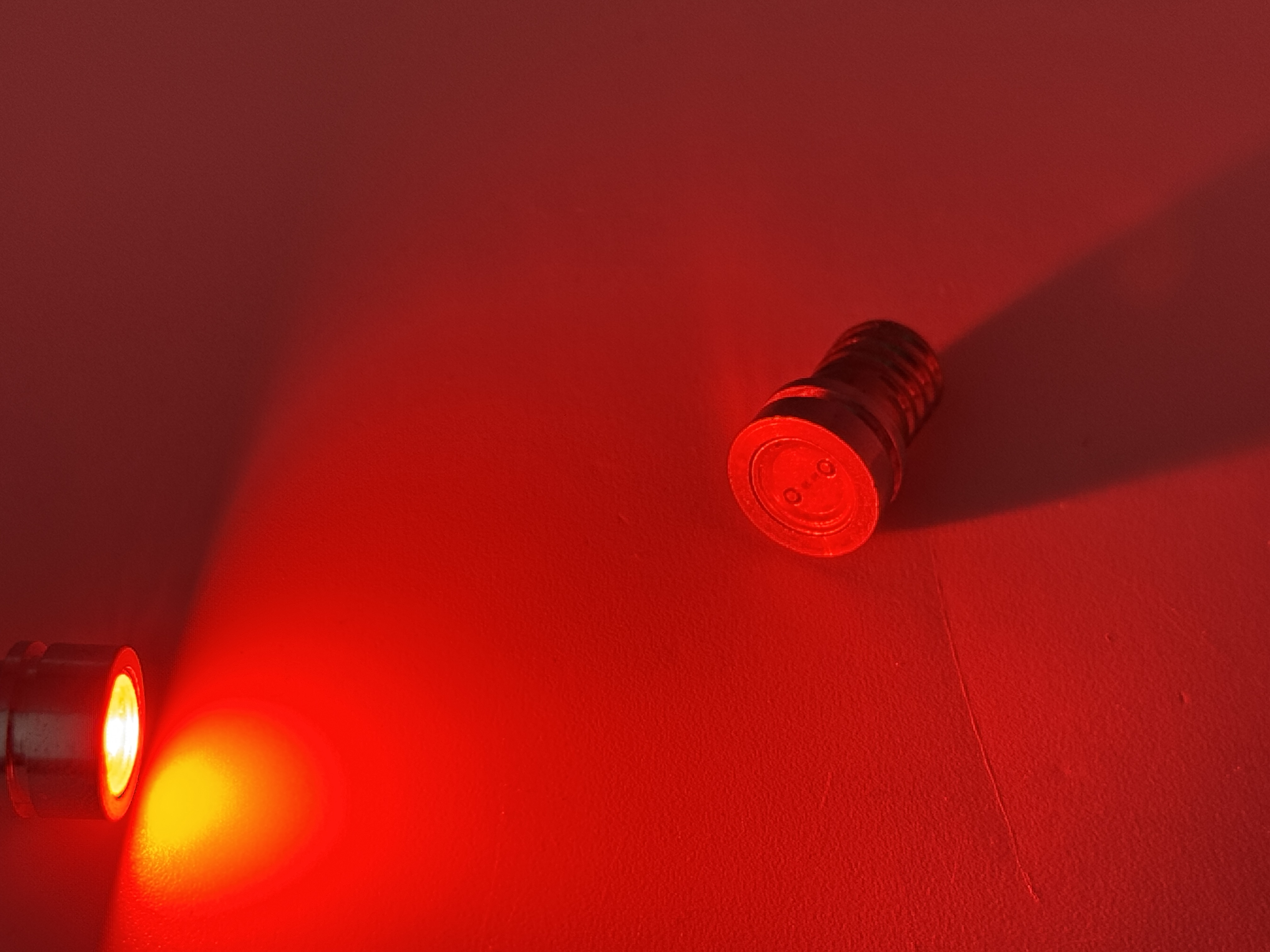

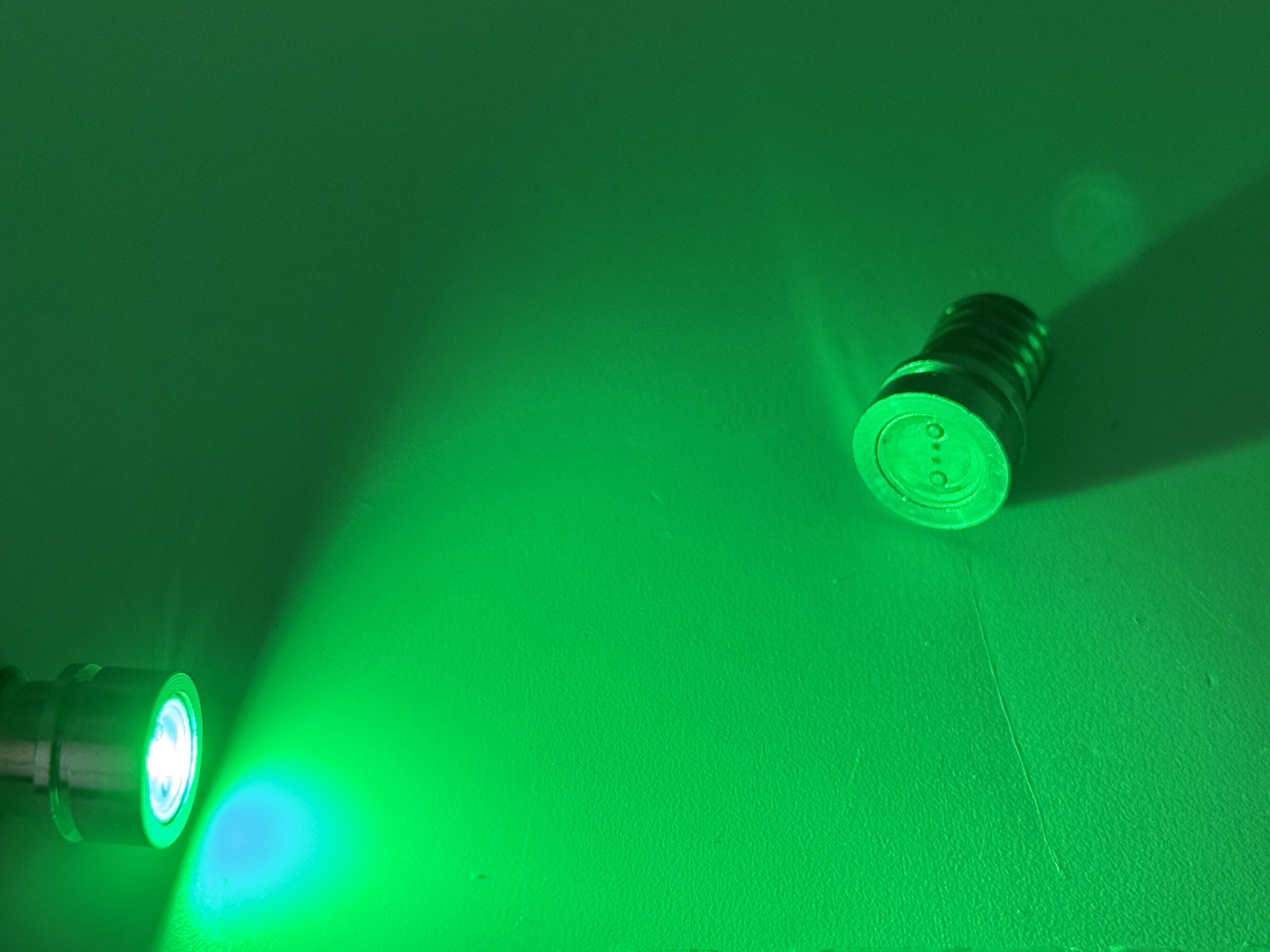

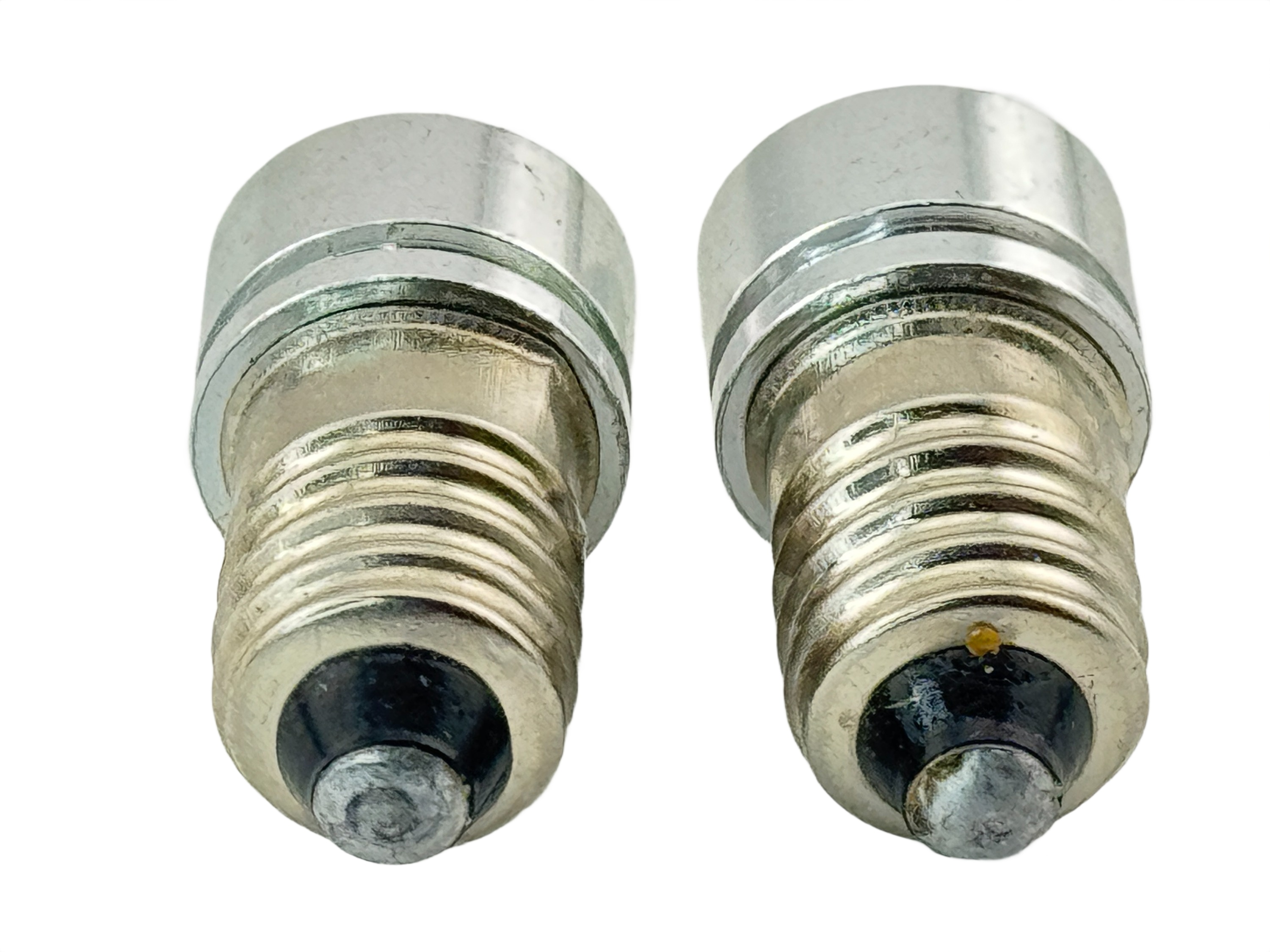

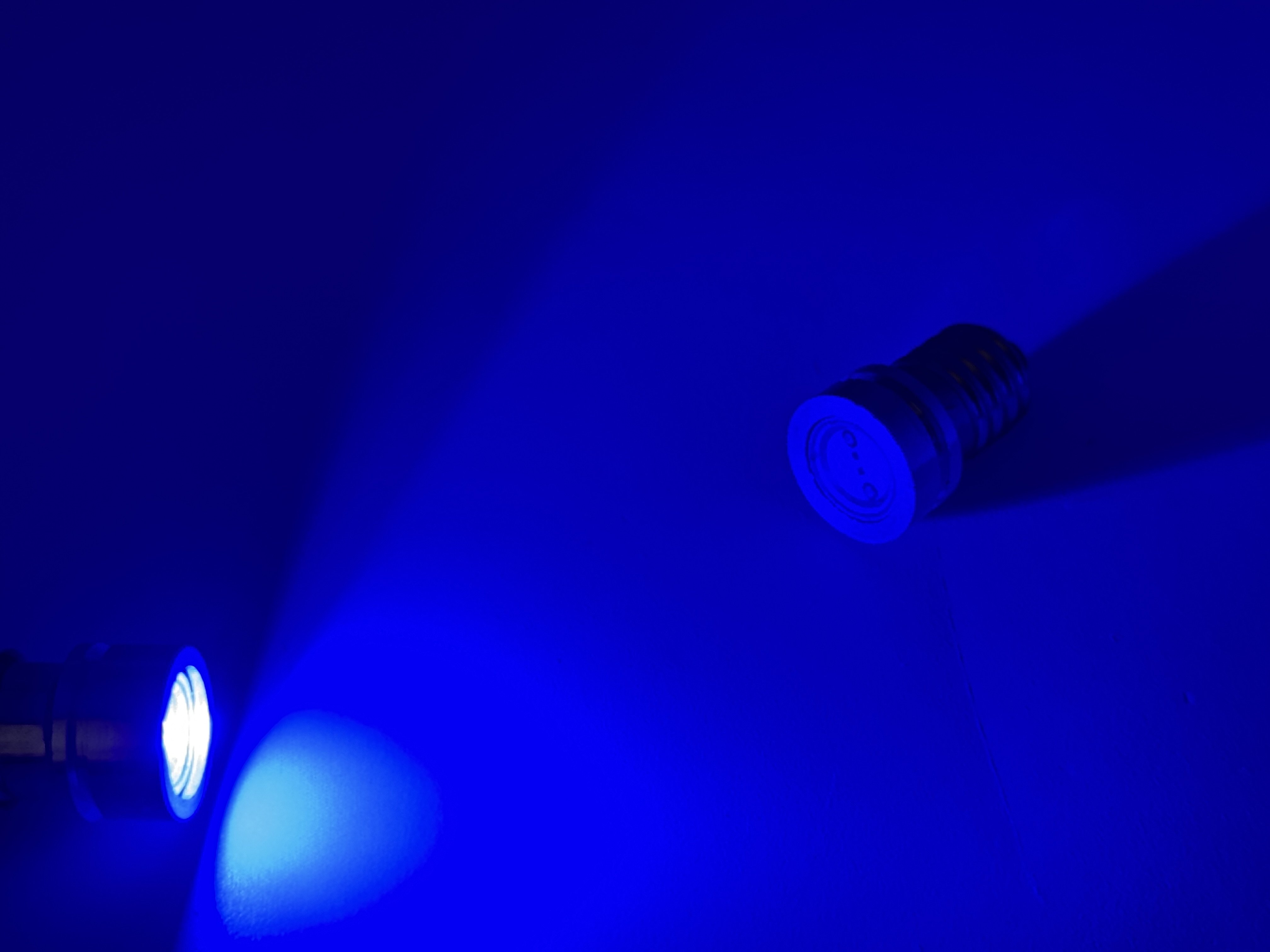

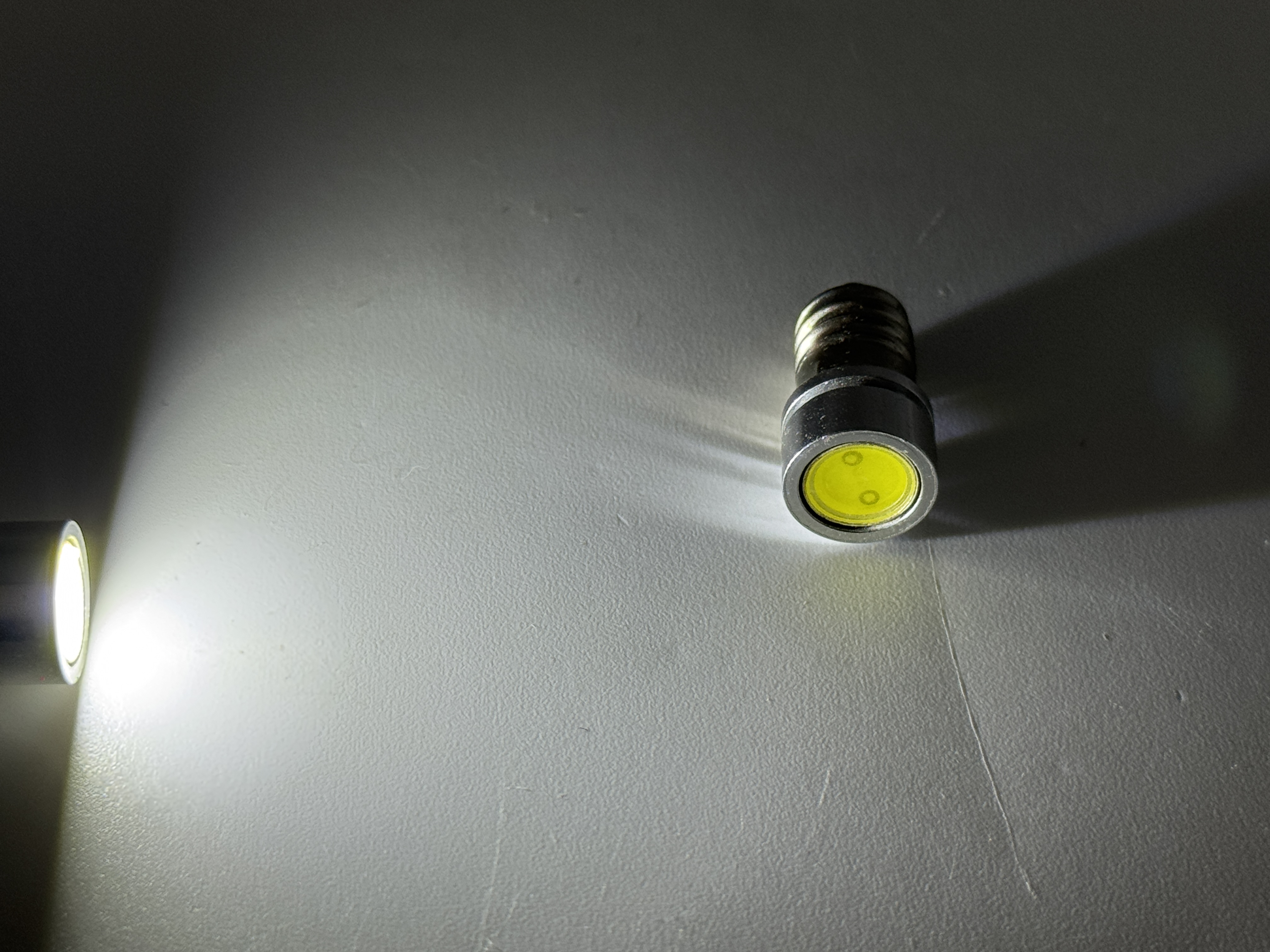

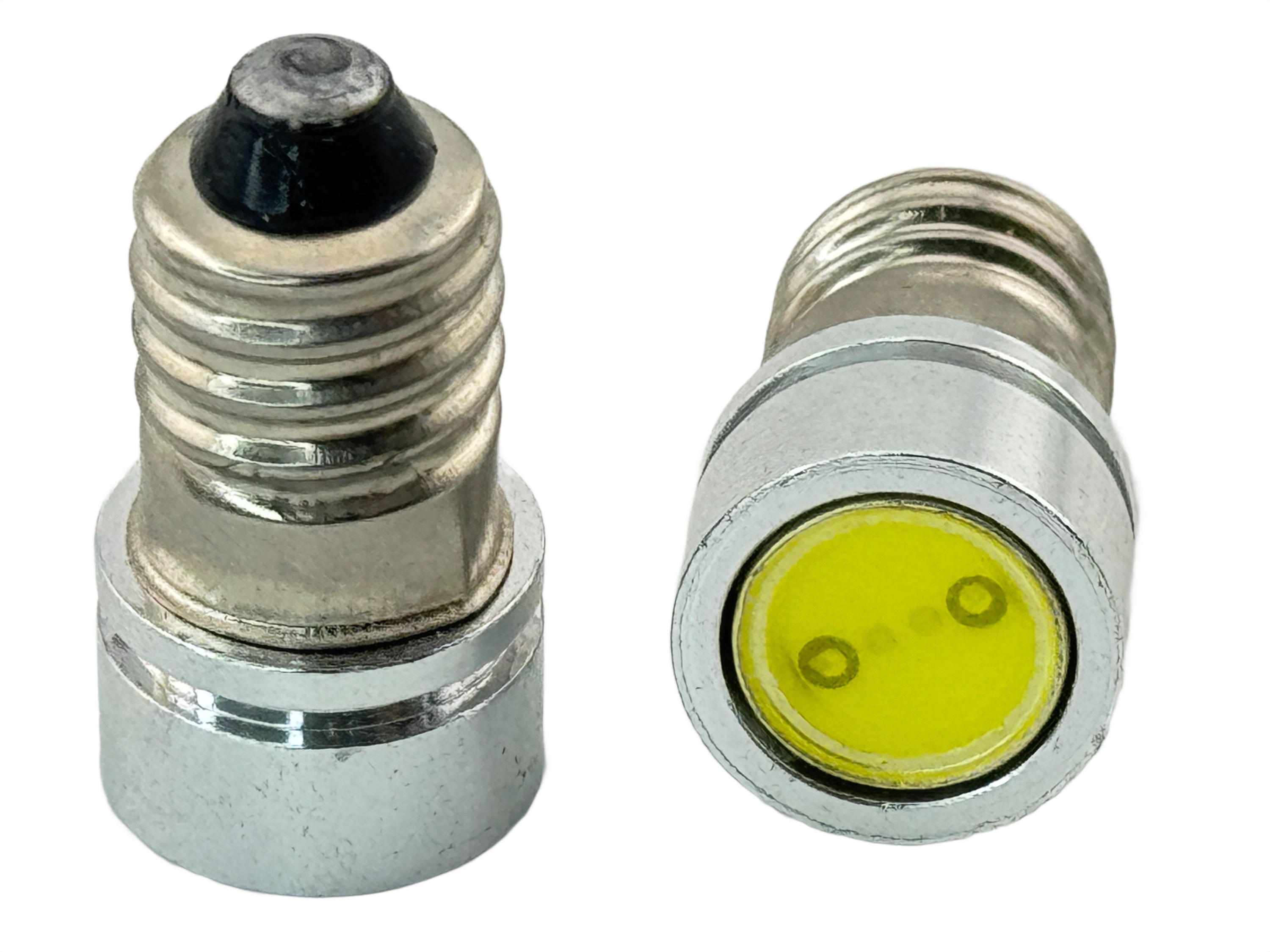

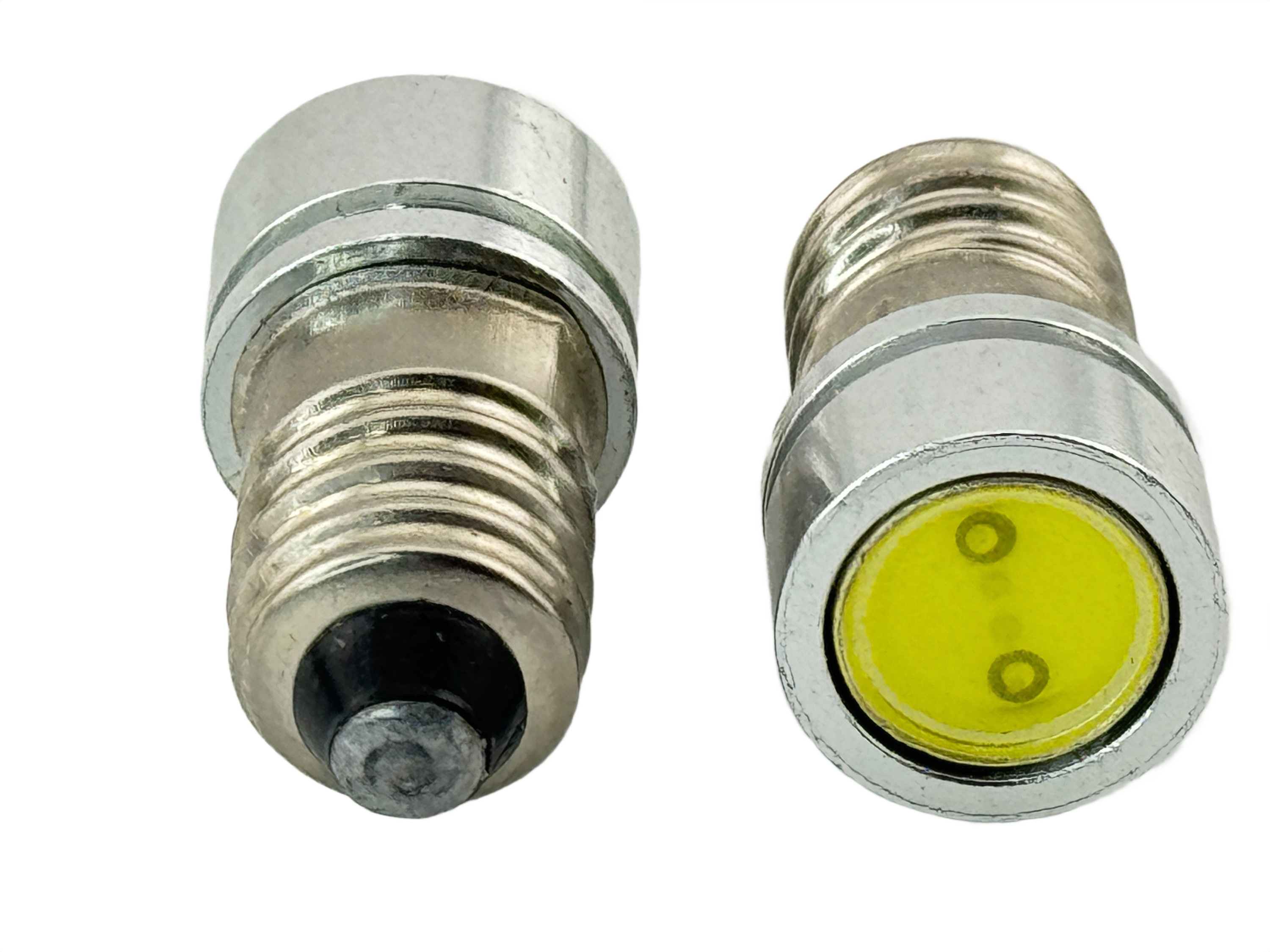

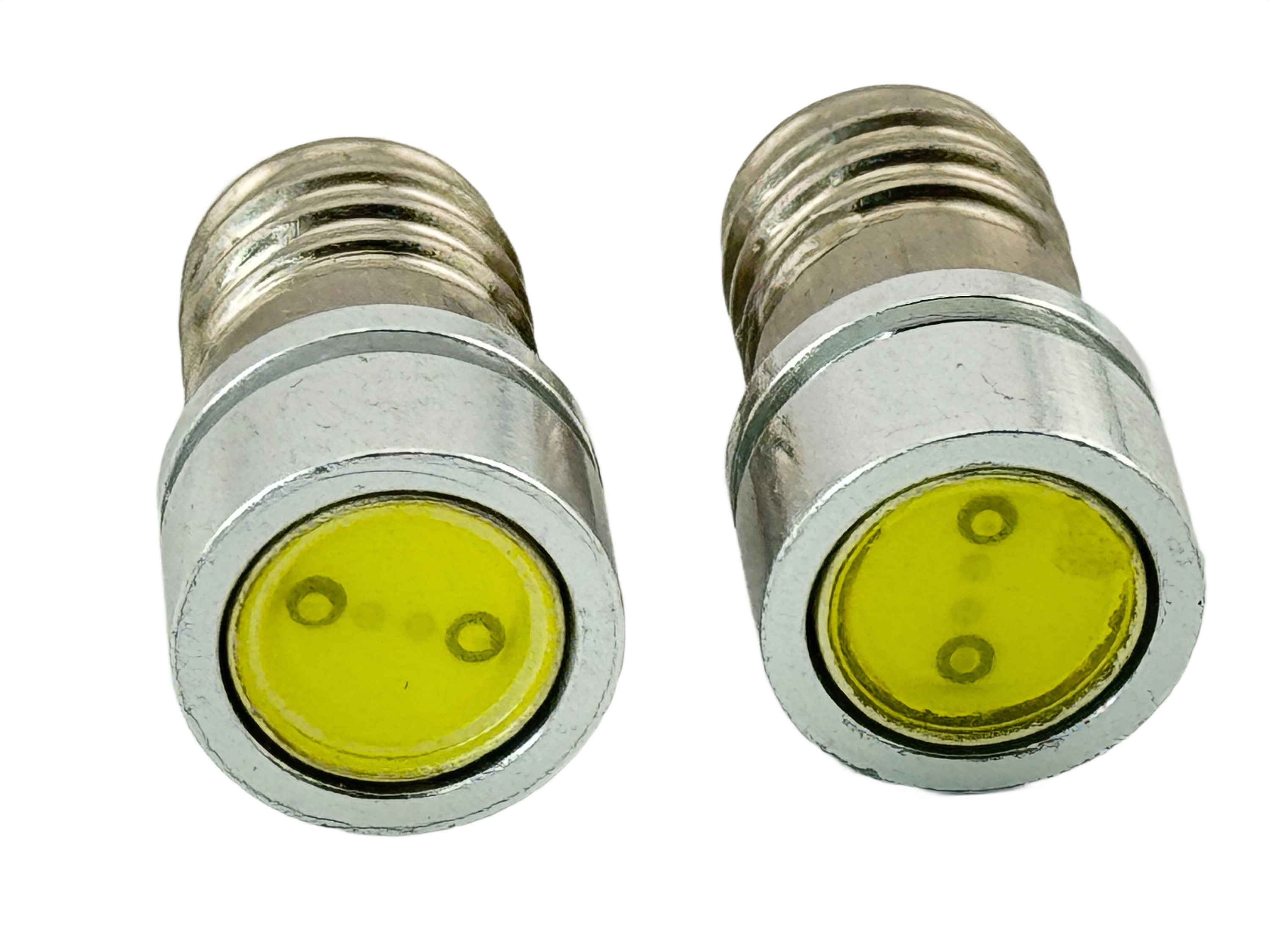

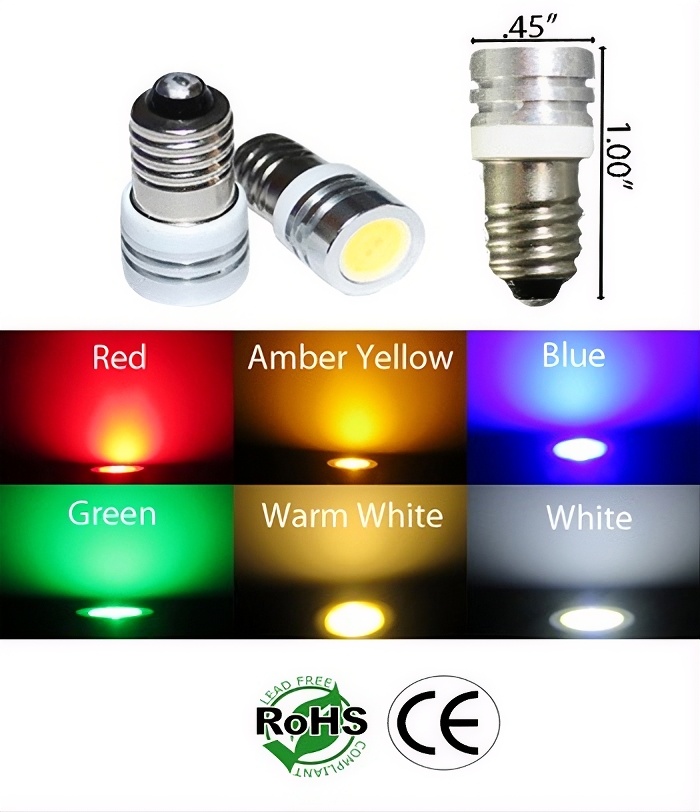

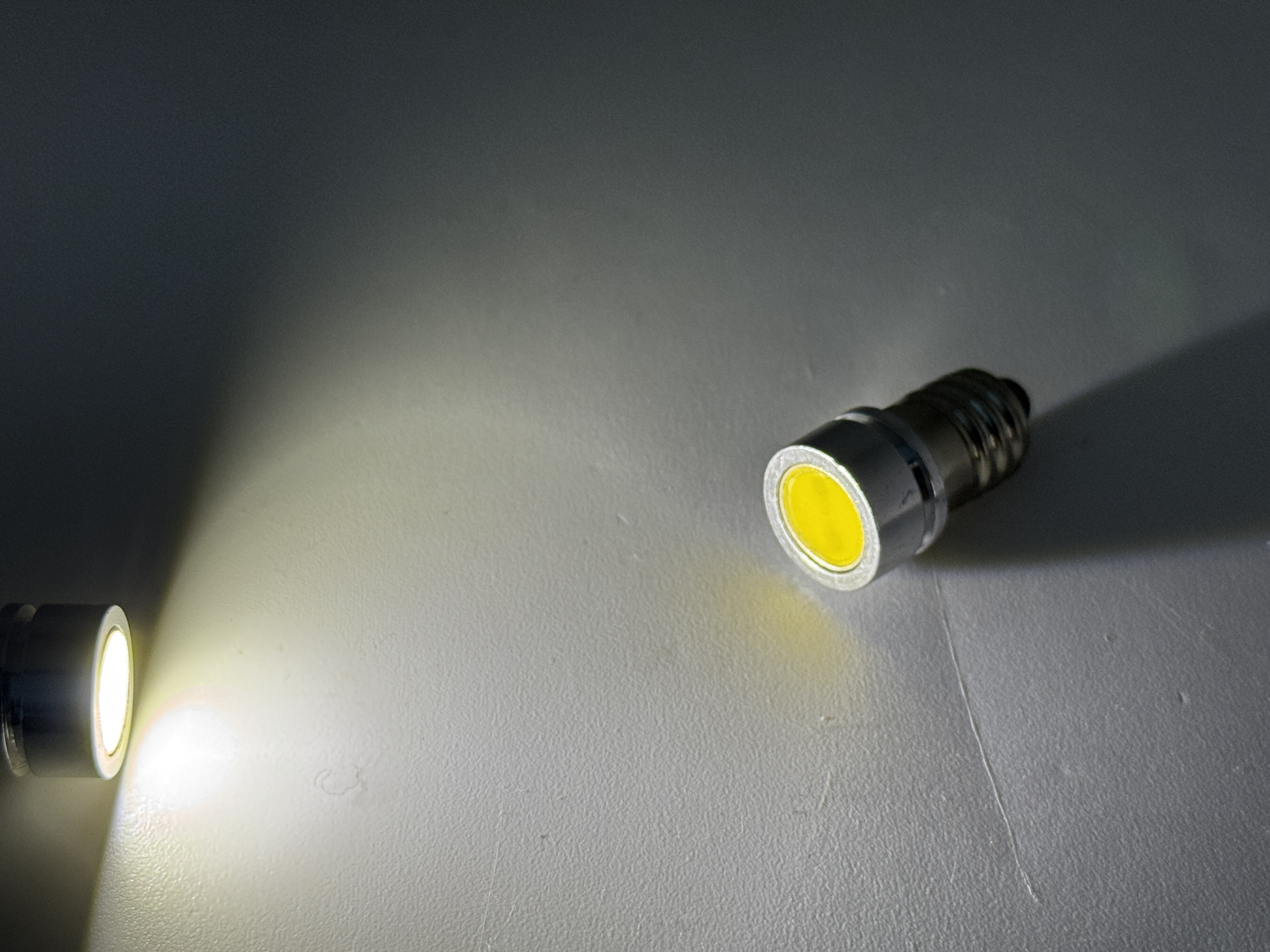

Miniature Screw E10 Base One Watt High Power LED Light 6 to 12 Volts DC. Use this E10 Screw base for instrument panels, dash boards and other E10 Screw base applications that will save energy using LED Light technology. This high power 1 watt LED uses 2 LED chips so it is brighter. Up to 45 mA@13.8 volts. Up to 30,000 hours or longer LED Life. 120 degree viewing angle. Up to 70 Lumen output. Maximum voltage 16 volts. Dim-able by variable DC supply such as your dashboard dimmer switch. Comparable to 8 to 15 Watt incandescent bulb. This led lamp operating Temperature Range -30c to +75c. Max 150mA, 300mA pulsed 1/10th .1ms pulse width. One per package. Very bright LED, very nice. White 6000K, Warm White 3000K, Red(625nm), Green(526nm), Blue(464nm),& Yellow(594nm). When replacing the alternator indicator warning for Triumph Spitfire, please make sure to add a load equalizer. When replacing with LED or the alternator will not charge the battery please make sure to add the load equalizer in parallel with the led lamp. Operates negative ground. Compatible replacement 1487 52 258 428 1446 1449 1487
| 4 Customer Reviews
|
| 5 Star: |
 |
3 |
Average Customer Rating
 4.8
out of 5 100% recommend it to
friends
|
| 4 Star: |
|
1 |
| 3 Star: |
|
0 |
| 2 Star: |
|
0 |
| 1 Star: |
|
0 |
MGA
by
from
Chicago
on
10/16/2015
Recommends it to Friends:
Yes
The visionary engineers who designed the MGA must have thought that someday there would be a bulb bright enough to illuminate their oddly placed dashboard turn signal indicator. THIS IS THAT BULB!
The 6000K bulb lights the green jewel even in daylight. Perfect.
Was this review helpful to you? YES /
NO
|
Great gauge lights for Austin Healey Sprite
by
Pizzaman09
from
Erie, PA
on
3/16/2019
Recommends it to Friends:
Yes
I purchased these lights to upgrade the gauge lights in my 62 Austin Healey Sprite. At the time I purchased them, no positive ground LEDs were available so I retrofitted some e10 sockets that I could swap the polarity on. The difference is amazing, I can see the gauges clearly at night and the white color compliments the style well. I also tried a green one in the turn signal jewel, however it was blindingly bright at night time so I swapped it back to stock.
Was this review helpful to you? YES /
NO
|
MGB dash lights
by
DaveW
from
iowa
on
3/3/2015
Recommends it to Friends:
Yes
Worked very well for my MGB dash lights. I can finally see my gauges at night.
Was this review helpful to you? YES /
NO
|
Very nice bulb
by
Fred
from
Minneapolis
on
8/7/2014
Recommends it to Friends:
Yes
This bulb served my purposes perfectly. I especially liked the fact that it puts its light straight forward--which is exactly what I needed. The only problem I had was that one of the bulbs came apart during installation or I would have rated it 5 stars.
Was this review helpful to you? YES /
NO
|
| |
