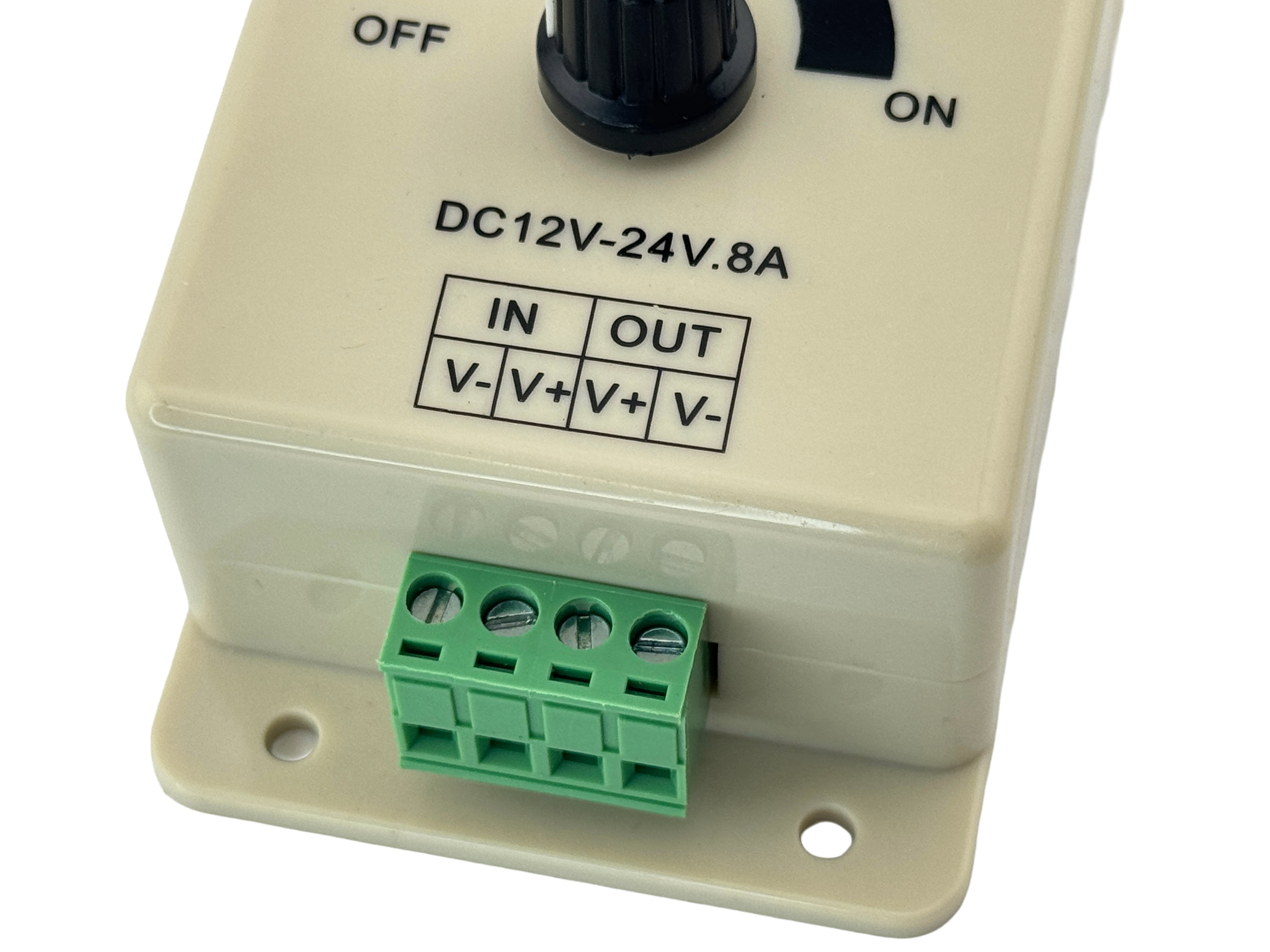

Dimmer Low Voltage One Channel 8A 12VDC 96W

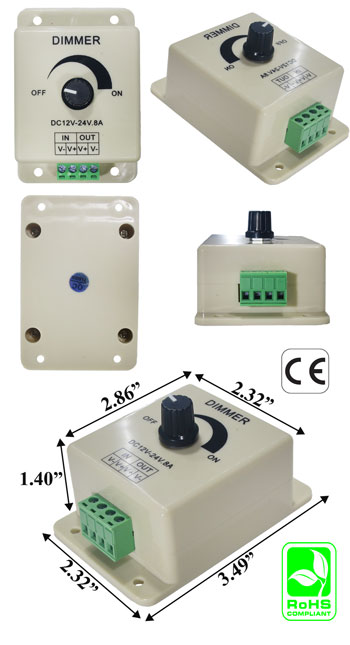

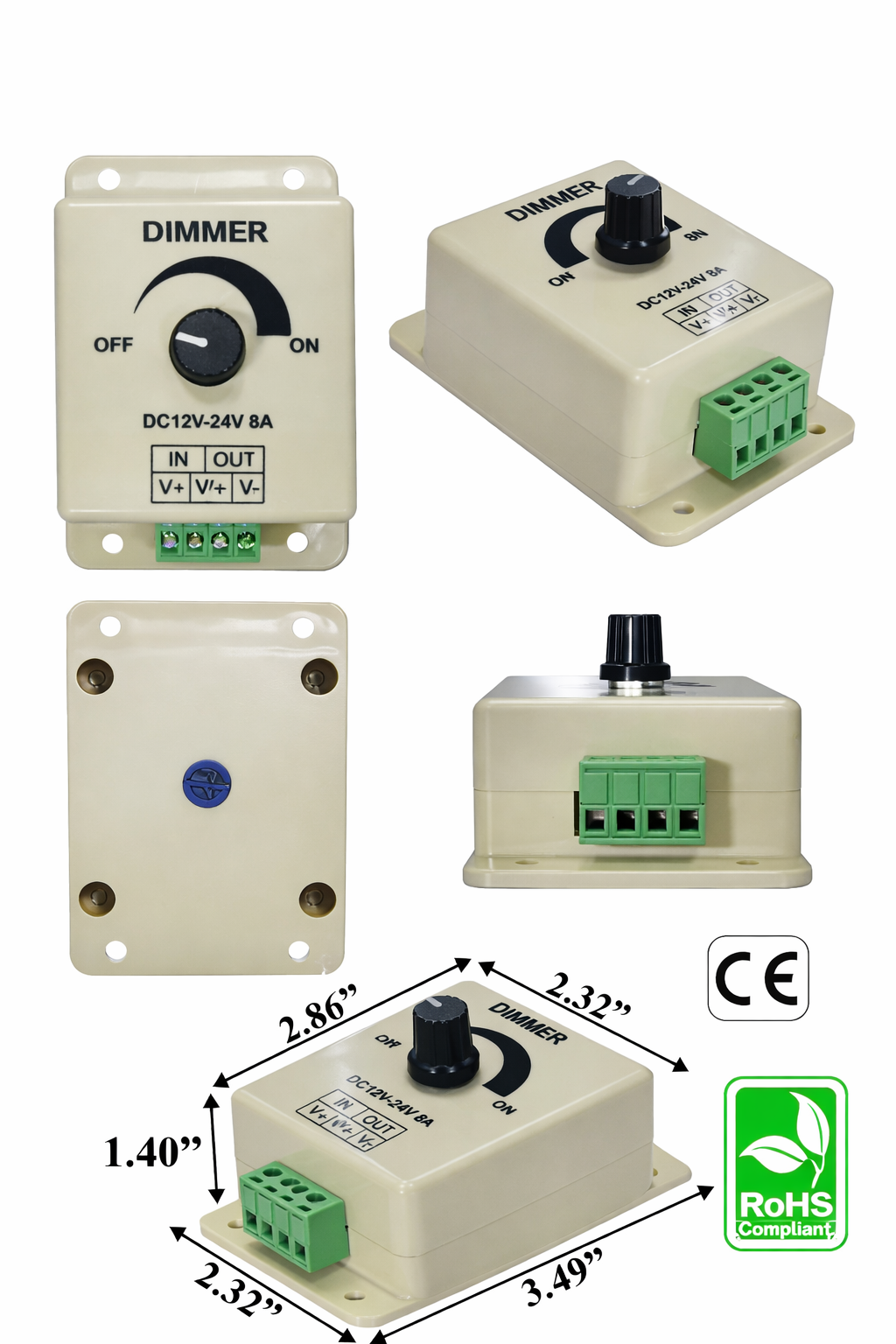

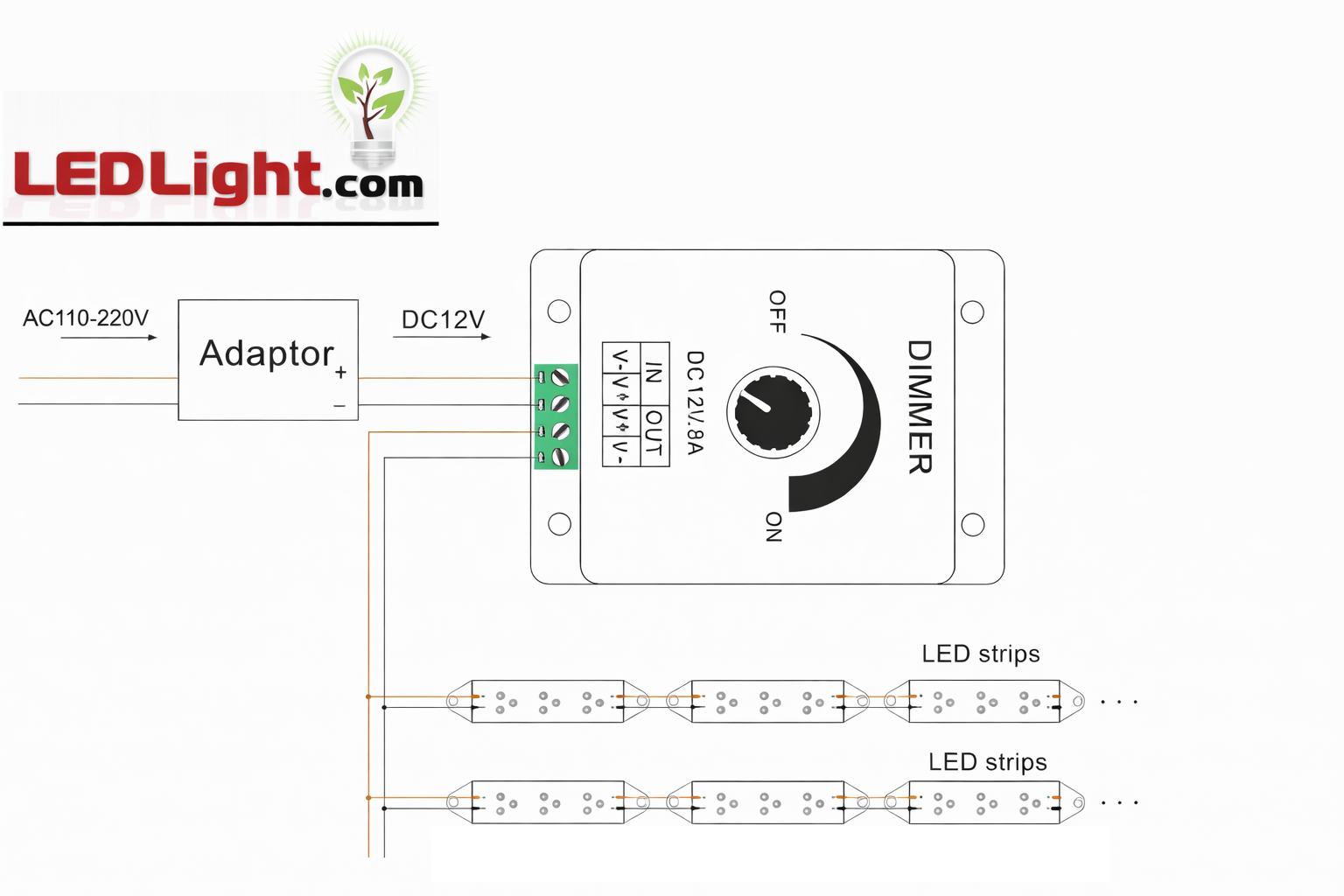

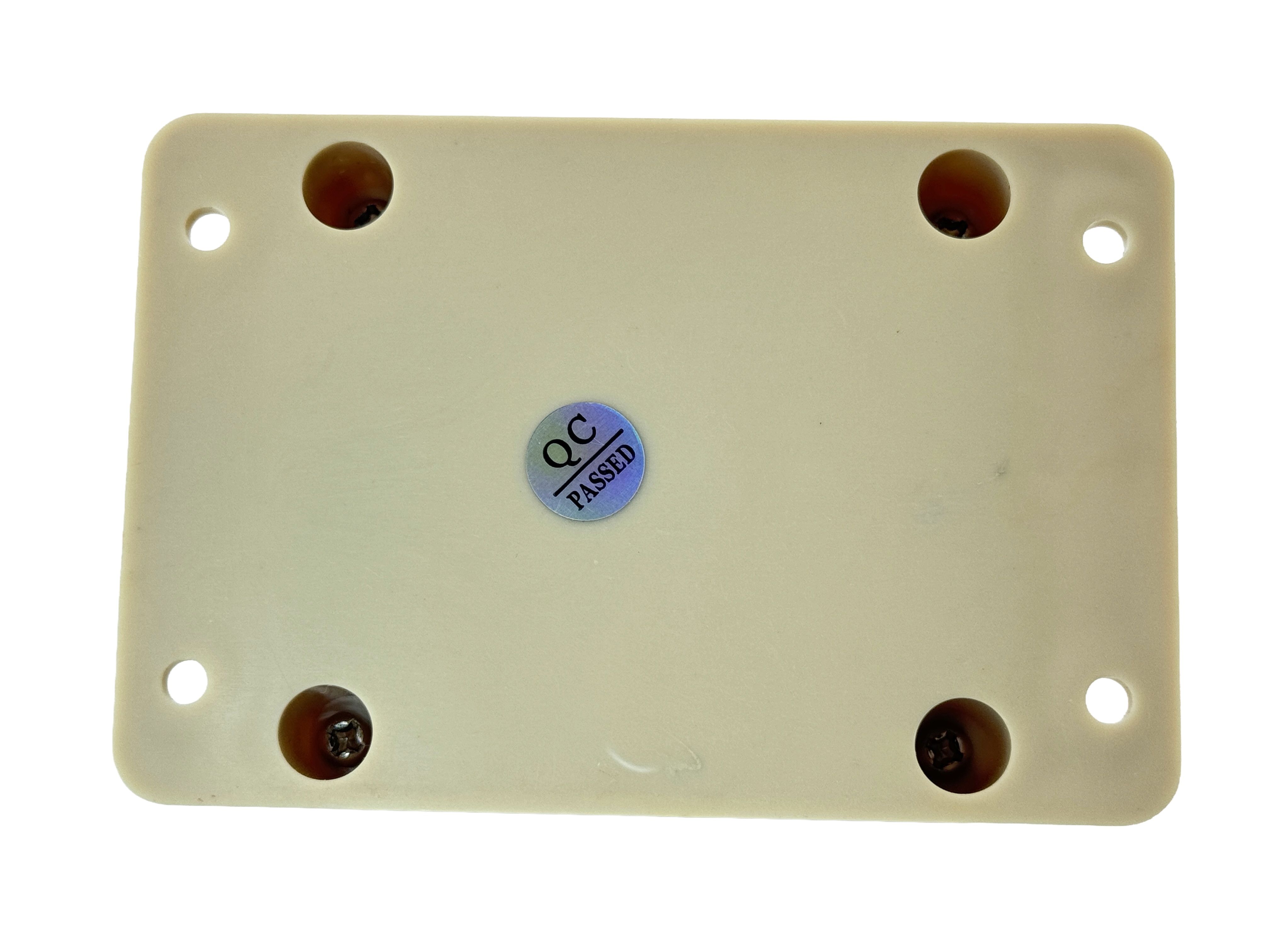

Dimmer 12VDC Low Voltage. Use this controller to stepless dim your low voltage devices. Up to 8 amps@12VDC / 96 Maximum watts. Metal enclosure with (4) mounting holes. Perfect for any low voltage dimming project. This dimmer for 12 volt low voltage devices such as flexible strips, 12 VDC bulbs. Works good in rv's, campers and planes. The mounting hole diameter approximately .155".The hole to hole spacing is approximately 1.50". The height including the knob is approximately 2". The width of the box is approximately 2.3". The length is approximately 2.8" including the screw down terminal. Working temperature: -20-60 ℃. Output: 1 channel. Static power consumption: <1 W. There is a electronic printed circuit board inside that controls the dimming function. You cannot take resistance reading due to the electronic circuitry. Use with 67452 and 94350 to use with 65987 power supply and low voltage LED tube light or any low voltage 12 VDC load less than 8 amps. When using 67452 and/or 94350 with 65987 the wire with the dashed line will be +12 VDC for both 67452 and/or 94350. CE and Rohs.
