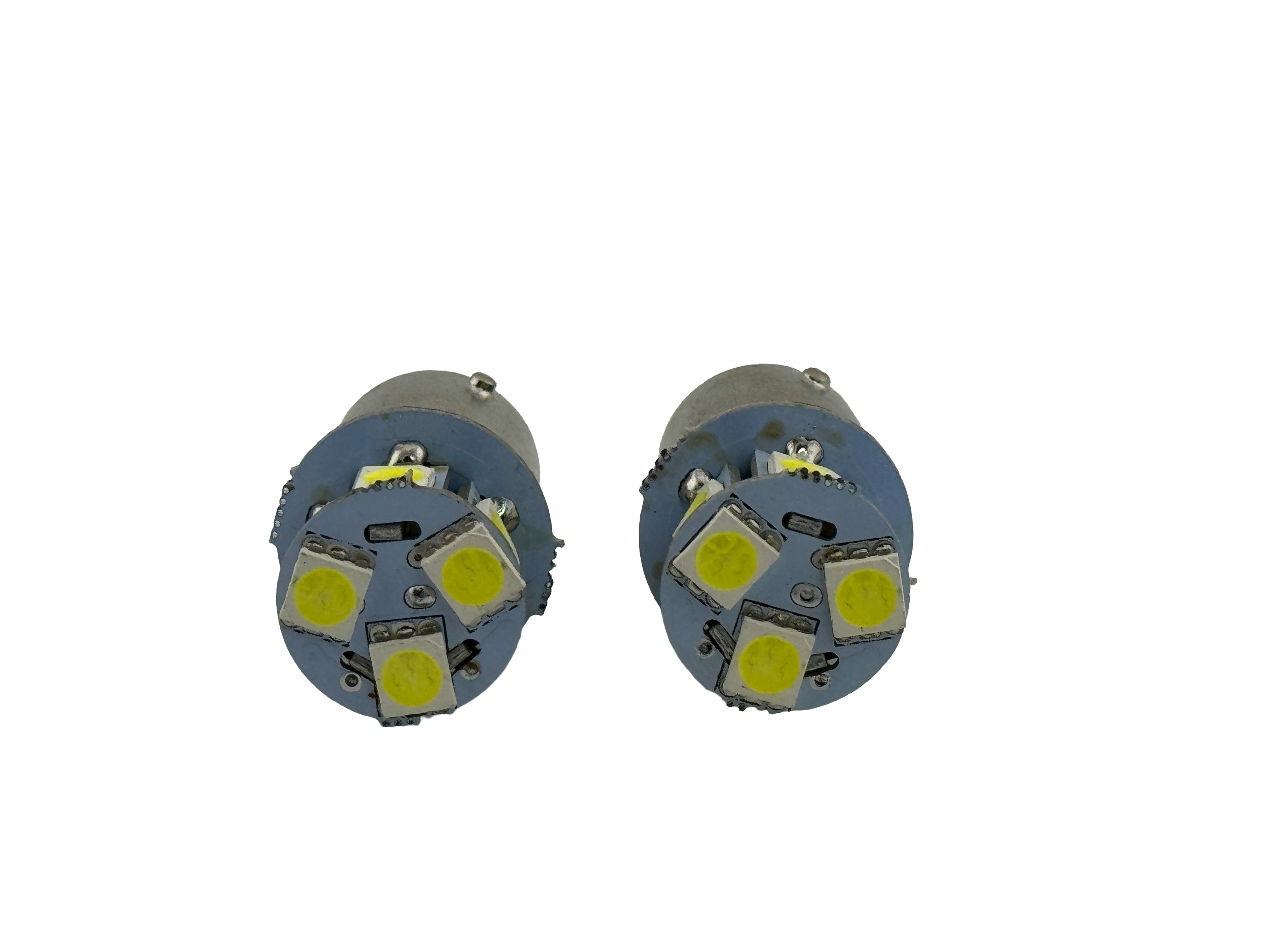

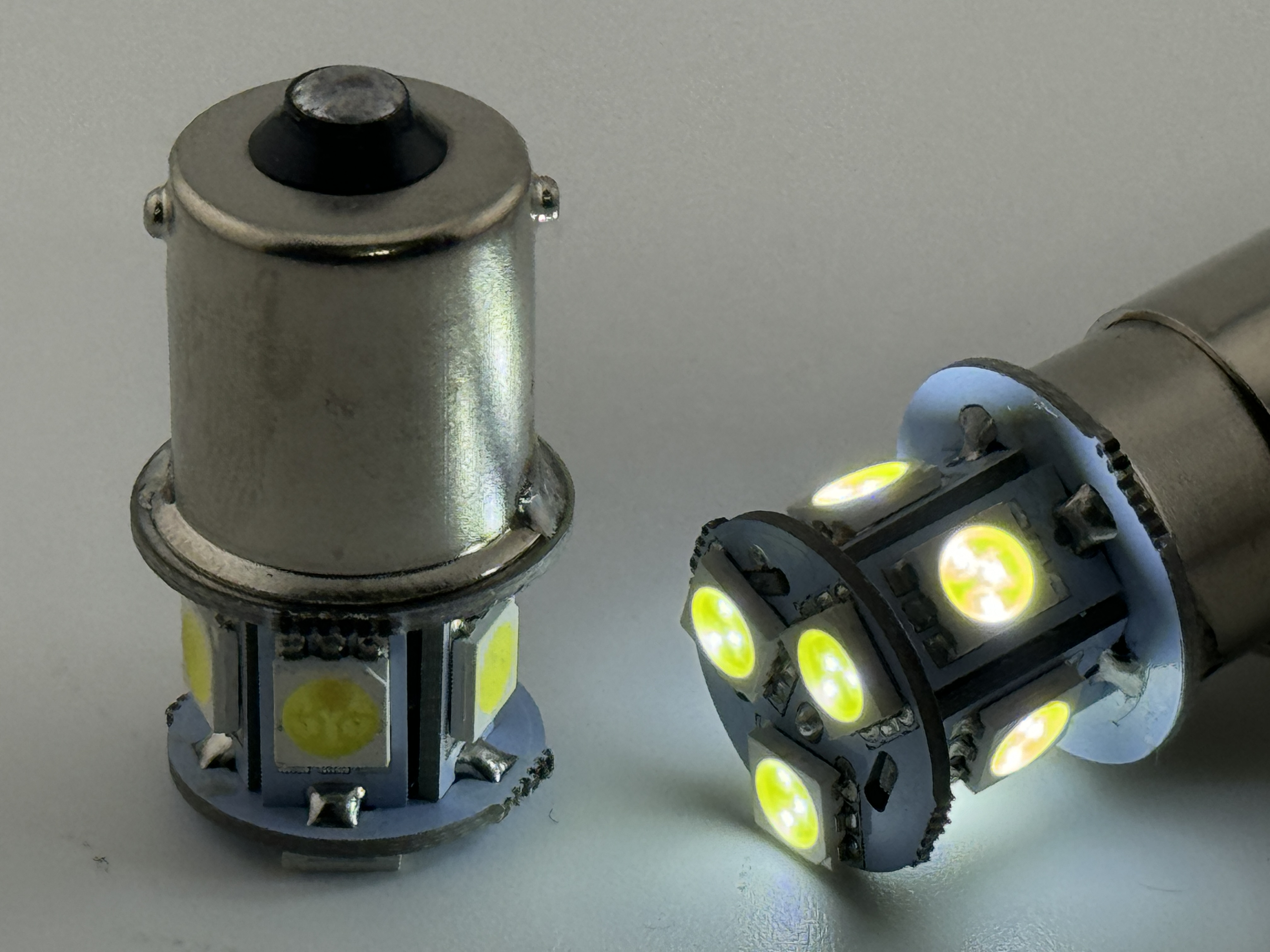

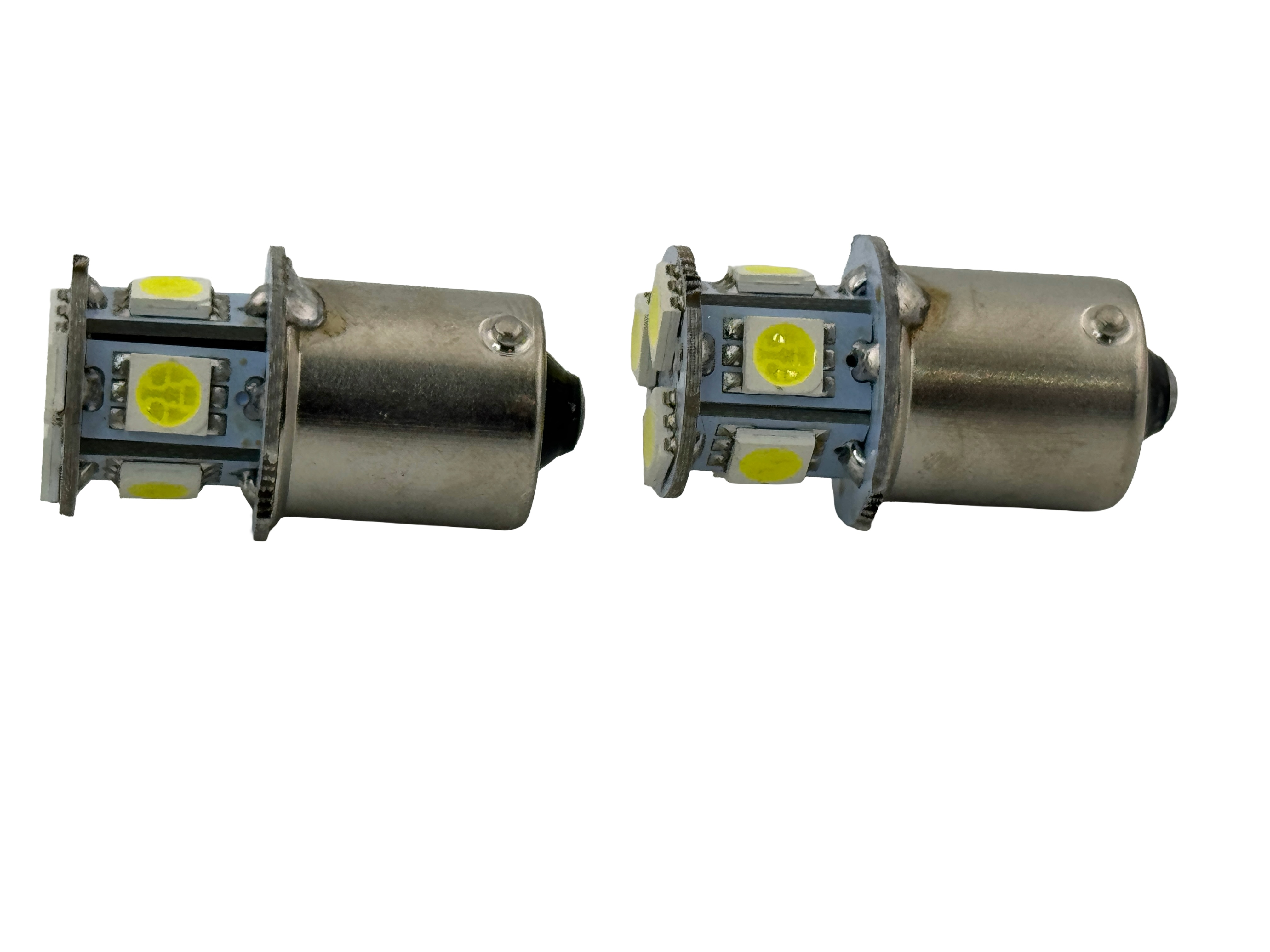

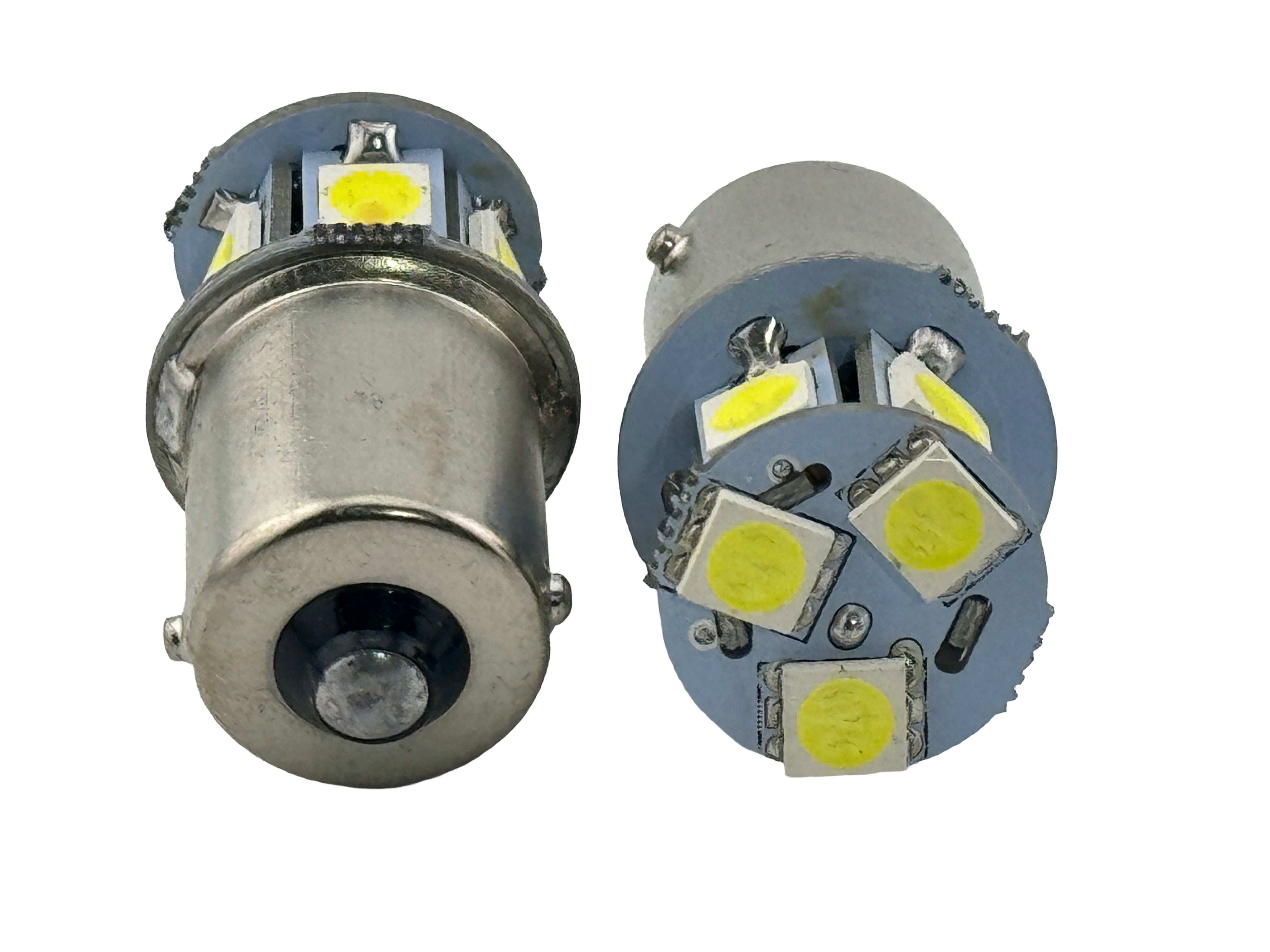

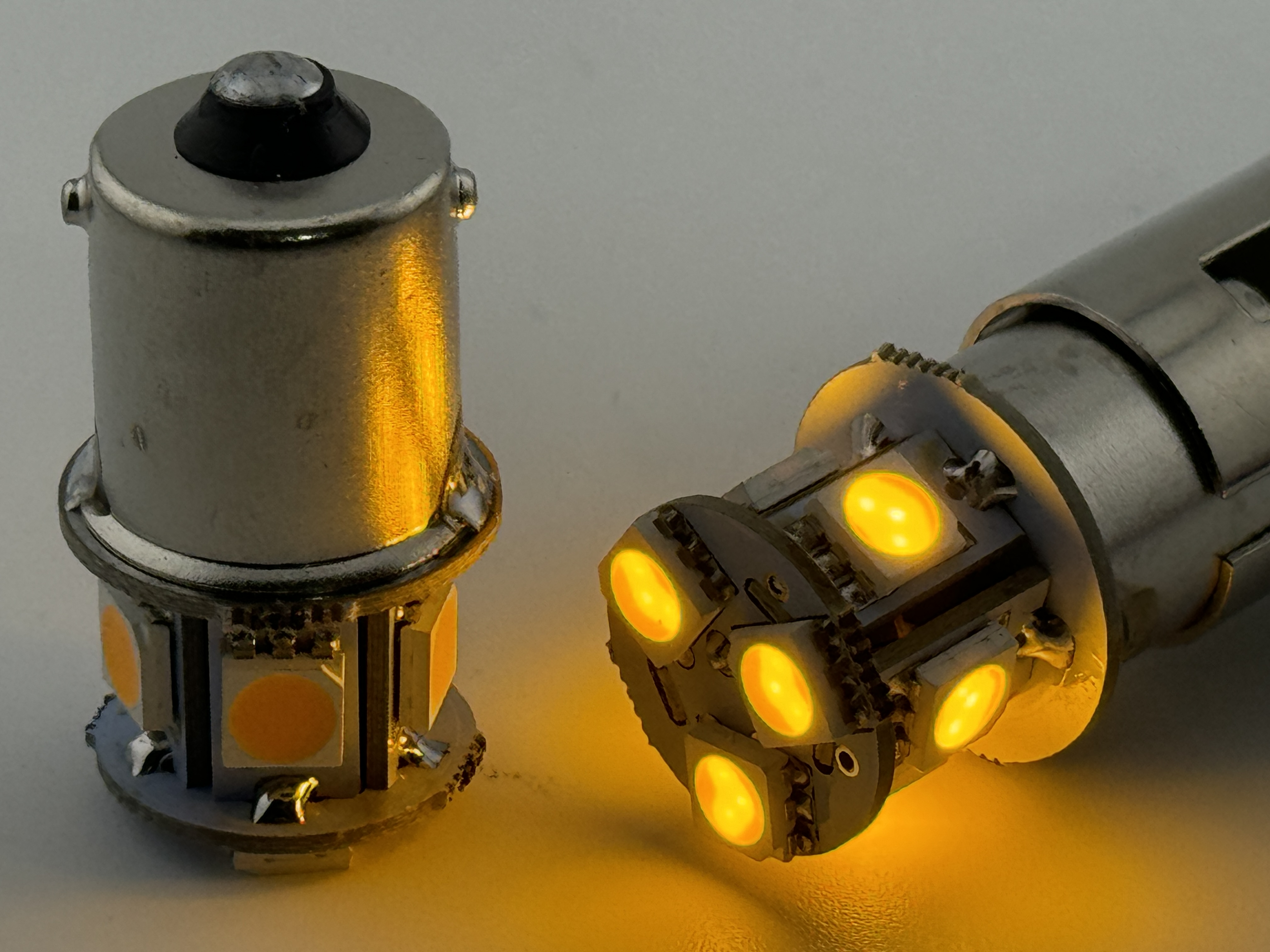

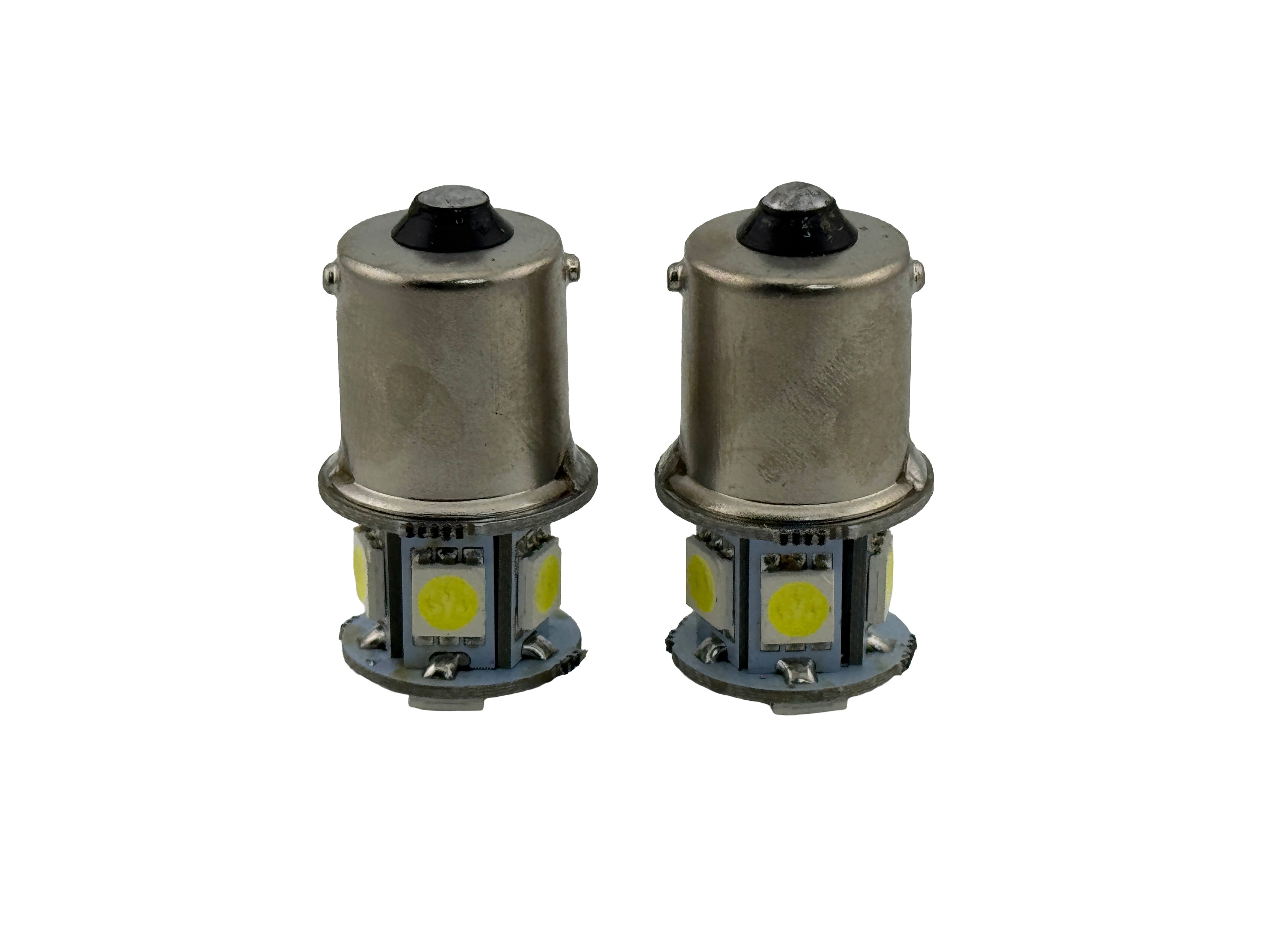

Operates 24 volts AC or 24 Volts DC. 8 qty 5050 LED's per Bulb, works either positive ground or negative ground, there is no polarity for this bulb. Up to 150 Lumen output forward firing. Up to 70 Lumen output. Uses up to 1.6 Watts. 360 Degree illumination or viewing angle. The base is BA15S single contact. The base is 15mm diameter. The bayonets are even. Operates only 24 Volts AC. White 6000K, Green, Blue, Red and Yellow. Long life up to 30,000 hours. This bulb is not dimmable. Comparable up to a 15 Watt to 20 Watt incandescent bulb. Starts to light around 12 Volts. The yellow color is polarity sensitive 24VDC and only works in negative ground. The maximum voltage is 28.5 volts. CE and Rohs.
| |
