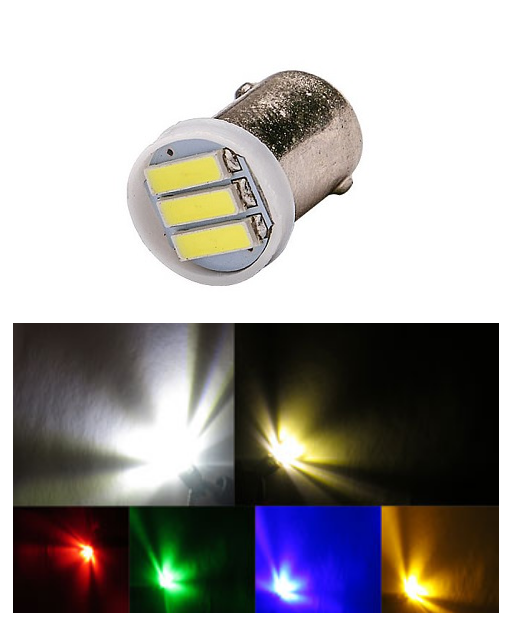

The BA9S led bulb is designed to operate at 6 volt ac or dc for both positive ground and negative ground vehicles. Small outline to match the outline of a 51 bulb. .7 inches long by .46 inches wide at the plastic ring. The base is .39" wide. Up to 135 Lumen output. The led's are small 7020 smd so they are very low profile. The life is up to 30,000 hours. The bulb is comparable to a 4 to 10 watt halogen light bulb. The viewing angle of the 7020 LED's is 120 degrees. Available in White 6000K, Warm White 3000K, Red, Green, Blue and Yellow/Amber. CE and Rohs listed. These led's are 80% energy savings really helps the low power generator provide power. This led bulb is dim-able using a dimmer switch or variable voltage supply. These led light bulbs work great for instrument panels using the different colors. Since led's generate their own color no plastic colored caps or painted light bulbs needed. Uses .077A at 6.8 volts. Warm white 3000K is a good choice to emulate the original color of a incandescent bulb. The White 6000K is about 5% brighter than the Warm White 3000K if your gauges are dim and hard to illuminate.
Compatible with the following:
GE 55
Stanley A61A
Old 6V Jeep
636V3
287 2W
988 3W
