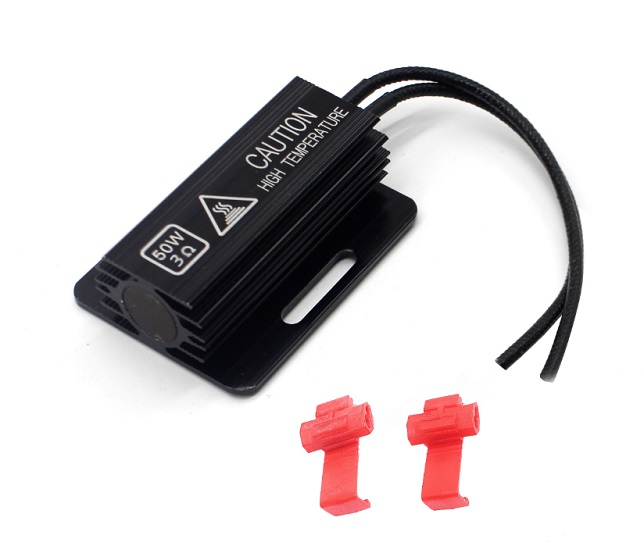

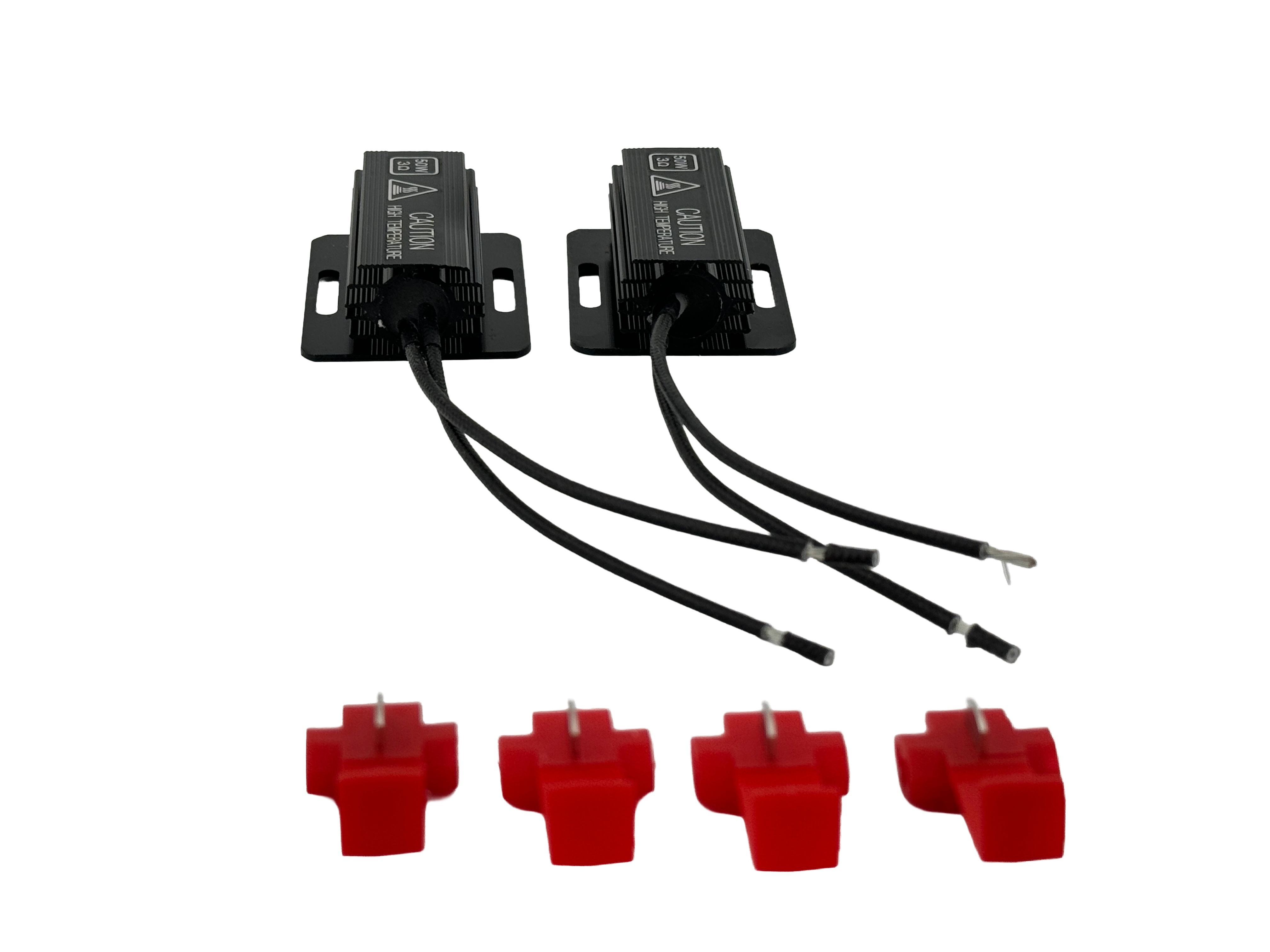

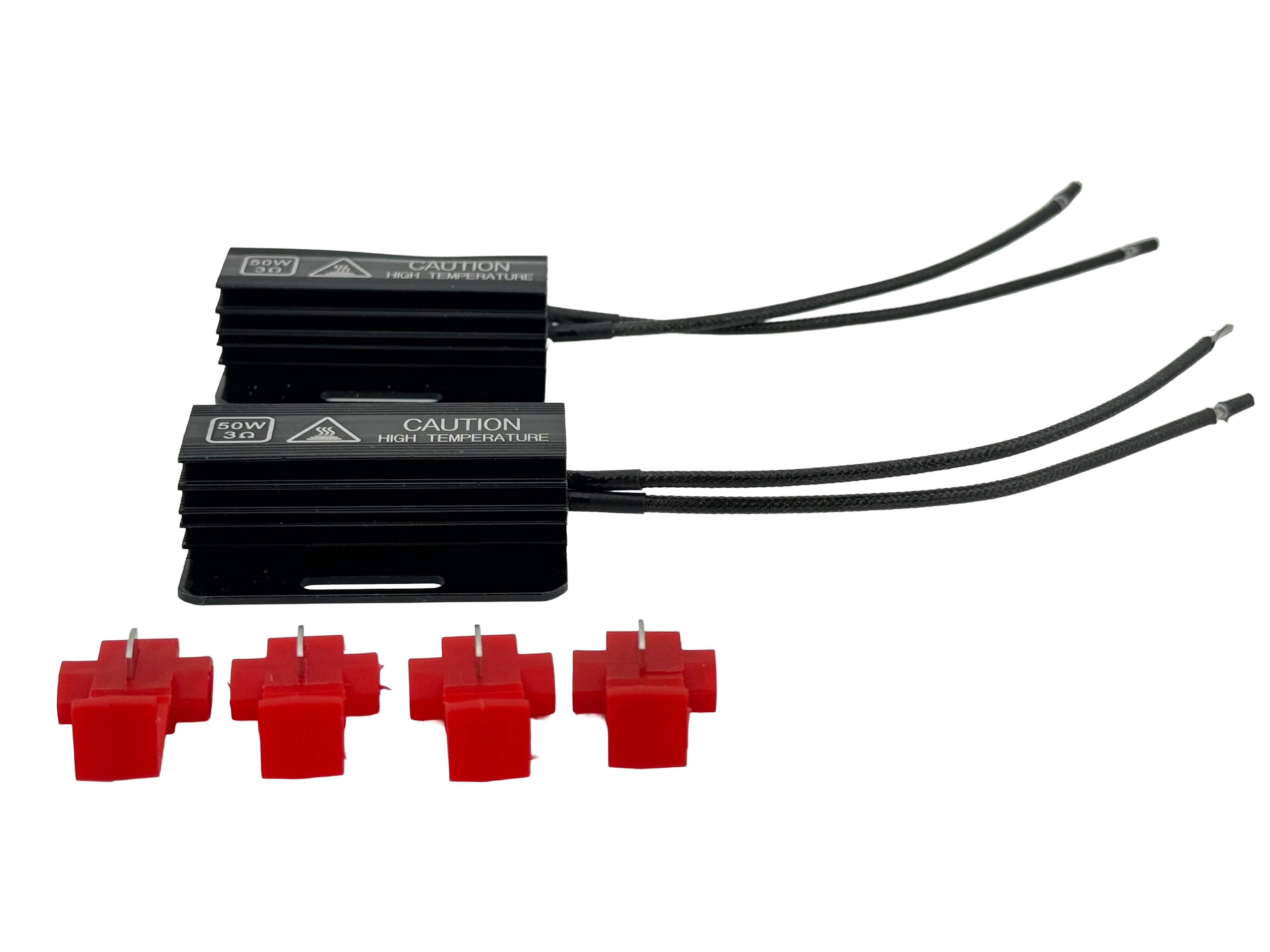

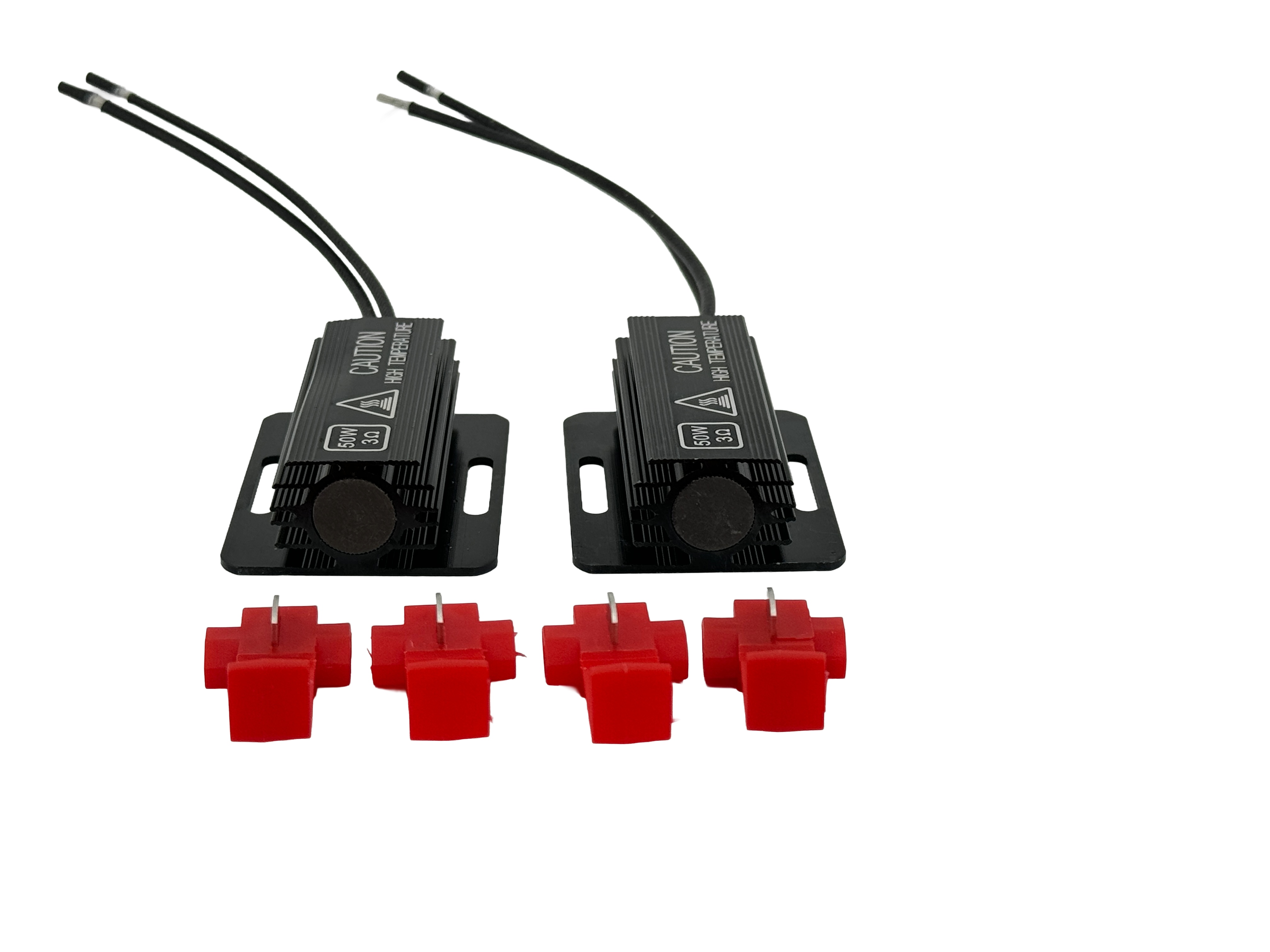

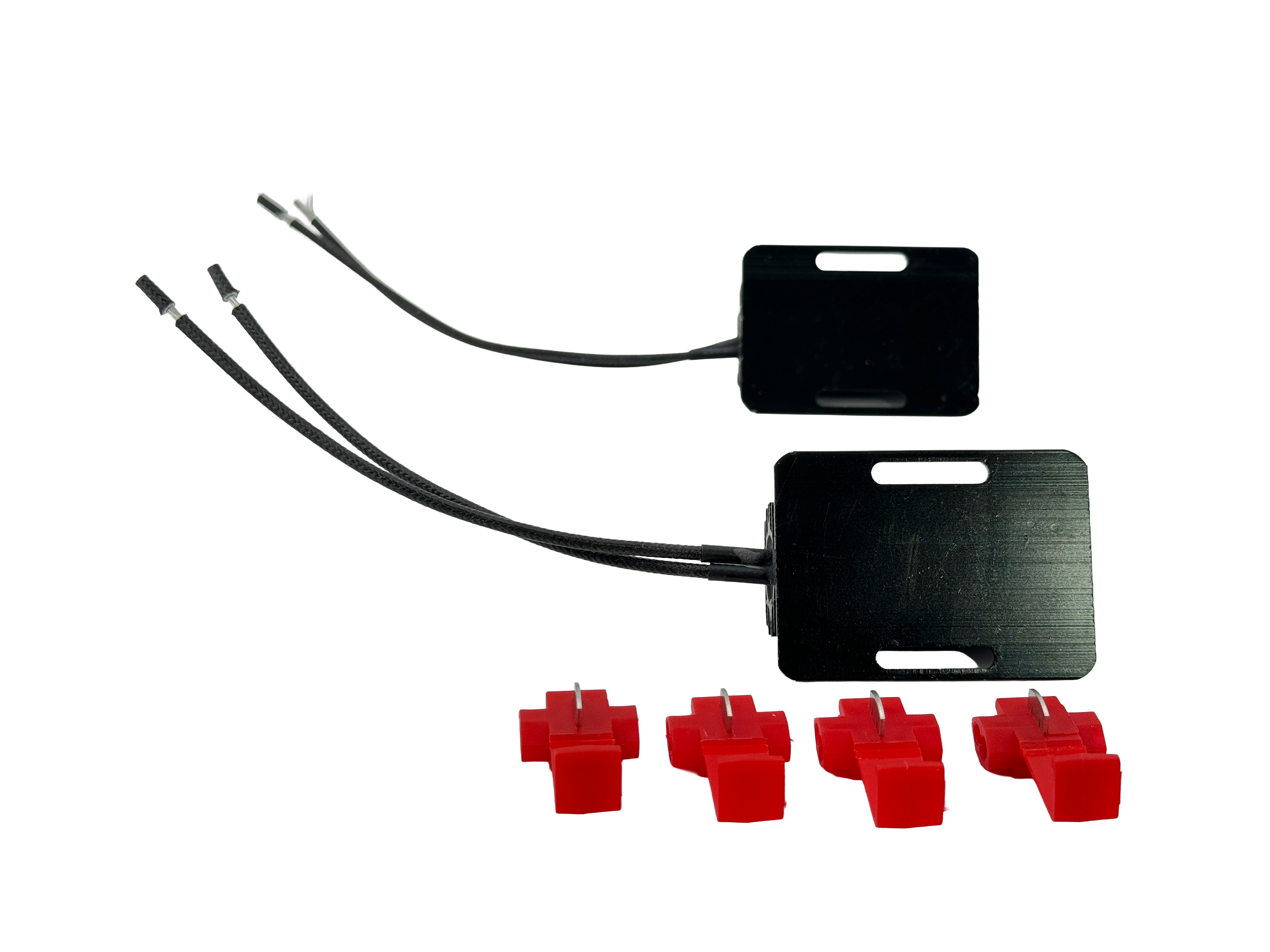

3 Ohm 50 Watt Load Equalizer

Use only two 3 Ohm 50 Watt Load Equalizers for your vehicle for the left and right side. Stops led light hyper-flashing and fixes CAN bus errors. Operates 6 Volt or 12 Volt positive ground or negative ground. The load equalizer can handle up to 4 Amps either 6 Volt or 12 Volt positive ground or negative ground. Since the resistor body is larger it runs cooler so load equalizer will last longer. The wire is 18 AWG high temperature resistant wires. Comes with two insulation displacement connectors so you can crimp these on to your existing wiring. Please install in parallel and do you cut your vehicle wires. Since the 3 Ohm 50 Watt is designed to install on the left or right side you only use two load equalizers instead of four. The load equalizer body is made of anodized aluminum. Please make sure to mount to metal surface since the body of the load equalizer gets hot. After installation to make sure the load equalizers are installed properly they should get warm or hot on the side the turn signal is activated. Comes with installation instructions. The wire length is about 4.5". The operating temperature is approximately 100 degree Celsius. The load equalizer body length is 2.16". The load equalizer body height is 0.72". The load equalizer body width is 1.57". The load equalizer body screw mounting slot width is 0.13". The load equalizer body screw center to center slot is 1.30". The load equalizer body screw mounting slot length is 0.78". CE.
