3 3528 SMD Waterproof LED Module 12VDC Dimmable NCNR product 69369
Product is Non-Cancelable, Non-Returnable
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

3 3528 SMD Waterproof LED Module 12VDC Dimmable NCNR

Product Code: 69369

USD Price: 0.37
spacer   Volume Discount Percentage   spacer
 Buy 2 or more and save 2.00%
 Buy 4 or more and save 3.00%
 Buy 6 or more and save 4.00%
 Buy 8 or more and save 5.00%
 Buy 10 or more and save 6.00%
 Buy 25 or more and save 7.00%
 Buy 100 or more and save 8.00%

1184 available

Qty: Add To Cart

Buy Now
Add To Saved Cart
Warranty: 3 Months

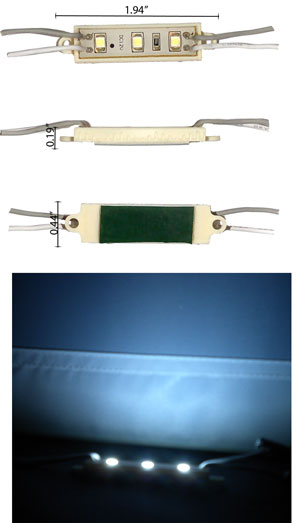

3 3528 SMD LEDs Water resistant module. Input: 12VDC. Great for stair cases and interior automobile decorative lighting. Comes with an adhesive backing and 2 mounting holes. Output 0.036A @ 12VDC. Up to 27 lumen output per module. 1.94" X 0.44" X 0.19" Available in white only. These lights led's are created for long life up to 30,000 hours. The viewing angle is 120 degrees. Comparable to a 4 to 9 Watt incandescent. There are 20 in a string but the modules will be sold 1 or more depending on how many you order. This item is a Non Cancelable, Non Returnable NCNR item. Each module has mounting holes .121" in diameter and spaced approximately 1.75" apart. Dimmable range from about 7.90 Volts to 13.8 Volts. Please connect ground to the white wire and plus 8-13.8 Volts to the gray wire. You can connect power to the wires that are on either side of the module. Comes 20 per string, but we will cut, test and send how many you need for your order. CE and Rohs.
